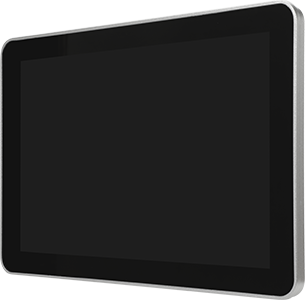

Q6101/Q6133 Android Industrial All-in-one Panel PC

Product Introduction

Q6101/Q6133 10.1/13.3 inch Android Industrial All-in-one Panel PC with high performance processor RK3568 and Android 11 OS, is a highly stable intelligent industrial control device. The device support 3G/4G cellular network. The city service and commercial APPs can be directly run in the Android OS to provide convenient interactive services for end users. There are rich peripheral interfaces which can be widely used in city services and new retail fields, the device can meet the needs of IoT fields, such as food-pickup lockers, coffee machines, face payment vending machines, express lockers, robots, vehicle control, medical and other industry application needs.

Tech Specs Downloads Ordering

Model	Q6101	Q6133

Hardware
CPU	RK3568, highest frequency: 2.0GHz; 64 bits	RK3568, highest frequency: 2.0GHz; 64 bits
NPU	0.8TPOS	0.8TPOS
Memory	2GB	2GB
Built-in storage	8GB	8GB
Cellular Interface
Modem	1 LTE CAT4	1 LTE CAT4
Number of Antennas	1	1
SIM	1 x Mini SIM (2FF)	1 x Mini SIM (2FF)
Wireless Interface
Standards	802.11b/g/n	802.11b/g/n
Frequency Bands	2.4 GHz	2.4 GHz
Speed	150Mbps	150Mbps
Antennas	1 (WiFi and Bluetooth)	1 (WiFi and Bluetooth)
Bluetooth	BT4.0	BT4.0
GNSS Interface
Number of Antennas	N/A	N/A

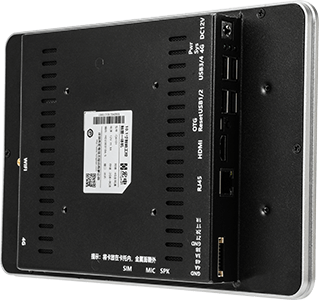

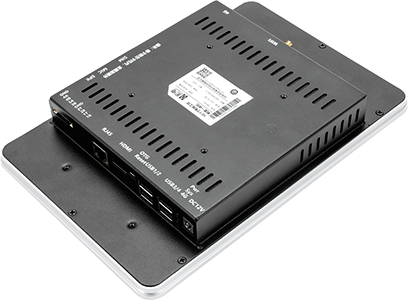

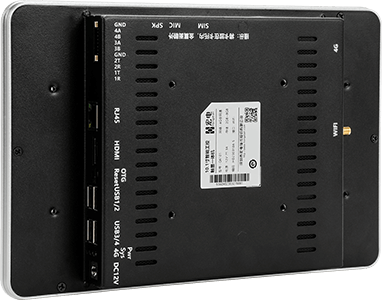

Peripheral Interface
Serial	2 x RS-232 + 2 x RS-485 serial port,10-pin 2 mm female socket	2 x RS-232, DB9 male connector ;
Ethernet	1x 10/100 Mbps, Ethernet	1x 10/100 Mbps, Ethernet
USB	USB 2.0 x 4,OTG x1	USB 2.0 x 4,OTG x1
Display	HDMI 2.0 x 1	HDMI 2.0 x 1
Display Performance
Liquid Crystal	LED DisplayScreen	LED DisplayScreen
Screen Size	10.1 inch	13.3 inch
Resolution	1280×800	1920x1080
Brightness	250cd/m2	250cd/m2
Contact Performance
Transmittance	≥85%	≥85%
Glass Material	Tempering glass	Tempering glass
Max Touch Points	Simultaneous 10-Point Touch	Simultaneous 10-Point Touch
Software
Operating System	Android 11/Linux	Android 11/Linux
Video code	H.265/H.264/VP9 4K@60fpsHD video decoding H.265/H.264/VP9 1080P@100fpsHD videoencoding	H.265/H.264/VP9 4K@60fpsHD video decoding H.265/H.264/VP9 1080P@100fpsHD videoencoding
Image processing	BMP, JPG, PNG, GIF	BMP, JPG, PNG, GIF
Power Supply and Consumption
Connector	DC socket	DC socket
Voltage Input	12V DC	12V DC
Power Consumption	Less than 15 W (only system)	Less than 18 W (only system)
Others
Reset Button	Yes	Yes
LED Indicators	3 indicators for PWR, SYS, 4G	3 indicators for PWR, SYS, 4G
Hardware Watchdog	Yes	Yes
Physical Characteristics
Ingress Protection	IP30	IP30
Housing & Weight	Metal	Metal
Dimension	256×170×36.3 mm	325.2×196.77×39.4mm
Installations	Wall-mounting	Wall-mounting
Operating Temperature	-20 ~ +70 °C	-20 ~ +70 °C
Storage Temperature	-40 ~ +85 °C	-40 ~ +85 °C
Relative Humidity	5 ~ 95%	5 ~ 95%
Certifications (*In progress)

File Name

Hongdian Specification-Q6133 4G Android Panel PC

Download

Hongdian Datasheet-Q6101Q6133 4G Android Panel PC-2023V1.1

Download

Product	Model	4G modem	Interface					Region
			WLAN	RJ45	RS232	RS485	USB
Q6101	Q6101-EU	LTE-FDD:B1/B3/B5/B7/B8/B20 LTE-TDD:B38/B40/B41 UMTS/HSDPA/HSUPA/HSPA+:B1/B5/B8 GSM/GPRS/EDGE:900/1800MHz	1	1	2	2	4×USB 2.0 1×OTG	Europe, Asia, Africa



	Q6101-AFX	LTE-FDD:B2/B4/B5/B12/B13/B14/B66/B71 WCDMA:B2/B4/B5	1	1	2	2	4×USB 2.0 1×OTG	North America

	Q6101-AUX	LTE-FDD:B1/B2①/B3/B4/B5/B7/B8/B28 LTE-TDD:B40 WCDMA:B2/B3/B5/B8	1	1	2	2	4×USB 2.0 1×OTG	South America, Australia, Africa



	Q6101-JP	LTE-FDD:B1/3/8/18/19/26	1	1	2	2	4×USB 2.0 1×OTG	Japan

Q6133	Q6133-EU	LTE-FDD:B1/B3/B5/B7/B8/B20 LTE-TDD:B38/B40/B41 UMTS/HSDPA/HSUPA/HSPA+:B1/B5/B8 GSM/GPRS/EDGE:900/1800MHz	1	1	2	-	4×USB 2.0 1×OTG	Europe, Asia, Africa


	Q6133-AFX	LTE-FDD:B2/B4/B5/B12/B13/B14/B66/B71 WCDMA:B2/B4/B5	1	1	2	-	4×USB 2.0 1×OTG	North America


	Q6133-AUX	LTE-FDD:B1/B2①/B3/B4/B5/B7/B8/B28 LTE-TDD:B40 WCDMA:B2/B3/B5/B8	1	1	2	-	4×USB 2.0 1×OTG	South America, Australia, Africa



	Q6133-JP	LTE-FDD:B1/3/8/18/19/26	1	1	2	-	4×USB 2.0 1×OTG	Japan
