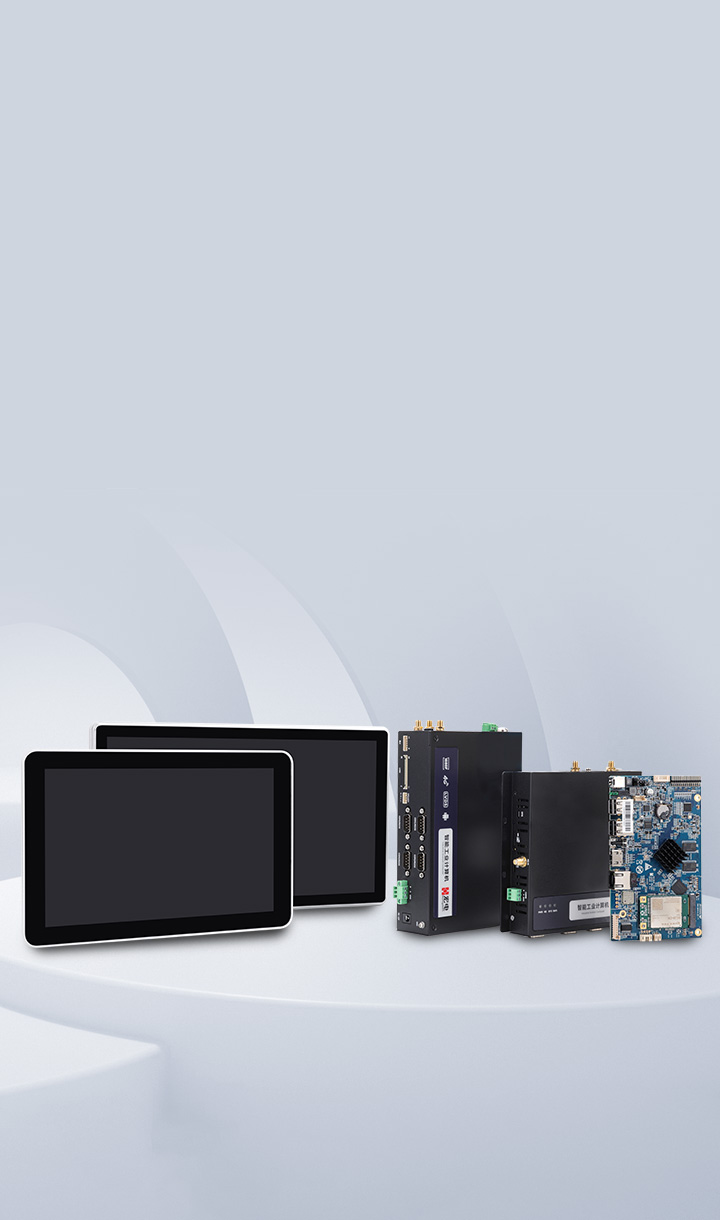

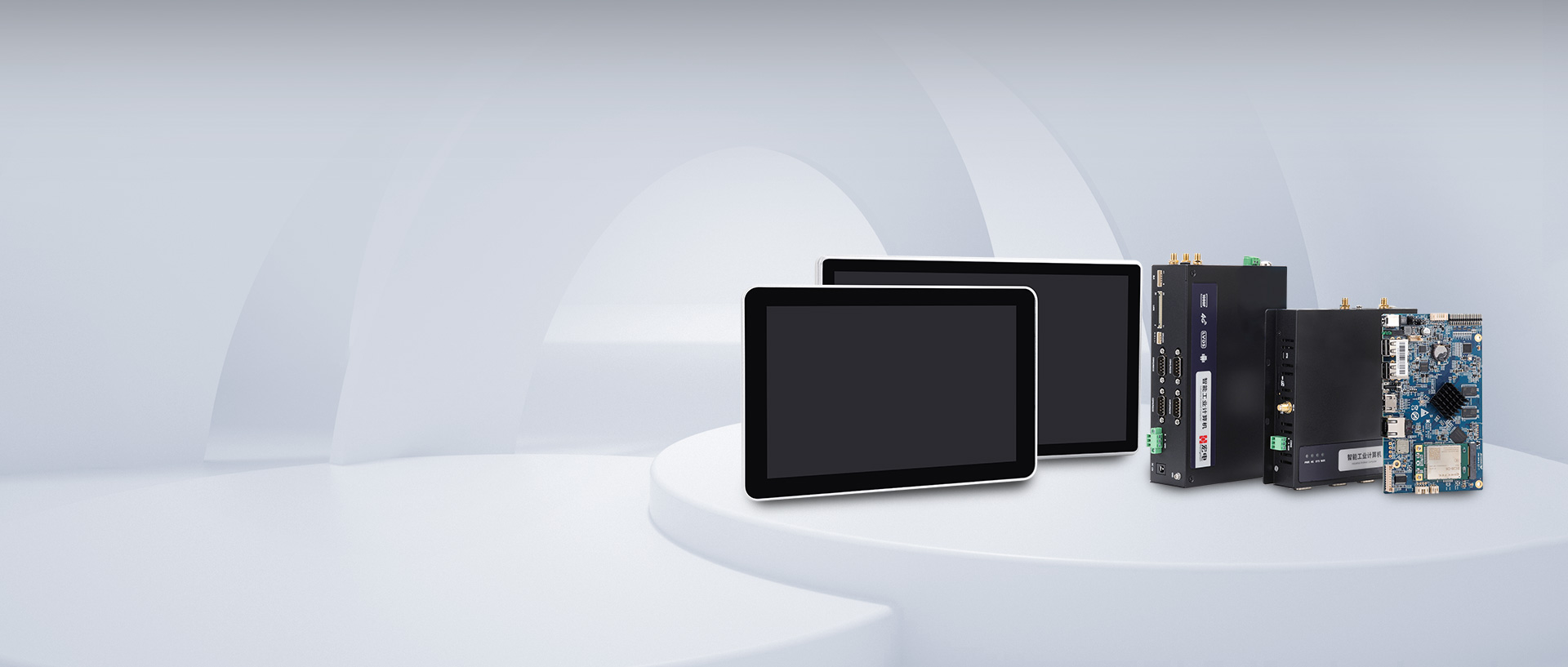

Embedded Box

Hongdian embedded box series integrates IoT and AI technology and provides hardware support such as facial payment and machine vision applications. It has edge computing and voice interaction capabilities and carries AI artificial intelligence motherboard supporting big data operation, face recognition algorithm, etc. It can be used in vending machines, intelligent express cabinets, human-computer interaction large game terminal, unmanned settlement platform, interactive advertising machine and other kinds of self-service terminals.

Product Value

Human-computer interaction

Touch screen interaction, high-definition display and voice output

AI intelligent algorithm

AI face recognition, AI cargo recognition

Android OS

An easy-to-develop environment, excellent program compatibility, and rapid development

Intelligent control

Control digital door locks, cameras, payment devices, motors, etc

Product Advantages

High-performance ARM motherboard architecture

Lightweight AI algorithm

Powerful video codec capability

Industrial-grade screen

Embedded Box Series

H9380P 4G Embedded Box

Rk3399 chipset inside
4K 10bit@60fps video decoding
Rich interfaces for multimedia applications
Android OS/ Linux

LEARN MORE

H9380F 4G Embedded Box

Rk3568 chipest inside
Android 11 system
Industrial design for stable working performance
Rich interfaces for multimedia applications

LEARN MORE

H9360 Embedded Industrial Computer

Rk3568 chipset inside
2GB DDR + 8G EMMC
2*RS232 & 2*RS485
Android 11/Linux

LEARN MORE

Q6101/Q6133 Android Industrial All-in-one Panel PC

Lightweight algorithm, supporting INT8, INT16, FP16 efficient computing
Support local network management, LAN/WAN can be online at the same time
Super resolution, excellent color and dynamic range
Multi-touch, ultimate interaction

LEARN MORE

Application

Smart Vending Solution

// Smart Retail

Digital Signage Solution

// Smart Retail

Self-service Check Out Machines

// Smart Retail

Gaming & Lottery

// Smart Retail

Smart Vending Solution

// Smart Retail

Digital Signage Solution

// Smart Retail

Self-service Check Out Machines

// Smart Retail

Gaming & Lottery

// Smart Retail

Performance Comparison Table

Product
Android Industrial Computer	H9380P	H9380F	H9360	Q6101	Q6133
Hardware
CPU	RK3399, highest frequency: 1.8GHz; 64 bits	RK3568, highest frequency: 2.0GHz; 64 bits	RK3568, highest frequency: 2.0GHz; 64 bits	RK3568, highest frequency: 2.0GHz; 64 bits	RK3568, highest frequency: 2.0GHz; 64 bits
NPU	N/A	0.8TPOS	0.8TPOS	0.8TPOS	0.8TPOS
Memory	2GB	2GB	2GB	2GB	2GB
Built-in storage	16GB	8GB	8GB	8GB	8GB

Cellular Interface
Modem	1 LTE CAT4	1 LTE CAT4	1 LTE CAT4	1 LTE CAT4	1 LTE CAT4
Number of Antennas	1	1	1	1	1
SIM	1 x Mini SIM (2FF)	1 x Mini SIM (2FF)	1 x Mini SIM (2FF)	1 x Mini SIM (2FF)	1 x Mini SIM (2FF)
Wireless Interface
Standards	802.11b/g/n	802.11b/g/n	802.11b/g/n	802.11b/g/n	802.11b/g/n
Frequency Bands	2.4 GHz	2.4 GHz	2.4 GHz	2.4 GHz	2.4 GHz
Speed	150Mbps	150Mbps	150Mbps	150Mbps	150Mbps
Antennas	1 (WiFi and Bluetooth)	1 (WiFi and Bluetooth)	1 (WiFi and Bluetooth)	1 (WiFi and Bluetooth)	1 (WiFi and Bluetooth)
Bluetooth	BT4.0	BT4.0	BT4.0	BT4.0	BT4.0
GNSS Interface
Number of Antennas	N/A	1	N/A	N/A	N/A
Peripheral Interface
Serial	3 x RS-232 (1 RS232 port can be configured as a RS485 port),DB9 male connector ; 1 x RS-485 serial port, 3-pin 3.5 mm female socket	4 x RS-232 (2 RS232 port can be configured as a RS485 port),DB9 male connector ; 1 x RS-485 serial port, 3-pin 3.5 mm female socket	2 x RS-232 + 2 x RS-485 serial port, 10-pin 2 mm female socket	2 x RS-232 + 2 x RS-485 serial port, 10-pin 2 mm female socket	2 x RS-232, DB9 male connector ;
Ethernet	1x 10/100/1000 Mbps, Gigabit Ethernet	1 x 10/100/1000 Mbps, Gigabit Ethernet	1x 10/100 Mbps, Ethernet	1x 10/100 Mbps, Ethernet	1x 10/100 Mbps, Ethernet
USB	USB 2.0 x 4, USB 3.0 x 2, OTG x1	USB 2.0 x 6, OTG x1	USB 2.0 x 5, OTG x1	USB 2.0 x 4, OTG x1	USB 2.0 x 4, OTG x1
Display	HDMI 2.0 x 1	HDMI 2.0 x 1, LVDS x1	HDMI 2.0 x 1, LVDS x1 , MIPI x1	HDMI 2.0 x 1	HDMI 2.0 x 1
Display Performance
Liquid Crystal	N/A	N/A	N/A	LED Display Screen	LED Display Screen
Screen Size				10.1 inch	13.3 inch
Resolution				1280×800	1920x1080
Brightness				250cd/m2	250cd/m2
Contact Performance
Transmittance	N/A	N/A	N/A	≥85%	≥85%
Glass Material				Tempering glass	Tempering glass
Max Touch Points				Simultaneous 10-Point Touch	Simultaneous 10-Point Touch
Software
Operating System	Android 7.1.2/Linux	Android 11/Linux	Android 11/Linux	Android 11/Linux	Android 11/Linux
Video code	H.265/H.264/VP9 4K@60fpsHD video decoding	H.265/H.264/VP9 4K@60fpsHD video decoding H.265/H.264/VP9 1080P@100fpsHD videoencoding	H.265/H.264/VP9 4K@60fpsHD video decoding H.265/H.264/VP9 1080P@100fpsHD videoencoding	H.265/H.264/VP9 4K@60fpsHD video decoding H.265/H.264/VP9 1080P@100fpsHD videoencoding	H.265/H.264/VP9 4K@60fpsHD video decoding H.265/H.264/VP9 1080P@100fpsHD videoencoding
Image processing	BMP, JPG, PNG, GIF	BMP, JPG, PNG, GIF	BMP, JPG, PNG, GIF	BMP, JPG, PNG, GIF	BMP, JPG, PNG, GIF
Power Supply and Consumption
Connector	4 pin aviation connector	DC socket	DC socket	DC socket	DC socket
Voltage Input	12V DC	12V DC	12V DC	12V DC	12V DC
Power Consumption	Less than 10 W (only system)	Less than 10 W (only system)	Less than 10 W (only system)	Less than 15 W (only system)	Less than 18 W (only system)
Others
Reset Button	Yes	Yes	Yes	Yes	Yes
LED Indicators	4 indicators for PWR, SYS, 4G, WIFI	3 indicators for PWR, SYS, 4G	3 indicators for PWR, SYS, 4G	3 indicators for PWR, SYS, 4G	3 indicators for PWR, SYS, 4G
Hardware Watchdog	Yes	Yes	Yes	Yes	Yes
Physical Characteristics
Ingress Protection	IP30	IP30	N/A	IP30	IP30
Housing & Weight	Metal	Metal	N/A	Metal	Metal
Dimension	17015027mm	210×130×44.6mm	150*92.0mm	256×170×36.3 mm	325.2×196.77×39.4mm
Installations	Wall-mounting	Wall-mounting	Wall-mounting	Wall-mounting	Wall-mounting
Operating Temperature	-20 ~ +70 °C	-20 ~ +70 °C	-20 ~ +70 °C	-20 ~ +70 °C	-20 ~ +70 °C
Storage Temperature	-40 ~ +85 °C	-40 ~ +85 °C	-40 ~ +85 °C	-40 ~ +85 °C	-40 ~ +85 °C
Relative Humidity	5 ~ 95%	5 ~ 95%	5 ~ 95%	5 ~ 95%	5 ~ 95%
Certifications (*In progress)
