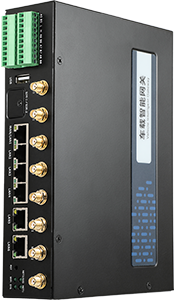

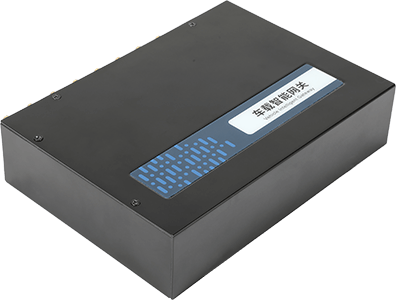

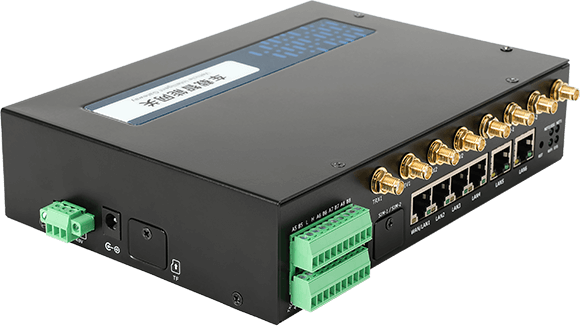

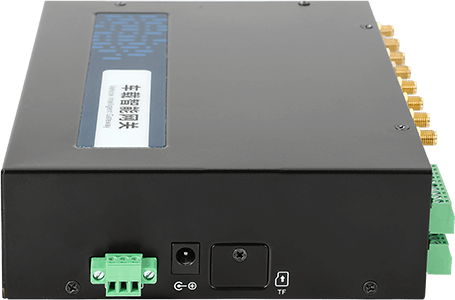

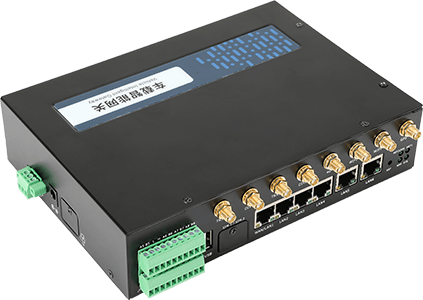

H3380 Vehicle Gateway

Vehicle Gateway

Support 5G Sub6, 5GLAN, RedCap
Support mainstream communication protocols such as Modbus TCP/RTU, MQTT,etc.
Support mainstream industrial protocols such as OPC, DLT645, DNP3.0, etc.
Widely used in vehicles and industrial sites

Product Introduction

H3380 vehicle gateway is a comprehensive product for vehicle-mounted applications. It supports 6-channel gigabit Ethernet, which is mainly used for on-board and industrial video transmission services. Equipped with 5G dual-mode, it supports dual-generation and collection and link load balancing, and fully meets the uplink bandwidth and stability requirements of audio and video services.

Tech Specs Downloads

Hardware
CPU	Qualcomm IPQ4019
Memory	512MB
Built-in storage	32MB+8GB eMMC
Cellular Interface
Modem	1 x 5G NR SA/NSA or 1 x LTE CAT4 & 1 x 5G NR SA/NSA
Number of Antennas	4 or 5
SIM	2 x Mini SIM (2FF)
Wireless Interface
Standards	802.11b/g/n/ac, AP or station modes
Frequency Bands	2.4 GHz & 5GHz
Speed	1167Mbps
Antennas	2
GNSS Interface
Number of Antennas	1

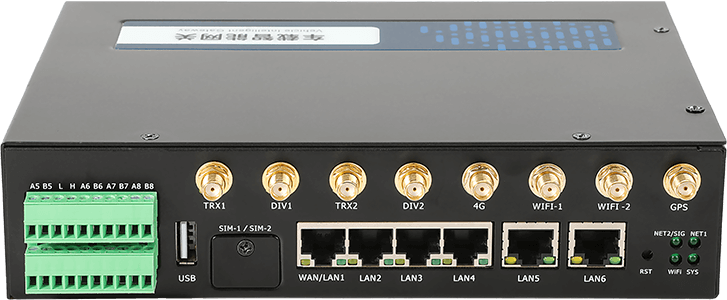

Peripheral Interface
Serial	2 x RS-232 serial port; 3-pin 3.5 mm female socket 6 x RS-485 serial port, 3-pin 3.5 mm female socket
Can	Optional
Ethernet	6 x 10/1000 Mbps, Gigabit Ethernet
USB	USB 2.0 x 1
TF Card	Optional
Display	N/A
Display Performance
Liquid Crystal	N/A
Screen Size
Resolution
Brightness
Contact Performance
Transmittance	N/A
Glass Material
Max Touch Points
Software
Operating System	Hongdian Router OS
Video code
Image processing
Power Supply and Consumption
Connector	3 pin aviation connector
Voltage Input	9 ~ 48V DC
Power Consumption	Less than 15 W
Others
Reset Button	Yes
LED Indicators	4 indicators for NET1,NET2/SIG,WIFI,SYS
Hardware Watchdog	Yes
Physical Characteristics
Ingress Protection	IP30
Housing & Weight	Metal
Dimension	220.0 x 142.0 x 47.0mm
Installations	Wall-mounting
Operating Temperature	-30 ~ +75 °C
Storage Temperature	-40 ~ +85 °C
Relative Humidity	<95%(no condensation)
Certifications (*In progress)

File Name

Hogdian Datasheet-H3380 Vehicle Gateway-2023V1.0
