Intelligent Controller

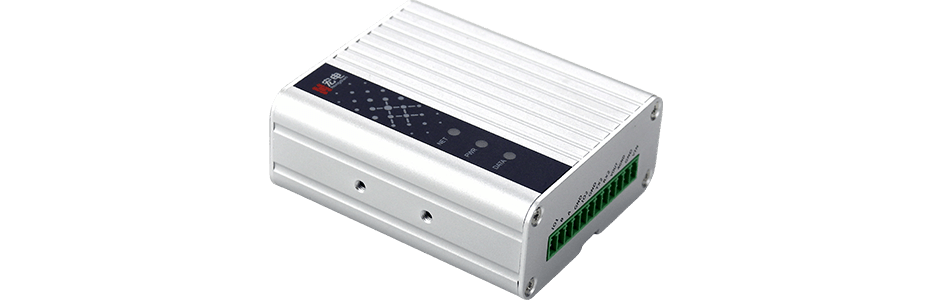

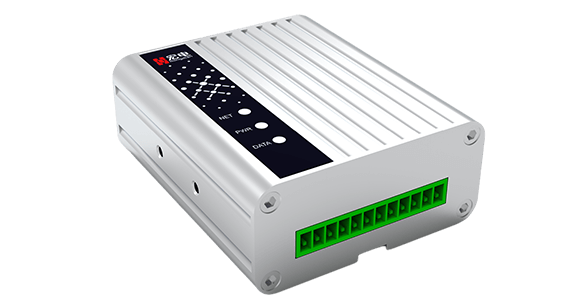

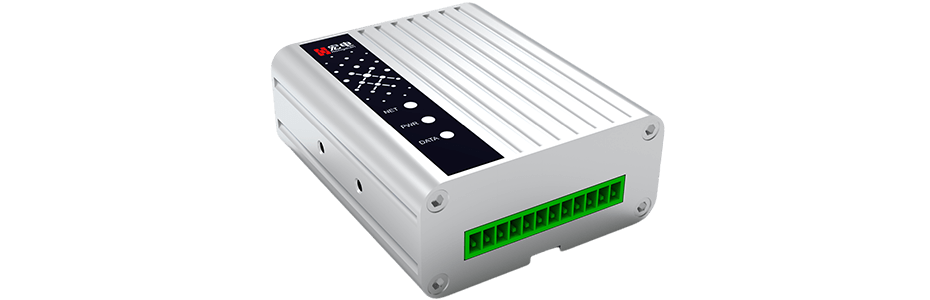

H6210 4G BLE Intelligent Controller
  • Support Bluetooth cat.1
  • Wide voltage input 5-36V
  • Support 0-10V analog output
  • Compact size
Product Introduction
H6210 BLE 4G intelligent controller supports custom protocol collection and control, docking various IoT platforms which can carry out device remote control, parameter control, short-distance communication, environmental status collection and other functions. It’s suitable for all kinds of traditional MCU market, logistics cold chain, large-scale warehousing, industrial manufacturing and other industries. It adopts the design of main and sub-boards, and the motherboard integrates Bluetooth short-range communication. It also supports a variety of custom development that various IoT applications can be quickly implemented.
Network
Cat.1 LTE FDD: B1/B3/B5/B8
TD LTE: B34/B39/B40/B41
Interface

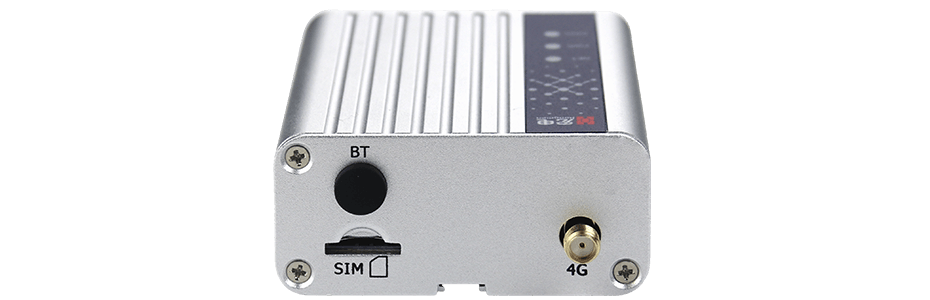

Antenna Interface SMA-K female SIM External Mircro physical card

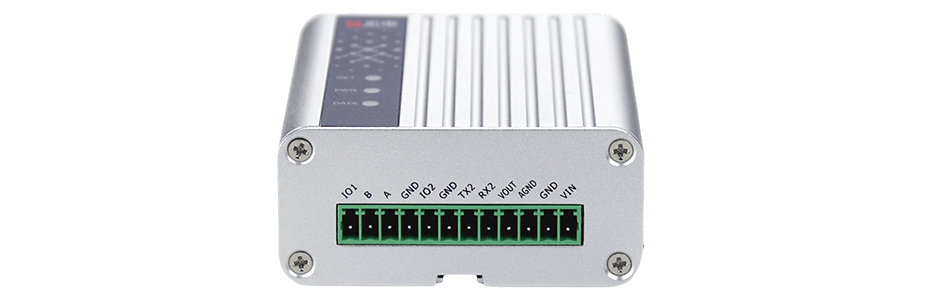

12pin External terminal 1*RS232
1*RS485
2*GPIO
1*AVOUT
18pin Internal terminal 1*SPI
1*TTL
1*5V 1*3.3V 1*1.8V
1*12C
Button Reset
Power supply
Operating voltage +5V~+36V DC
Power consumption
Standby Power Consumption Approx. 50mA@12V DC
Maximum Power Consumption Approx. 130mA@12V DC
Other
Weight Approx.160g
Size 77mm×65mm×30mm
Storage temperature -40~+85ºC
Operating temperature -25~+70ºC
Relative humidity ≤90%
File Name
Hongdian Datasheet-H6210 4G BLE Intelligent Controller-2023V1.0
