Intelligent Controller

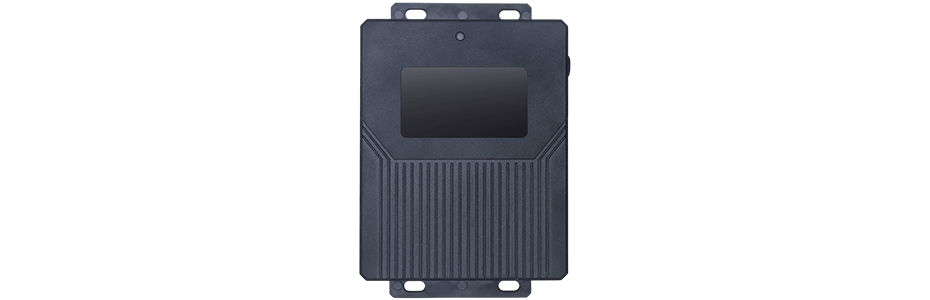

H6212 Intelligent Controller
  • Cortex-A7 architecture quad-core 1.3GHz processor
  • Support Docker Deployment
  • Support HDMI display
  • Compact size
CONTACT US
Product Introduction
H6212 intelligent controller adopts a Cortex-A7 architecture quad-core 1.3GHz processor, integrated with Mali-400MP2 GPU. It has excellent computing and graphics processing capabilities with onboard 2-way USB and 1-way OTG. It is mainly used in lightweight AI or customer-customized development scenarios and supports HDMI output display simultaneously.
Tech Specs Downloads
Network
4G/2G
Interface
Antenna Interface SMA SIM 1.8V/3.0V
Serial Port RS232(RS485 optional) TF Data storage
Serial Data Rate RS232 (300-115200bps) RS485 (300-115200bps)

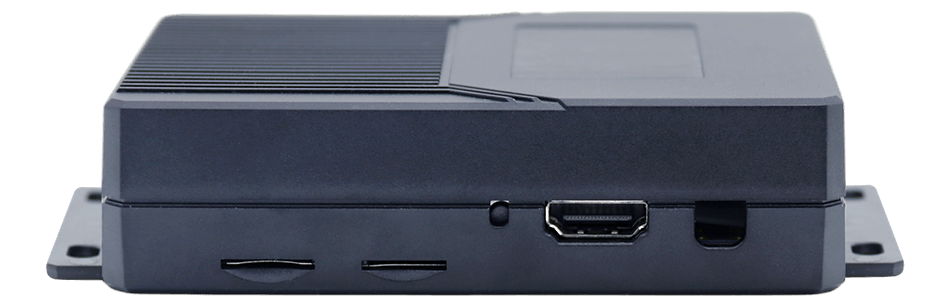

Button Reset Video port 1*HDMI OUT

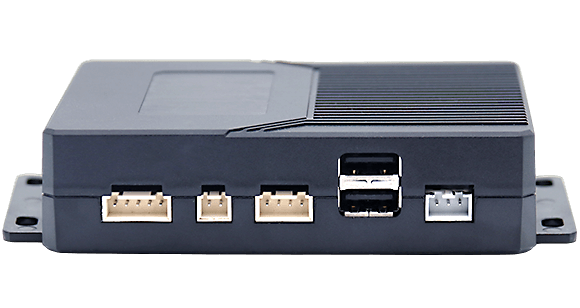

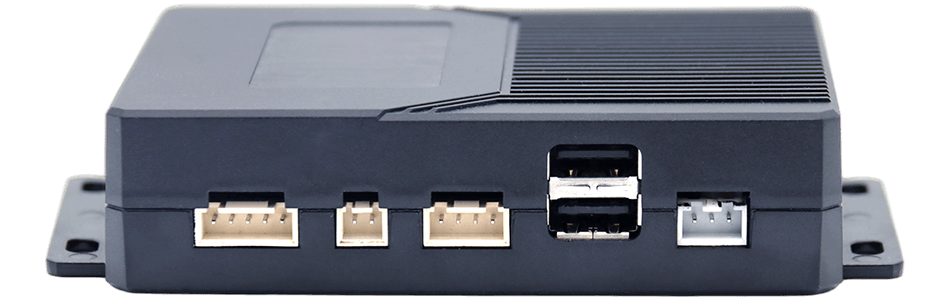

USB port 1*USB 2.0 OTG, 5pin Wafer pot
2*USB 2.0 Host, Double USB-A socket
Audio port 1*2 pin Wafer port (no more than 3W)
Power supply
Operating voltage +12V DC
Power consumption
Standby Power Consumption Approx. 120mA@12V DC
Operating Power Consumption Approx. 300mA@12V DC
Maximum Power Consumption Approx. 350mA@12V DC
Other
Weight Approx.500g
Size 126mm×85mm×15mm
Storage temperature -40~+85ºC
Operating temperature -30~+70ºC
Relative humidity ≤90%
File Name
Hongdian Datasheet-H6212 Intelligent Controller-2023V1.0
Download
VIEW ALL
Hongdian Product
Catalog
DOWNLOAD
Compatible Accessories
MORE ACCESSORIES
Related Products

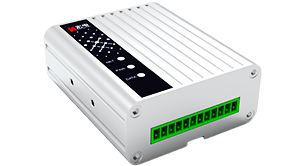

H6210 4G BLE Intelligent Controller
