Industrial Modem

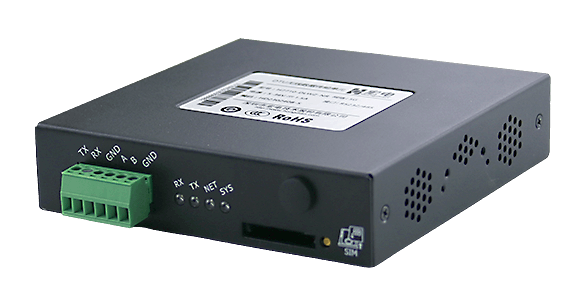

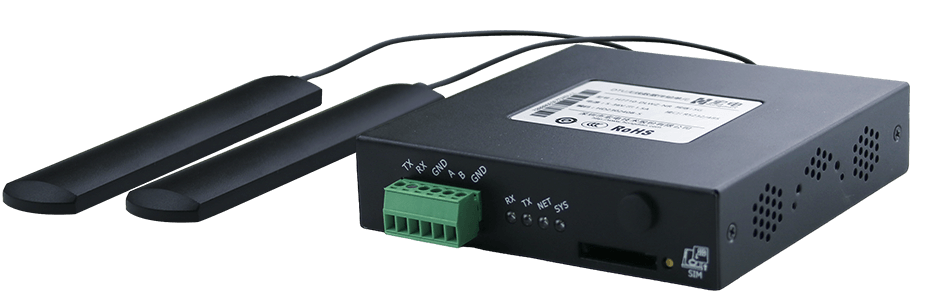

H7710 4G External Modem
  • Support 2G/3G/4G/5G and 1.8G private electric wireless networks
  • Support TCP, UDP, DCUDP, SMS, DTU and other data transmission solutions
  • Built-in watchdog with 7x24 hours stable operation
  • Comply with EMC, CCC standard design
CONTACT US
Product Introduction
H7710 4G external modem is a wireless DDN data communication product. Based on 2G/3G/4G wireless network, a wireless communication link is built for the your devices and data service center (platform), and you can transmit the user data through our modem.
Tech Specs Downloads
Network
5G/4G/3G/2G
Interface

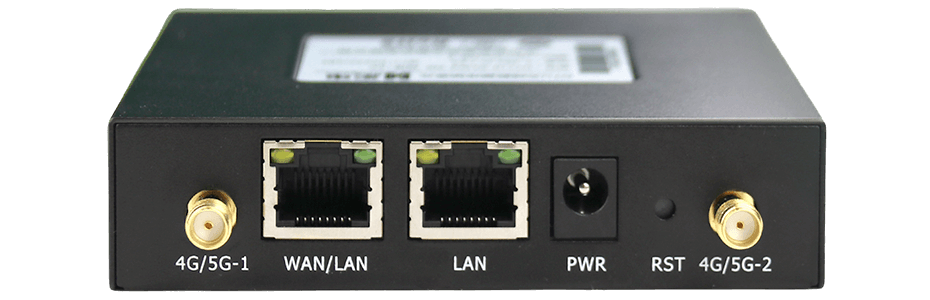

Antenna Interface 4G/5G-1: SMA-K female 4G/5G-2: SMA-K female SIM 1.8V/3.0V

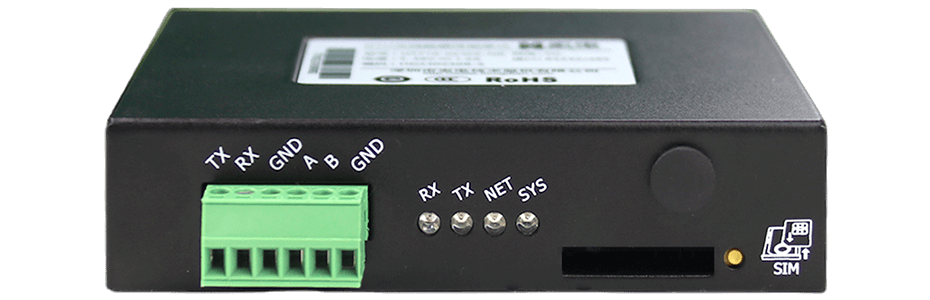

Serial Port RS232/RS485 Ethernet Port 1* 10/100Mbps WAN/LAN 1* 10/100Mbps LAN
Button Reset Wi-Fi Wi-Fi 2.4
OTG Micro-USB
Power supply
Operating voltage +5V~+36V DC
Power consumption
Standby Power Consumption Approx. 100mA@12V DC
Maximum Power Consumption Approx. 350mA@12V DC
Other
Weight Approx.300g
Size 100mm×99mm×23mm
Storage temperature -40~+85ºC
Operating temperature -30~+75ºC
Relative humidity ≤95%
File Name
Hongdian Datasheet-H7710 4G External Modem_2023V1.0
Download
