H8922S 4G Dual SIM Router

Features Tech Specs Downloads Ordering

Dual SIM cold/hot backup, cellular/wired backup
4 LAN ports & 1 WAN port
5-36V DC wide range power input

VPN

Support GRE/EoIP/L2TP/PPTP/IPsec/DMVPN/OpenVPN
GRE over IPsec, IPsec over PPTP/L2TP
IPsec with X.509 CA
Stateful GRE

Network Flexibility

Support 4G+/4G/3G/2G network,
Support worldwide band
Support WAN, PPPoE, Static IP, DHCP client
Support 802.11b/g/n

Advance Feature

Static routing, Policy routing, RIPv2, OSPF, BGP
Support DNS proxy Dynamic DNS (DDNS)
LCP/ICMP/flow/heartbeat check, ensure network usability
Hardware Watchdog
Multiple VLAN
Load balancing, QoS, NTP
MQTT, Modbus
Support IPV6
Support Radius, TACACS+
Support schedule task

Management

Hongdian Wedora RMS, encrypted connection, remote access to device’s GUI/CLI
Remote access to end device’s GUI/CLI
Support WEB, CLI, SSH local/remote access
Support IPfix
Support local/remote firmware and patch update
Support configuration backup and import
Local/Remote log for easy debugging
Support SNMPv2/v3

Hardware
CPU	Mediatek MIPS 24Kc 580 MHz
RAM	128MB
FLASH	16MB
Cellular Interface
Modem	1 or 2 x LTE CAT4
Module integration	mini PCIe
Number of antennas	2
Connector	SMA-K
SIM	2 x Mini SIM (2FF)
Ethernet Interface
Number of ports	5 x 10/100 Mbps, Ethernet
Configuration	5 x LAN or 4 x LAN + 1 x WAN
PoE output	N/A
Wireless interface
Standards	802.11b/g/n, AP or station mode
Frequency bands	2.4 GHz
Speed	150Mbps
Security	WEP, WPA, WPA2
Encryption	64/128 AES, TKIP
Antennas	1
Connector	SMA-K
GNSS interface
Number of antennas	1 (only for GPS version)
Connector	SMA-K with 50 ohms impedance
Dead Reckoning	N/A
Seiral interface

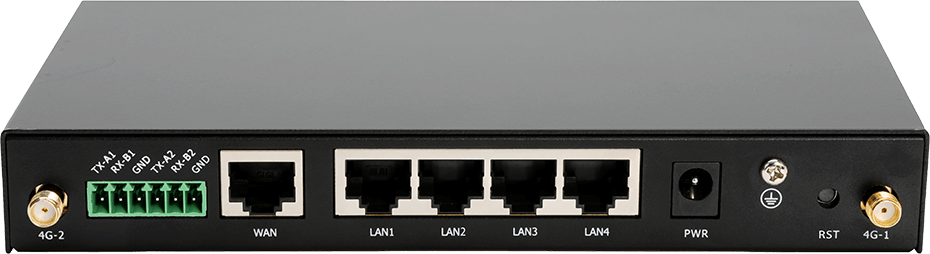

Type	1 x RS-232 + 1 x RS-485 serial port
Socket form	1 * 6-pin 3.5 mm female socket
Signal definition	RX,TX,GND (RS-232) , A+,B-,GND (RS-485)
Baudrate	RS-232 (300-115200bps) RS-485 (300-115200bps)
ESD	15KV
Software
Auto fail-over	Between: 2 Cellulars Cellular and WAN Cellular and Wi-Fi (station mode) WAN and Wi-Fi (station mode)
Network protocols	PPP,PPPoE,TCP,UDP,IPv4,IPv6,SSL,DHCP,ICMP, NAT,HTTP,HTTPs, DNS, ARP,NTP,Telnet, SSH, DDNS, etc.
Routing	Static Routing, Policy routing, RIP, OSPF and BGP, etc
Firewall	NAT, PAT, DMZ, Port Forword IP/Domain/MAC Filter, Access Control List
VPN	PPTP/L2TP/GRE/IPSec/OpenVPN/DMVPN
Remote Management	HTTP, Telnet, SSH, SMS SNMP V1/V2/V3, SNMP TRAP Hongdian Wedora Cloud Platform
Serial ports function	Transparent, Modbus RTU, etc
Power Supply and Consumption
Connector	DC socket
Voltage input	+5V~+36V DC
Power consumption	Idle: 200mA@12V DC Data transceiving:550mA@12V DC
Others
Reset button	Yes

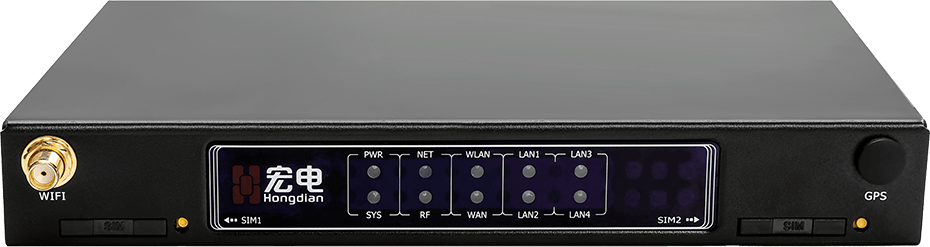

LED indicators	10 indicators for PWR, SYS, WAN, LAN1~LAN4, RF, NET, WLAN
Hardware watchdog	Yes
Physical Characteristics
Ingress protection	IP30
Housing & Weight	Metal, 540g
Dimension	176×105×25(mm)
Installations	Desktop, wall mounting
Operating temperature	-30 ~ +70℃
Storage temperature	-40 ~ +85 °C
Relative humidity	≤95%(no condensing)
Certifications (*In progress)	CE, FCC*

File Name

Hongdian Application Guide - H8922S - Link Backup- WAN_Modem- IPsec

Download

Hongdian Application Guide - H8922S - Parameter Select -L2TP Backup

Download

Hongdian Application Guide - H8922S-CFE-Firmware Upgrade

Download

Hongdian Application Guide - H8922S-Dual Module-Load Balance

Download

Hongdian Application Guide - H8922S-Link Backup- WAN_Modem- IPsec

Download

Hongdian Specification-H8922S 4G Dual SIM Router

Download

Hongdian User Manual-H8922S 4G Dual SIM Router

Download

Hongdian Datasheet-H8922S 4G Dual SIM Router-2023V1.1

Download

Product	Part No.	Network	Frequency	Interface						Certification	Region
				SIM	Ethernet	WLAN	GNSS	RS232	RS485
H8922S 4G Router	H8922S-L4-ENEA-CS	LTE Cat 4	4G( LTE-FDD): B1/B3/B5/B7/B8/B20 4G (LTE-TDD): B38/B40/B41 3G: B1/B5/B8 2G: B3/B8	2	5	Wi-Fi 4	N*	1	1	CE, RoHS	Europe, the Middle East, Africa, Korea, Thailand, India, Malaysia
	H8922S-2L4-ENEA-CS	2 modules LTE Cat 4
	H8922S-L4-ENNA-CS	LTE Cat 4	4G( LTE-FDD): B2/B4/B5/B12/B13/B14/B66/B71 3G WCDMA: B2/B4/B5							FCC, PTCRB	North America
	H8922S-2L4-ENNA-CS	2 modules LTE Cat 4
	H8922S-L4-ENSA-CS	LTE Cat 4	4G (FDD-LTE): B1/B2/B3/B4/B5/B7/ B8/B28 4G (LTE-TDD): B40 3G: B2/B3/B5/B8							RCM, Anatel	Oceania, South America
	H8922S-2L4-ENSA-CS	2 modules LTE Cat 4
For more detailed information about the frequency or any specific requirement, please contact your sales representitive.
