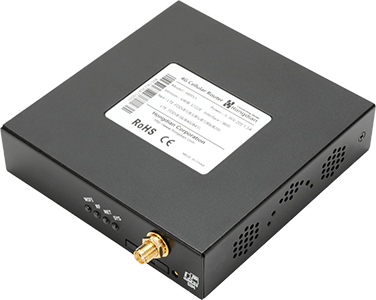

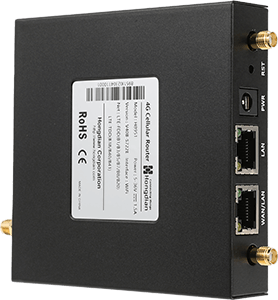

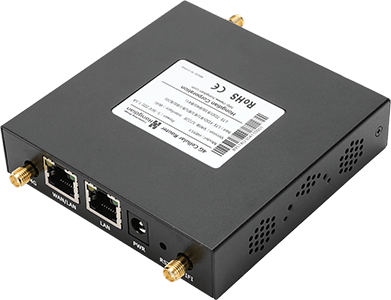

H8951 4G Wi-Fi Router

Single SIM cold/hot backup, cellular/wired backup
1 LAN port & 1 WAN port
5-36V DC Wide range power input
Compact design

VPN

Support GRE/EoIP/L2TP/PPTP/IPsec/DMVPN/OpenVPN
GRE over IPsec, IPsec over PPTP/L2TP
IPsec with X.509 CA
Stateful GRE

Network Flexibility

Support 4G+/4G/3G/2G network,
Support worldwide band
Support WAN, PPPoE, Static IP, DHCP client
Support 802.11b/g/n

Advance Feature

Static routing, Policy routing, RIPv2, OSPF, BGP
Support DNS proxy Dynamic DNS (DDNS)
LCP/ICMP/flow/heartbeat check, ensure network usability
Hardware Watchdog
Multiple VLAN
Load balancing, QoS, NTP
Support IPV6
Support Radius, TACACS+
Support schedule task

Management

Hongdian Wedora RMS, encrypted connection, remote access to device’s GUI/CLI
Remote access to end device’s GUI/CLI
Support WEB, CLI, SSH local/remote access
Support IPfix
Support local/remote firmware and patch update
Support configuration backup and import
Local/Remote log for easy debugging
Support SNMPv2/v3

Hardware
CPU	Mediatek MIPS 24Kc 580 MHz
RAM	128MB
FLASH	16MB
Cellular Interface
Modem	1 x LTE CAT4
Module integration	mini PCIe
Number of antennas	2
Connector	SMA-K
SIM	1 x Mini SIM (2FF)
Ethernet Interface
Number of ports	2 x 10/100 Mbps, Ethernet

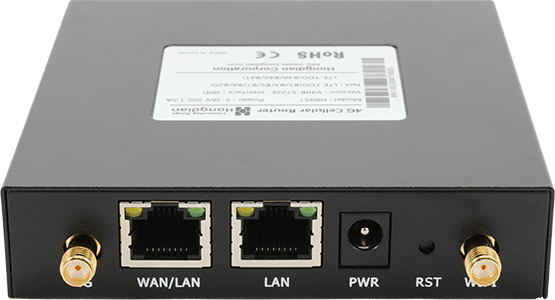

Configuration	2 x LAN or 1 x LAN + 1 x WAN
PoE output	N/A
Wireless interface
Standards	802.11b/g/n, AP or station mode
Frequency bands	2.4 GHz
Speed	150Mbps
Security	WEP, WPA, WPA2
Encryption	64/128 AES, TKIP
Antennas	1
Connector	SMA-K
GNSS interface
Number of antennas	N/A
Connector
Dead Reckoning
Seiral interface
Type	N/A
Socket form
Signal definition
Baudrate
ESD
Software
Auto fail-over	Between: Cellular and WAN Cellular and Wi-Fi (station mode) WAN and Wi-Fi (station mode)
Network protocols	PPP,PPPoE,TCP,UDP,IPv4,IPv6,SSL,DHCP,ICMP, NAT,HTTP,HTTPs, DNS, ARP,NTP,Telnet, SSH, DDNS, etc.
Routing	Static Routing, Policy routing, RIP, OSPF and BGP, etc
Firewall
VPN	PPTP/L2TP/GRE/IPSec/OpenVPN/DMVPN
Remote Management	HTTP, Telnet, SSH, SMS SNMP V1/V2/V3, SNMP TRAP Hongdian Wedora Cloud Platform
Serial ports function	N/A
Power Supply and Consumption
Connector	DC socket
Voltage input	+5V~+36V DC
Power consumption	Idle: 100mA@12V DC Data transceiving: 350mA@12V DC
Others
Reset button	Yes

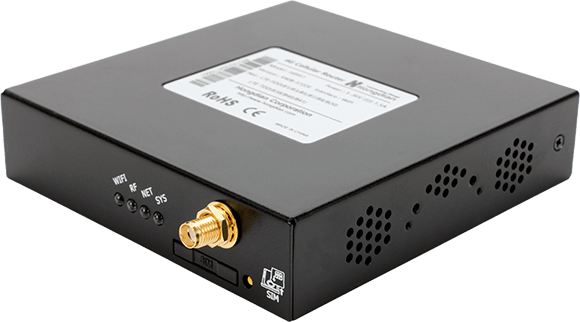

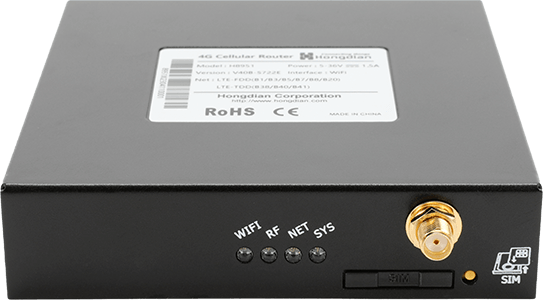

LED indicators	4 indicators for WiFi, RF, NET, SYS
Hardware watchdog	Yes
Physical Characteristics
Ingress protection	IP30
Housing & Weight	Metal, 300g
Dimension	99.7×98.8×23.4(mm)
Installations	Desktop, wall mounting
Operating temperature	-30 ~ +75℃
Storage temperature	-40 ~ +85 °C
Relative humidity	≤95%(no condensing)
Certifications (*In progress)	CE, FCC, AT&T, Verizon, T-mobile

File Name

Hongdian Application Guide - H8951-Link Backup-WLAN_Modem

Download

Hongdian Specification-H8951 4G Wi-Fi Router

Download

Hongdian User Manual-H8951 4G Wi-Fi Router

Download

Hongdian Datasheet-H8951 4G Wi-Fi Router-2023V1.1

Download

Product	Part No.	Network	Frequency	Interface			Certification	Region
				SIM	RJ45	WLAN
H8951 Cellular Wi-Fi Router	H8951-L4-ENEA	LTE Cat 4	4G( LTE-FDD): B1/B3/B5/B7/B8/B20 4G (LTE-TDD): B38/B40/B41 3G: B1/B5/B8 2G: B3/B8	1	2	Wi-Fi 4	CE, RoHS, E-mark*	Europe, the Middle East, Africa, Korea, Thailand, India, Malaysia
	H8951-L1-ENEA	LTE Cat 1					FCC, IC, PTCRB	North America
	H8951-L4-ENSA	LTE Cat 4	4G (FDD-LTE): B1/B2/B3/B4/B5/B7/ B8/B28 4G (LTE-TDD): B40 3G: B2/B3/B5/B8				RCM, Anatel	Oceania, South America
	H8951-L4-ENNA	LTE Cat 4	4G( LTE-FDD): B2/B4/B5/B12/B13/B25/B26; 3G: B2/B4/B5				FCC, IC, PTCRB	North America
	H8951-L1-ENNA	LTE Cat 1
	H8951-L4-ENJP	LTE Cat 4	4G (FDD-LTE): B1/B3/B8/B18/B19/B26/B28 4G (LTE-TDD): B39/B41 3G: B1/B6/B8/B19				VCCI, JATE, TELEC*	Japan

For more detailed information about the frequency or any specific requirement, please contact your sales representitive.
