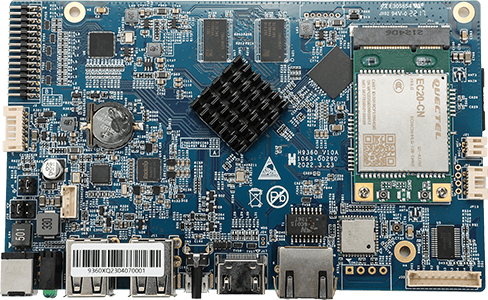

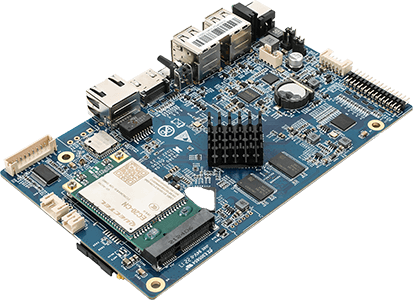

H9360 Embedded Industrial Computer

Product Introduction

H9360 Embedded Industrial Computer adopts RK3568 high-performance processor and Android operating system to design high reliability and high stability intelligent industrial control equipment. It provides Android 11 and other operating environments, supports 4G full Netcom real-time communication, and the city service and commercial networking APPs can directly run in the industrial computer system to provide end-users with convenient interactive services. Its rich peripheral interfaces and super image processing capabilities can be widely used in urban services and new retail fields.

Tech Specs Downloads Ordering

Hardware
CPU	RK3568, highest frequency: 2.0GHz; 64 bits
NPU	0.8TPOS
Memory	2GB
Built-in storage	8GB
Cellular Interface
Modem	1 LTE CAT4

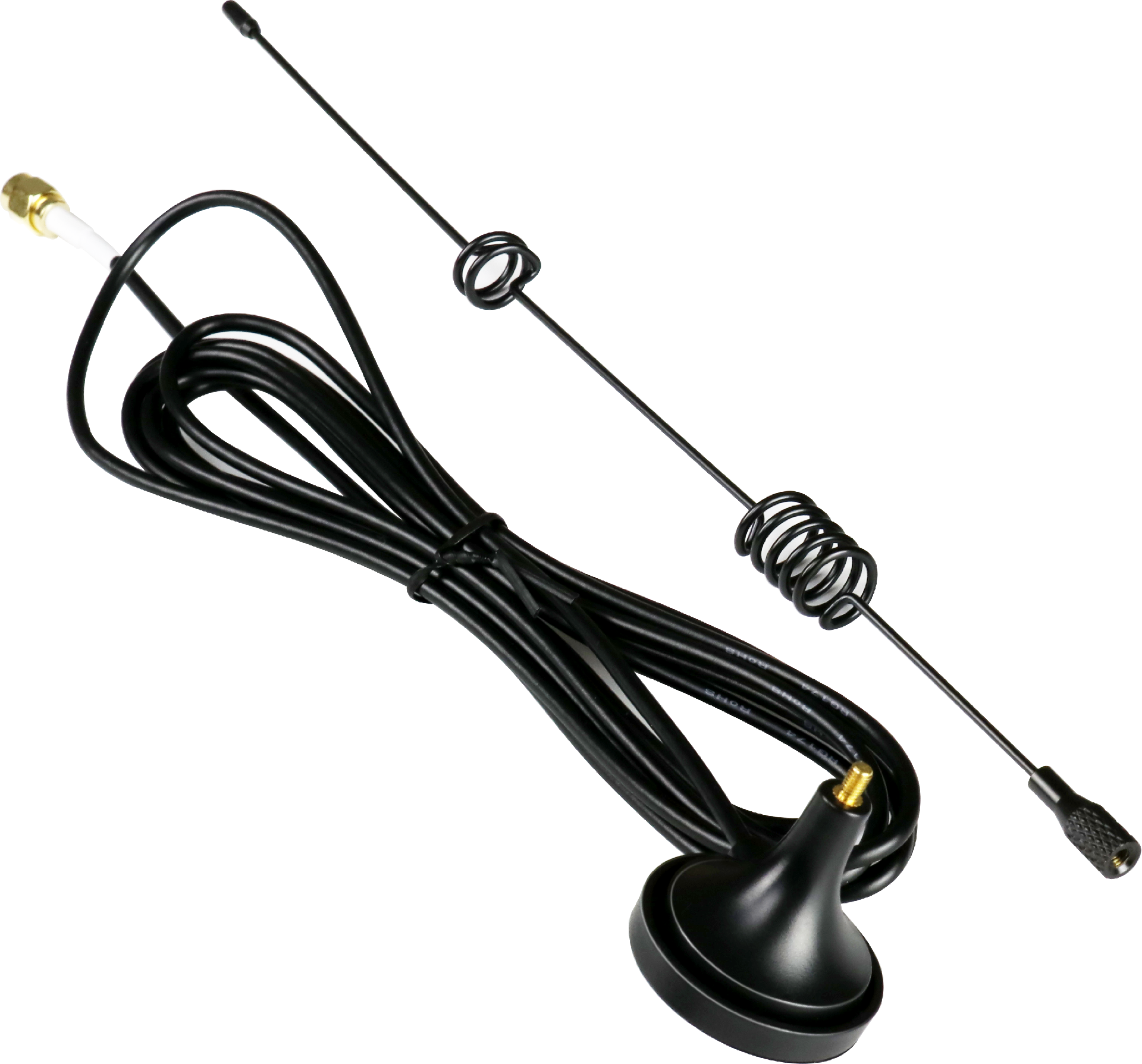

Number of Antennas	1
SIM	1 x Mini SIM (2FF)
Wireless Interface
Standards	802.11b/g/n
Frequency Bands	2.4 GHz
Speed	150Mbps
Antennas	1 (WiFi and Bluetooth)
Bluetooth	BT4.0
GNSS Interface
Number of Antennas	N/A
Peripheral Interface
Serial	2 x RS-232 + 2 x RS-485 serial port,10-pin 2 mm female socket

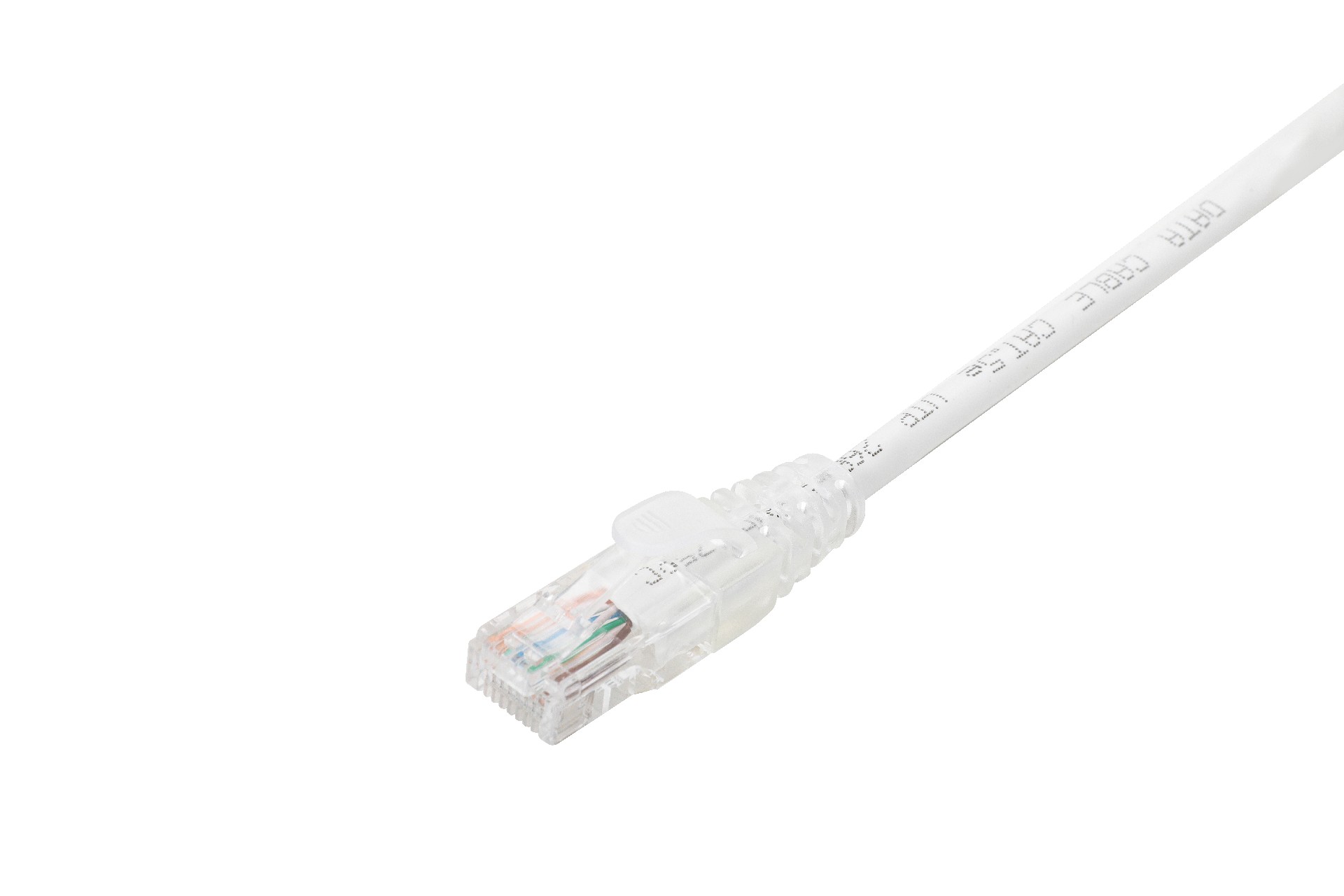

Ethernet	1x 10/100 Mbps, Ethernet
USB	USB 2.0 x 5,OTG x1
Display	HDMI 2.0 x 1, LVDS x1 , MIPI x1
Display Performance
Liquid Crystal	N/A
Screen Size
Resolution
Brightness
Contact Performance
Transmittance	N/A
Glass Material
Max Touch Points
Software
Operating System	Android 11/Linux
Video code	H.265/H.264/VP9 4K@60fpsHD video decoding H.265/H.264/VP9 1080P@100fpsHD videoencoding
Image processing	BMP, JPG, PNG, GIF
Power Supply and Consumption

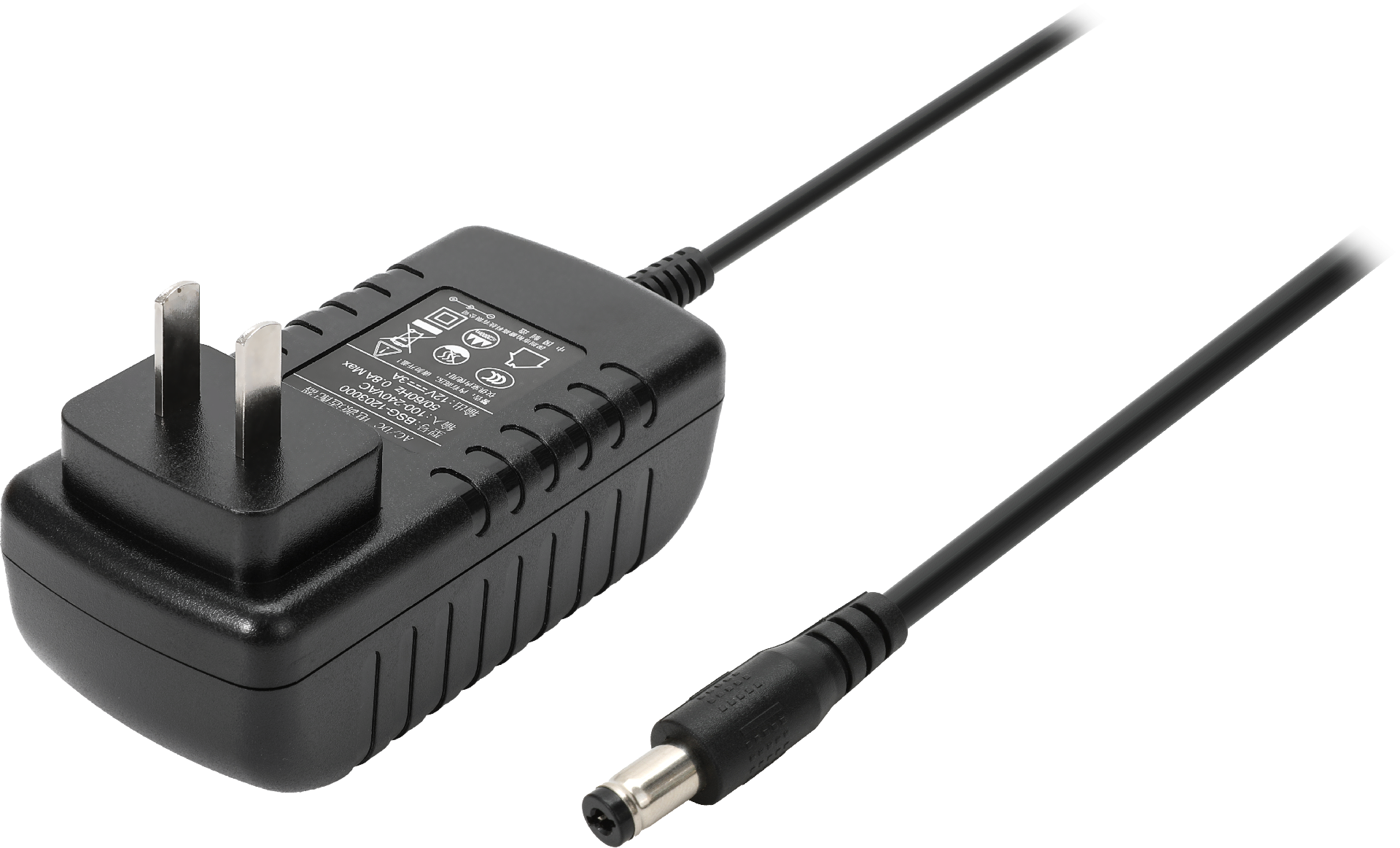

Connector	DC socket
Voltage Input	12V DC
Power Consumption	Less than 10 W (only system)
Others
Reset Button	Yes
LED Indicators	3 indicators for PWR, SYS, 4G
Hardware Watchdog	Yes
Physical Characteristics
Ingress Protection	N/A
Housing & Weight	N/A
Dimension	150*92.0mm
Installations	Wall-mounting
Operating Temperature	-20 ~ +70 °C
Storage Temperature	-40 ~ +85 °C
Relative Humidity	5 ~ 95%
Certifications (*In progress)

File Name

Hongdian Specification-H9360 Embedded Industrial Computer

Download

Hongdian Datasheet-H9360 Embedded IPC-2023V1.1

Download

Product	Model	4G modem	Interface					Region
			WLAN	RJ45	RS232	RS485	USB
H9360	H9360-EU	LTE-FDD:B1/B3/B5/B7/B8/B20 LTE-TDD:B38/B40/B41 UMTS/HSDPA/HSUPA/HSPA+:B1/B5/B8 GSM/GPRS/EDGE:900/1800MHz	1	1	2	2	5x USB 2.0 1x OTG	Europe, Asia, Africa

	H9360-AFX	LTE-FDD:B2/B4/B5/B12/B13/B14/B66/B71 WCDMA:B2/B4/B5	1	1	2	2	5x USB 2.0 1x OTG	North America


	H9360-AUX	LTE-FDD:B1/B2①/B3/B4/B5/B7/B8/B28 LTE-TDD:B40 WCDMA:B2/B3/B5/B8	1	1	2	2	5x USB 2.0 1x OTG	South America, Australia, Africa


	H9360-JP	LTE-FDD(B1/3/8/18/19/26)	1	1	2	2	5x USB 2.0 1x OTG	Japan
