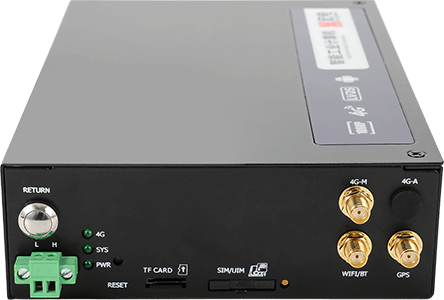

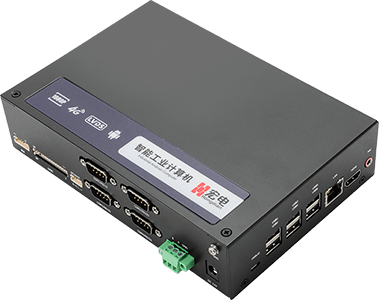

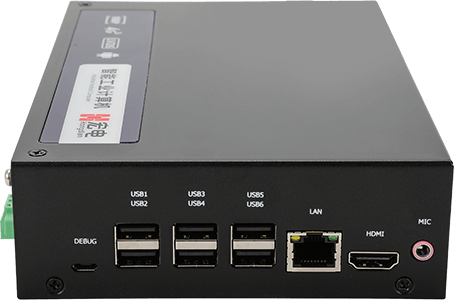

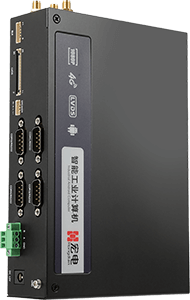

H9380F 4G Embedded Box

Product Introduction

H9380F 4G embedded box is a mid to high-end solution with an integrated 4-core arm architecture A55 processor and Mali G52 2EE graphics processor, supporting 4K decoding and 1080P encoding. There is a built-in independent NPU for lightweight artificial intelligence applications. Providing Android 11 system, mainly used in smart containers, smart vending machines, smart express cabinets, smart power exchange cabinets and other kinds of intelligent selfservice terminals.

Tech Specs Downloads Ordering

Hardware
CPU	RK3568, highest frequency: 2.0GHz; 64 bits
NPU	0.8TPOS
Memory	2GB
Built-in storage	8GB
Cellular Interface
Modem	1 LTE CAT4
Number of Antennas	1
SIM	1 x Mini SIM (2FF)
Wireless Interface
Standards	802.11b/g/n
Frequency Bands	2.4 GHz
Speed	150Mbps
Antennas	1 (WiFi and Bluetooth)
Bluetooth	BT4.0
GNSS Interface
Number of Antennas	1
Peripheral Interface

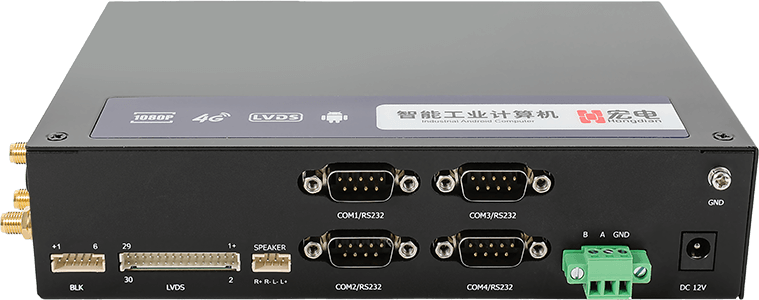

Serial	4 x RS-232 (2 RS232 port can be configured as a RS485 port),DB9 male connector ; 1 x RS-485 serial port,3-pin 3.5 mm female socket
Ethernet	1 x 10/100/1000 Mbps, Gigabit Ethernet
USB	USB 2.0 x 6,OTG x1
Display	HDMI 2.0 x 1, LVDS x1
Display Performance
Liquid Crystal	N/A
Screen Size
Resolution
Brightness
Contact Performance
Transmittance	N/A
Glass Material
Max Touch Points
Software
Operating System	Android 11/Linux
Video code	H.265/H.264/VP9 4K@60fpsHD video decoding H.265/H.264/VP9 1080P@100fpsHD videoencoding
Image processing	BMP, JPG, PNG, GIF
Power Supply and Consumption
Connector	DC socket
Voltage Input	12V DC
Power Consumption	Less than 10 W (only system)
Others
Reset Button	Yes
LED Indicators	3 indicators for PWR, SYS, 4G
Hardware Watchdog	Yes
Physical Characteristics
Ingress Protection	IP30
Housing & Weight	Metal
Dimension	210×130×44.6mm
Installations	Wall-mounting
Operating Temperature	-20 ~ +70 °C
Storage Temperature	-40 ~ +85 °C
Relative Humidity	5 ~ 95%
Certifications (*In progress)

File Name

Hongdian-Datasheet-H9380F 4G Industrial Computer-2023

Download

Product	Model	4G modem	Interface						Region
			WLAN	RJ45	RS232	RS485	USB	GPS
H9380F	H9380F-EU	LTE-FDD:B1/B3/B5/B7/B8/B20 LTE-TDD:B38/B40/B41 UMTS/HSDPA/HSUPA/HSPA+:B1/B5/B8 GSM/GPRS/EDGE:900/1800MHz	1	1	4	1	6x USB 2.0 1x OTG	1	Europe, Asia, Africa

	H9380F-AFX	LTE-FDD:B2/B4/B5/B12/B13/B14/B66/B71 WCDMA:B2/B4/B5	1	1	4	1	6x USB 2.0 1x OTG	1	North America

	H9380F-AUX	LTE-FDD:B1/B2①/B3/B4/B5/B7/B8/B28 LTE-TDD:B40 WCDMA:B2/B3/B5/B8	1	1	4	1	6x USB 2.0 1x OTG	1	South America, Australia, Africa


	H9380F-JP	LTE-FDD:B1/3/8/18/19/26	1	1	4	1	6x USB 2.0 1x OTG	1	Japan
