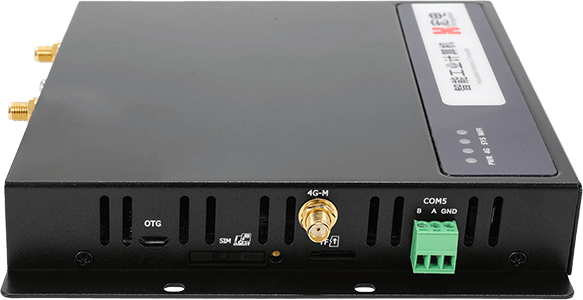

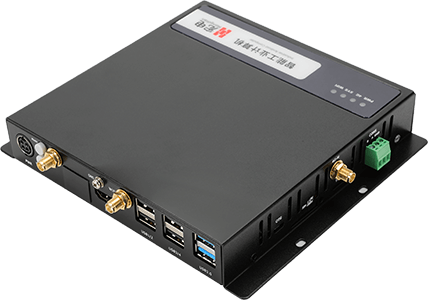

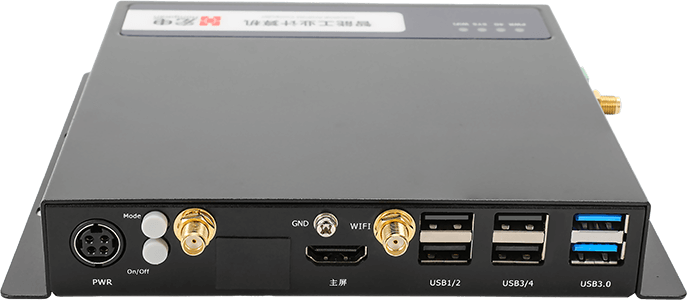

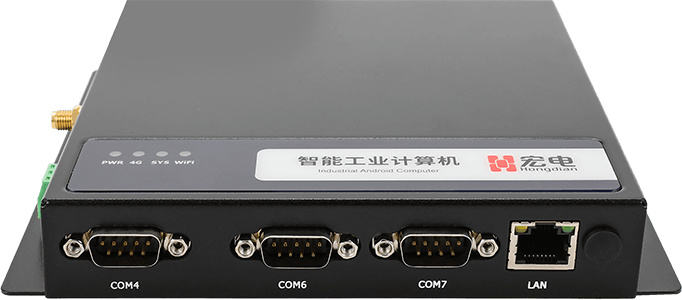

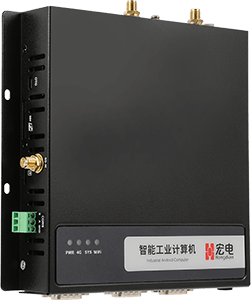

H9380P 4G Embedded Box

Product Introduction

H9380P 4G embedded box is a highly reliable and stable intelligent device designed with Cortex microprocessor and Android operating system. It provides running environment such as Android 7.1.2, supporting 4G full network pass real-time communication, city services and business networking application APP can run directly in the system to provide convenient interactive services for end users. Its rich peripheral interfaces and super image processing capability can be widely used in urban services and new retail areas, and can meet the needs of many industry applications such as face payment smart vending machines, smart coffee machines, smart delivery cabinets, robots , IoT fields, vehicle control, and medical classes.

Features Tech Specs Downloads Ordering

High Performance CPU, Large Memory, Android System.
Full Interfaces Types(RJ45, RS232, USB, HDMI, VGA, SPK, MIC).
High-speed 3G/4G Link Auto Switch, Auto Failover Recovery.
APP Operation, Easy Secondary Development, Device Status Monitoring.
Support Multiple Screens Display, Self-adaption Screen Size.
Intelligent Temperature Control Inside, Access External Sensors.
GPS Inside, Hongdian Cloud Platform Remote Maintenance .

Hardware
CPU	RK3399, highest frequency: 1.8GHz; 64 bits
NPU	N/A
Memory	2GB
Built-in storage	16GB
Cellular Interface
Modem	1 LTECAT4
Number of Antennas	1
SIM	1 x Mini SIM (2FF)
Wireless Interface
Standards	802.11b/g/n
Frequency Bands	2.4 GHz
Speed	150Mbps
Antennas	1 (WiFi and Bluetooth)
Bluetooth	BT4.0
GNSS Interface
Number of Antennas	N/A
Peripheral Interface
Serial	3 x RS-232 (1 RS232 port can be configured as a RS485 port),DB9 male connector ; 1 x RS-485 serial port,3-pin 3.5 mm female socket
Ethernet	1x 10/100/1000 Mbps, Gigabit Ethernet
USB	USB 2.0 x 4, USB 3.0 x 2, OTG x1
Display	HDMI 2.0 x 1
Display Performance
Liquid Crystal	N/A
Screen Size
Resolution
Brightness
Contact Performance
Transmittance	N/A
Glass Material
Max Touch Points
Software
Operating System	Android 7.1.2/Linux
Video code	H.265/H.264/VP9 4K@60fpsHD video decoding
Image processing	BMP, JPG, PNG, GIF
Power Supply and Consumption
Connector	4 pin aviation connector
Voltage Input	12V DC
Power Consumption	Less than 10 W (only system)
Others
Reset Button	Yes
LED Indicators	4 indicators for PWR, SYS, 4G, WIFI
Hardware Watchdog	Yes
Physical Characteristics
Ingress Protection	IP30
Housing & Weight	Metal
Dimension	17015027mm
Installations	Wall-mounting
Operating Temperature	-20 ~ +70 °C
Storage Temperature	-40 ~ +85 °C
Relative Humidity	5 ~ 95%
Certifications (*In progress)

File Name

Hongdian Specification-H9380P 4G Industrial Computer

Download

Hongdian User Manual-H9380P 4G Industrial Computer

Download

Hongdian Datasheet-H9380P 4G Industrial Computer-2023V1.1

Download

Product	Model	4G modem	Interface					Region
			WLAN	RJ45	RS232	RS485	USB
H9380P	H9380P-EU	LTE-FDD:B1/B3/B5/B7/B8/B20 LTE-TDD:B38/B40/B41 UMTS/HSDPA/HSUPA/HSPA+:B1/B5/B8 GSM/GPRS/EDGE:900/1800MHz	1	1	3	1	4x USB 2.0 2x USB 3.0 1x OTG	Europe, Asia, Africa



	H9380P-AFX	LTE-FDD:B2/B4/B5/B12/B13/B14/B66/B71 WCDMA:B2/B4/B5	1	1	3	1	4x USB 2.0 2x USB 3.0 1x OTG	North America



	H9380P-AUX	LTE-FDD:B1/B2①/B3/B4/B5/B7/B8/B28 LTE-TDD:B40,WCDMA,B2/B3/B5/B8	1	1	3	1	4x USB 2.0 2x USB 3.0 1x OTG	South America, Australia, Africa



	H9380P-JP	LTE-FDD:B1/3/8/18/19/26	1	1	3	1	4x USB 2.0 2x USB 3.0 1x OTG	Japan
