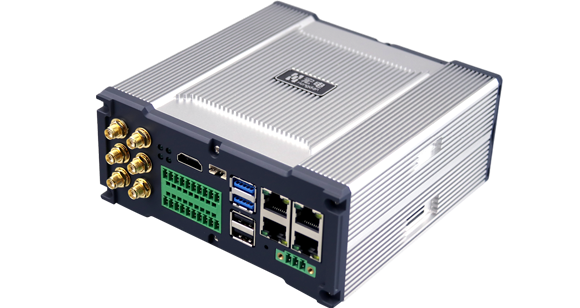

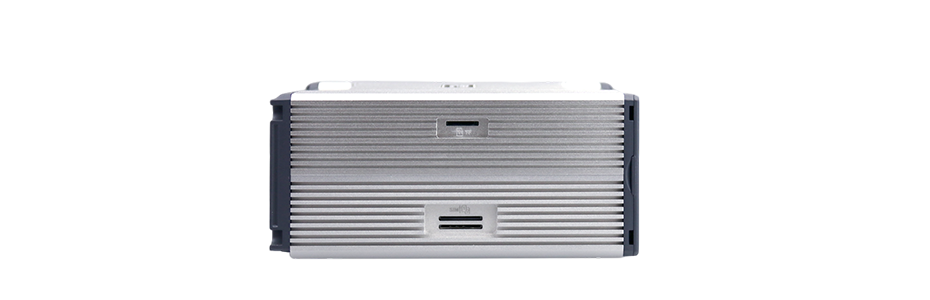

Smart 3000 AI Box

1. AI computing power:

Support four major categories of AI algorithms, including dozens of industry AI algorithms such as helmet, work clothes, smoking, flame, smoke, water level, and cross-border, the computing power is as high as 6TOPS.

2. Edge control:

Support combination with other node devices, integrating control, calculation, and analysis to provide a super brain for the site.

3. Stable operation

Support wired/cellular backup, multi-mode backup, software and hardware dual watchdog, never crash, 5G LAN, network cutting, multi-DNN, and frequency locking.

4. Rich interfaces

Equipped with rich interfaces such as RJ45, RS232, RS485, CAN, HDMI, etc., to transmit data in various ways.

Hardware
CPU	Rockchip RK3588
Memory	8GB/12GB
Built-in storage	32GB/64GB
Cellular Interface
Modem	15G NR/NSA/SA or 1LTE-FDD/TDD
Number of Antennas	6
SIM	2×Mini SIM (2FF)

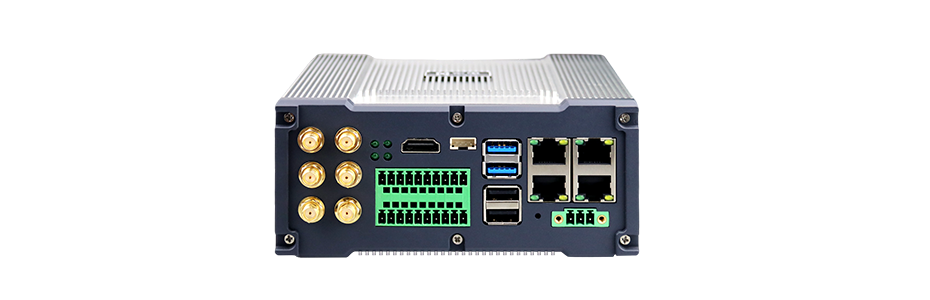

Peripheral Interface
Serial	2×RS-232 + 4×RS-485 serial port
Ethernet	2xLAN 10/100/1000Mbps+2xWAN/LAN 10/100/1000Mbps
USB	2xUSB3.0+2xUSB2.0
Display	1x HDMI, maximum resolution 2K@30Hz, supports audio
Software
Operating System	Hongdian self-developed OSDT system
Video Code	H.265/H.264/VP9, 4K@60fpsHD video decoding
Image processing	BMP, JPG, PNG, GIF
Power Supply and Consumption
Connector	3 pin socket
Voltage Input	DC 9～36V, including ACC
Others
Reset Button	Yes
Hardware Watchdog	Yes
LED Indicators	4 indicators for SYS, WiFi, NET,PWR
Physical Characteristics
Ingress Protection	IP30
Housing	Aluminum+ABS plastic
Dimension	145.0144.064.0mm
Installations	Wall-mounting
Operating Temperature	-20～+70º
Storage Temperature	-40～+80ºC
Relative Humidity	<90% (no condensation)

File Name

Hongdian Datasheet-Smart 3000 AI Box-2023V1.0
