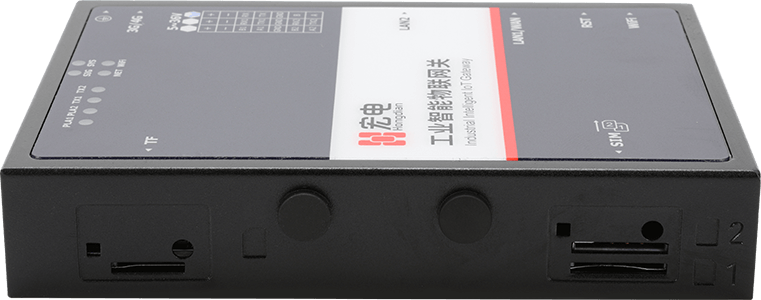

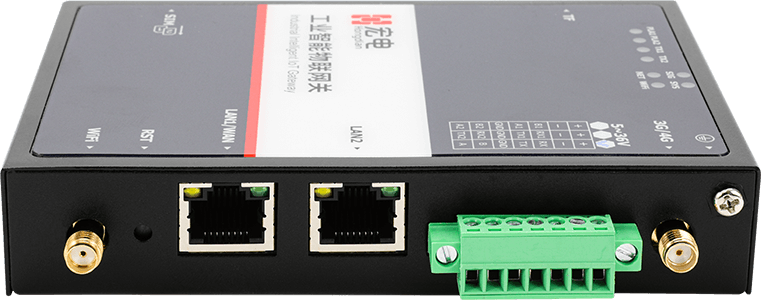

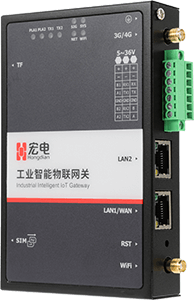

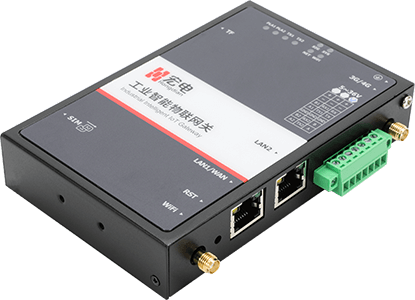

X1 Industrial Gateway

Product Introduction

Hongdian X1 is a new generation 4G VPN gateway with edge computing capability for IIoT. It adopts a fully industrial-grade hardware platform with powerful data collection, storage, analysis and processing capabilities. 4G wireless network and multiple bandwidth services provide stable and reliable Internet accesseverywhere. With its excellent product quality and comprehensive security, it realizes equipment networking and provides solutions for true equipment informatization, manufacturing intelligence, edge computing and maintenance industrial internetization.

Tech Specs Downloads Ordering

Hardware
CPU	ARM Cortex-A7, 900MHz
RAM	512MB
FLASH	8GB eMMC
SD card	TF card slot
USB	N/A
Cellular Interface
Modem	1 x LTE CAT4
Module Integration	mini PCIe
Number of Antennas	2
Connector	SMA-K
SIM	2 x Mini SIM (2FF)
Ethernet Interface
Number of Ports	2 x 10/100 Mbps, Ethernet
Configuration	2 x LAN or 1 x LAN + 1 x WAN
PoE Output	N/A
Wireless Interface
Standards	802.11b/g/n, AP or station modes
Frequency Bands	2.4 GHz
Speed	150Mbps
Security	WEP, WPA, WPA2
Encryption	64/128 AES, TKIP
Antennas	1
Connector	SMA-K
GNSS Interface
Number of Antennas	N/A
Connector
Dead Reckoning
Seiral Interface
Type	1 x RS-232 + 1 x RS-485 serial port
Socket Form	1 * 7-pin 3.5 mm female socket
Signal Definition	RX,TX,GND (RS-232) , A+,B-,GND (RS-485)
Baudrate	RS-232 (300-115200bps) RS-485 (300-115200bps)
ESD	15KV
Software
Auto Fail-over	Between: Cellular and WAN Cellular and Wi-Fi (station mode) WAN and Wi-Fi (station mode)
Network Protocols	PPP,PPPoE,TCP,UDP,IPv4,IPv6,SSL,DHCP,ICMP, NAT,HTTP,HTTPs, DNS, ARP,NTP,Telnet, SSH, DDNS, etc.
Routing	Static Routing, Policy routing, RIP, OSPF and BGP, etc
Firewall	NAT, PAT, DMZ, Port Forword IP/Domain/MAC Filter, Access Control List
VPN	PPTP/L2TP/GRE/IPSec/OpenVPN/DMVPN
Remote Management	HTTP, Telnet, SSH, Hongdian Wedora Cloud Platform
Serial Ports Function	Transparent, Modbus RTU, etc
Power Supply and Consumption
Connector	2 pin socket
Voltage Input	5V~36V DC
Power Consumption	Idle:180mA@12V DC Data transceiving: 300mA@12V DC
Others
Reset Button	Yes
LED Indicators	4 indicators for SIG, SYS, NET, WiFi 4 indicators for PLA1, PLA2, TX1, TX2
Hardware Watchdog	Yes
Physical Characteristics
Ingress Protection	IP43
Housing & Weight	Metal,285g
Dimension	127×83×24(mm)
Installations	Desktop, wall mounting andDIN rail mounting
Operating Temperature	-30 ~ +70 °C
Storage Temperature	-40 ~ +85 °C
Relative Humidity	5 ~ 95%
Certifications (*In progress)	CE, FCC

File Name

Hongdian Datasheet-X1 Industrial Gateway-2023V1.0

Download

Product	Part No.	Frequency	Interface					Region
Product	Part No.	Frequency	4G modem	WLAN	RJ45	RS232	RS485	Region
X1	X1-L100-W-2R-CS	4G(LTE-FDD): B1/B3/B5/B7/B8/B20 4G(LTE-TDD): B38/B40/B41 3G: B1/B5/B8 2G: B3/B8	1	1	2	1	1	Europe, the Middle East, Africa, Korea, Thailand, India, Malaysia
	X1-L100-W-2R-2S		1	1	2	-	2	Europe, the Middle East, Africa, Korea, Thailand, India, Malaysia
	X1-L108-W-2R-CS	4G(FDD-LTE): B1/B2/B3/B4/B5/B7/ B8/B28 4G(LTE-TDD): B40 3G: B2/B3/B5/B8	1	1	2	1	1	Oceania, South America
	X1-L108-W-2R-2S		1	1	2	-	2	Oceania, South America
