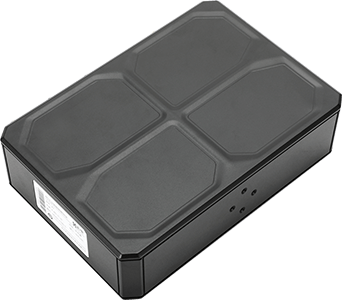

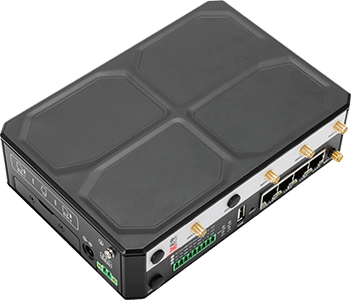

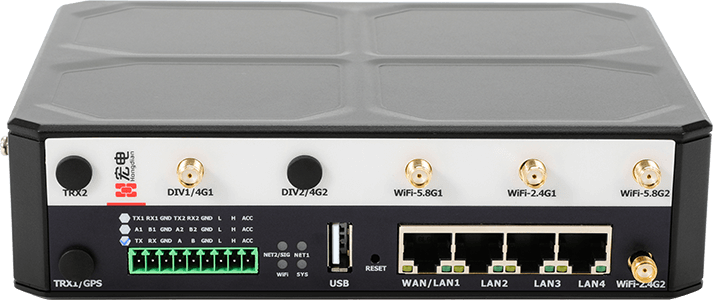

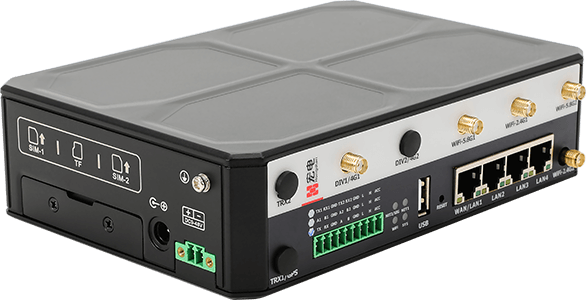

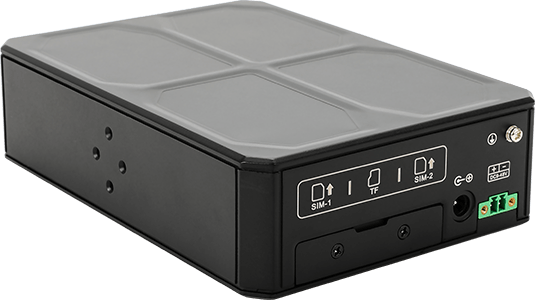

X2 Industrial Gateway

Features Tech Specs Downloads Ordering

Data Collection

Multi-interfaces: RS232/RS485/WAN/LAN/CAN/GPIO/USB
Compatible with mainstream industrial protocols, MQTT/HTTPS/CAN/MODBUS/DNP3. etc.

Devices Networking

Available with Cable, Wi-Fi, 3G, 4G, 5G-ready
Securer: virtual private network/private network, device identification and identity authentication, link detection and link failure self-recovery, watchdog

Edge Computing

Data storage, data management, data pre-analysis, data pre-processing
Embedded Data Processing Model, Predictive Analysis Model and Local Control Strategy

Cloud-based Management

Access Management, Status Monitoring, Upgrade Maintenance, Troubleshooting, User Authentication
Data Center + Analysis and Decision Platform

Industrial Grade

IP30 Protection Level, EMC4
Temperature and humidity test, Shockproof test, etc.

Open System Architecture

Third-party SDK supportable
Secondary development of C and python

Advanced hardware

4 core Qualcomm CPU
Wide Wi-Fi coverage

Hardware
CPU	Quad-core ARM Cortex A7, 717MHz
RAM	512MB
FLASH	32MB+8GB eMMC
SD card	TF card slot
USB	USB2.0
Cellular Interface
Modem	1 x LTE CAT4 or 2 x LTE CAT4 or1 x LTE CAT4 & 1 x 5G NR SA/NSA
Module Integration	mini PCIe or m.2

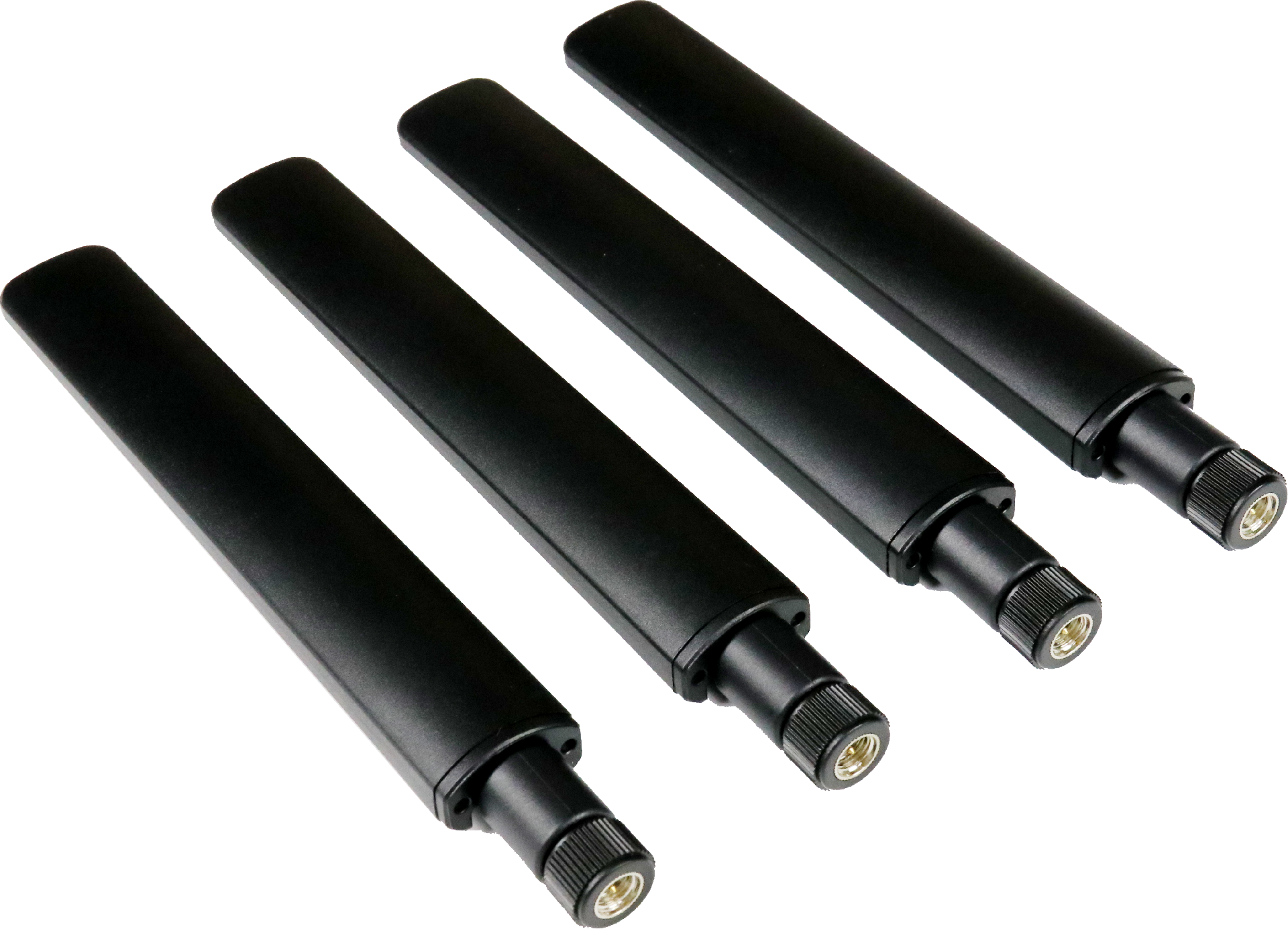

Number of Antennas	4
Connector	SMA-K
SIM	2 x Mini SIM (2FF)

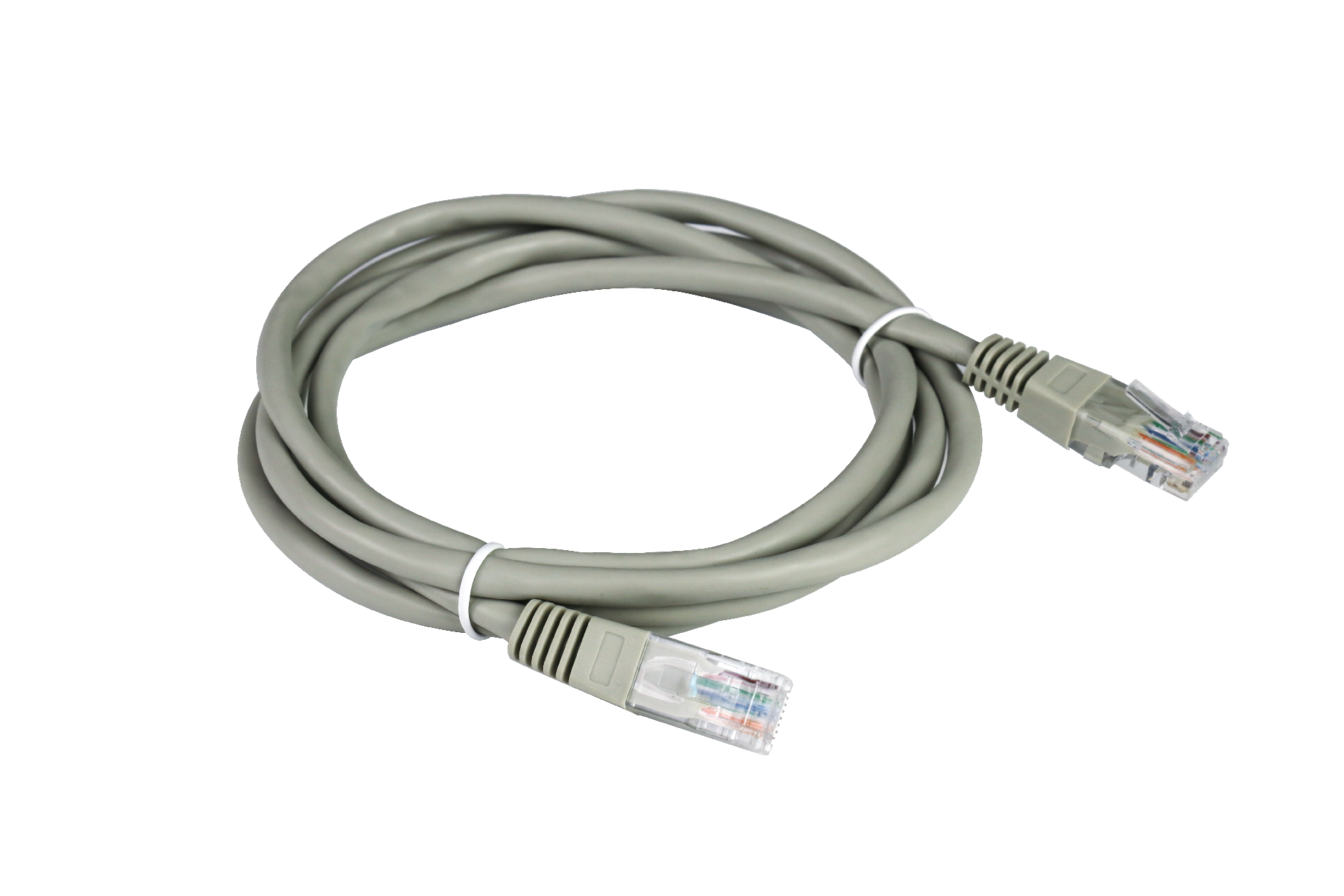

Ethernet Interface
Number of Ports	4 x 10/100/1000 Mbps, Gigabit Ethernet
Configuration	4 x LAN or 3 x LAN + 1 x WAN
PoE Output	N/A
Wireless Interface
Standards	802.11b/g/n/ac, AP or station modes
Frequency Bands	2.4 GHz & 5GHz
Speed	1167Mbps
Security	WEP, WPA, WPA2
Encryption	64/128 AES, TKIP

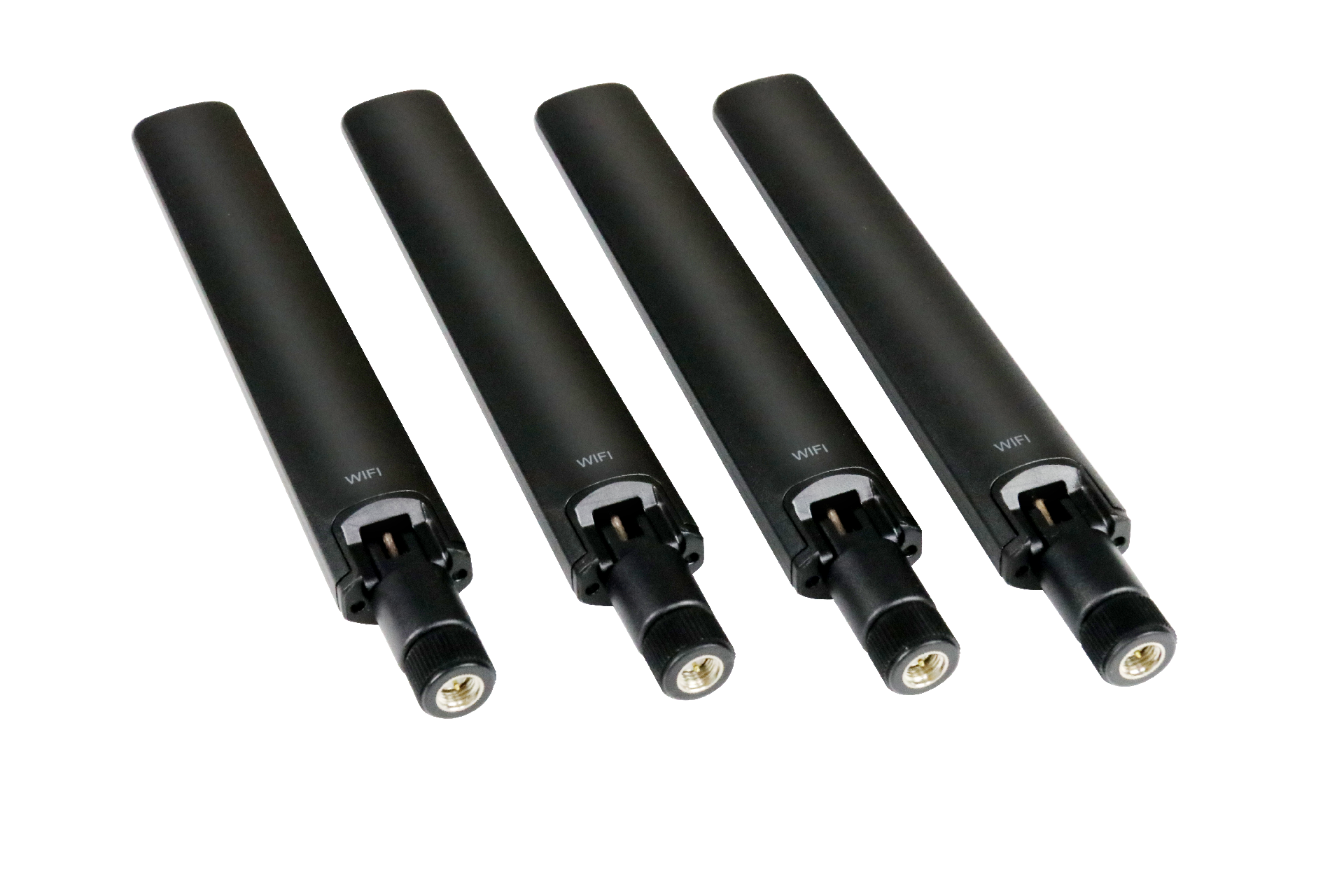

Antennas	4
Connector	SMA-K
GNSS Interface
Number of Antennas	1 (only for GPS version，Share with WiFi)
Connector	SMA-K with 50 ohms impedance
Dead Reckoning	N/A
Seiral Interface
Type	1 x RS-232 + 1 x RS-485 serial port
Socket Form	1 * 9-pin 3.5 mm female socket
Signal Definition	RX,TX,GND (RS-232) , A+,B-,GND (RS-485)
Baudrate	RS-232 (300-115200bps) RS-485 (300-115200bps)
ESD	15KV
Software
Auto Fail-over	Between: 2 Cellulars Cellular and WAN Cellular and Wi-Fi (station mode) WAN and Wi-Fi (station mode)
Network Protocols	PPP,PPPoE,TCP,UDP,IPv4,IPv6,SSL,DHCP,ICMP, NAT,HTTP,HTTPs, DNS, ARP,NTP,Telnet, SSH, DDNS, etc.
Routing	Static Routing, Policy routing, RIP, OSPF and BGP, etc
Firewall	NAT, PAT, DMZ, Port Forword IP/Domain/MAC Filter, Access Control List
VPN	PPTP/L2TP/GRE/IPSec/OpenVPN/DMVPN
Remote Management	HTTP, Telnet, SSH, SMS SNMP V1/V2/V3, SNMP TRAP Hongdian Wedora Cloud Platform
Serial Ports Function	Transparent, Modbus RTU, etc

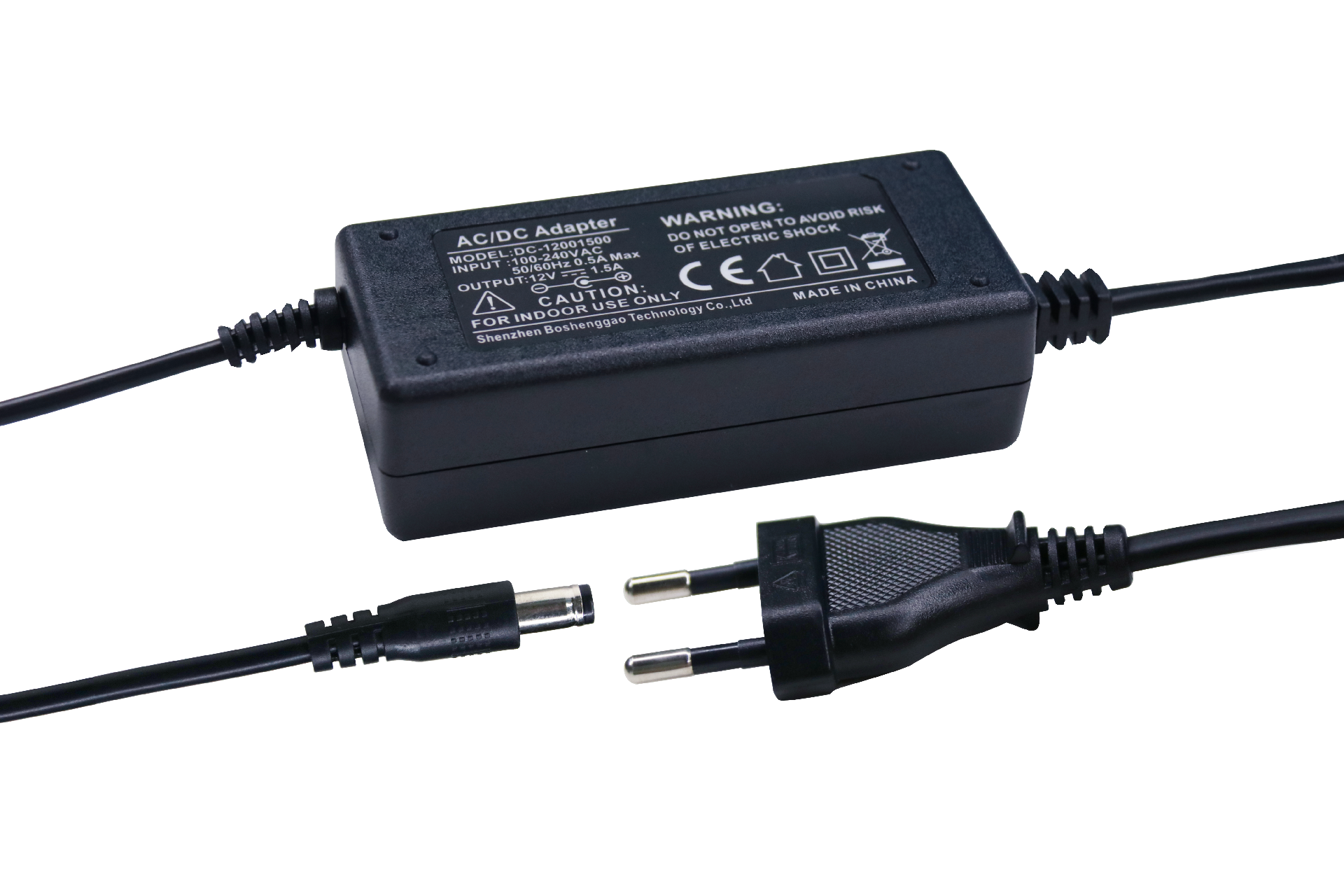

Power Supply and Consumption
Connector	DC socket or 2 pin socket
Voltage Input	+9V~+48V DC
Power Consumption	Idle: 400mA@12V DC Data transceiving: 2A@12V DC
Others
Reset Button	Yes
LED Indicators	4 indicators for WiFi, SIG, NET, SYS
Hardware Watchdog	Yes
Physical Characteristics
Ingress Protection	IP43
Housing & Weight	Metal, 900g
Dimension	180×125×48(mm)

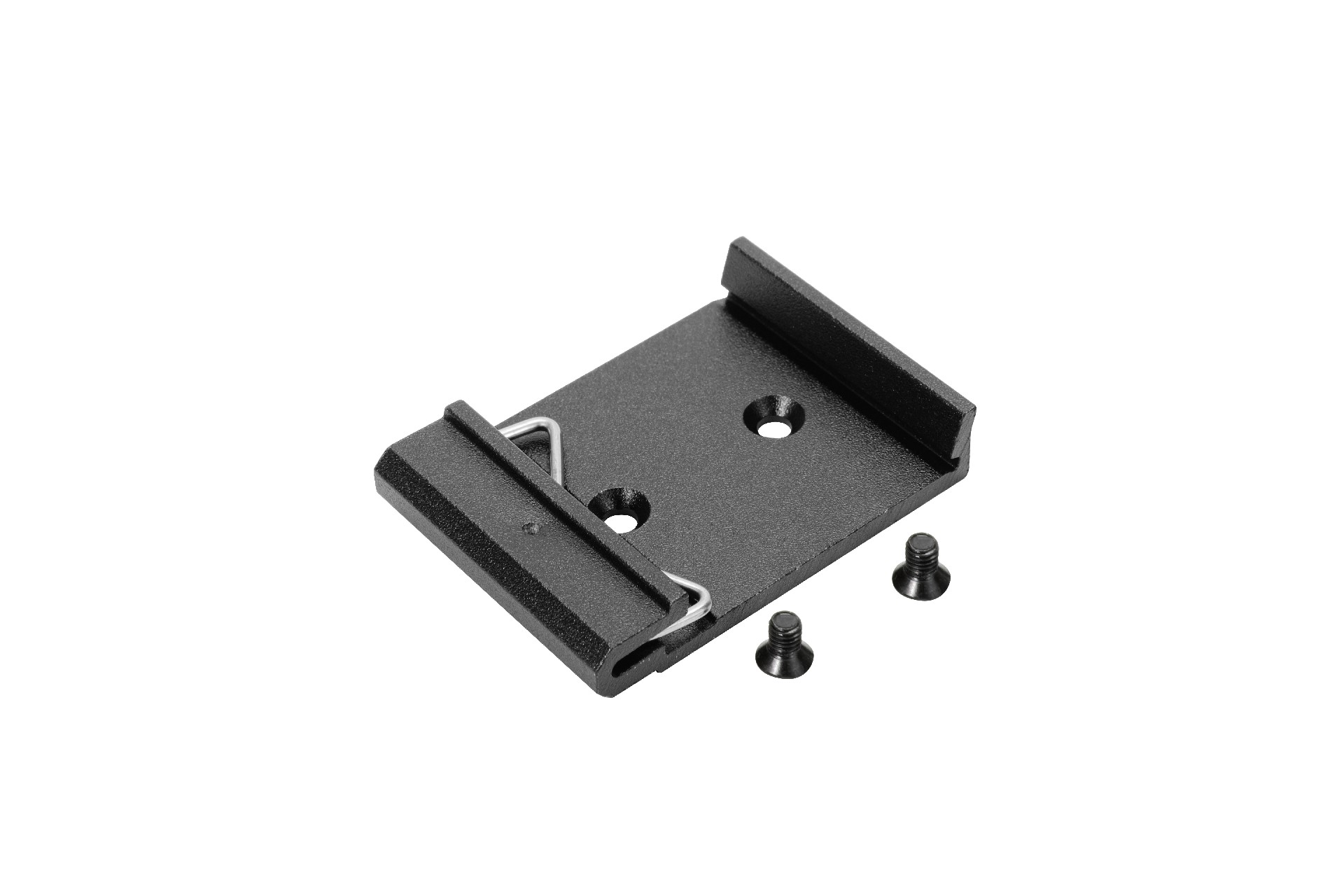

Installations	Desktop,35 mm DIN rail mounting
Operating Temperature	-30 ~ +75℃
Storage Temperature	-40 ~ +85 °C
Relative Humidity	5 ~ 95%
Certifications (*In progress)	CE, FCC

File Name

Hongdian Datasheet-X2 Industrial Gateway-2023V1.1

Download

Product	Part No.	Frequency	Interface						Region
Product	Part No.	Frequency	5G modem	4G modem	WLAN	RJ45	RS232	RS485	Region
X2	X2-2L100-4W-4R	4G(LTE-FDD): B1/B3/B5/B7/B8/B20 4G(LTE-TDD): B38/B40/B41 3G: B1/B5/B8 2G: B3/B8	-	2	2	4	-	-	Europe, the Middle East, Africa, Korea, Thailand, India, Malaysia
	X2-L100-4W-4R-CS		-	1	2	4	1	1	Europe, the Middle East, Africa, Korea, Thailand, India, Malaysia
	X2-2L108-4W-4R	4G(FDD-LTE): B1/B2/B3/B4/B5/B7/ B8/B28 4G(LTE-TDD): B40 3G: B2/B3/B5/B8	-	2	2	4	-	-	Oceania, South America
	X2-L108-4W-4R-CS		-	1	2	4	1	1	Oceania, South America
	X2-N005-4W-4R	NSA/SA: n1/n2/n3/n5/n7/n8/n12/n20/n25/n28/n38/n40/n41/n48*/n66/n71/n77/n78/n79 LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12(B17)/B13/B14/B18/B19/B20/B25/B26/B28/B29/B30/B32/B66/B71 LTE-TDD: B34/B38/B39/B40/B41/B42/B43/B48 LTE DL 4×4 MIMO: B1/B2/B3/B4/B7/B25/B30/B32/B34/B38/39/B40/B41/B42/B43/B48/B66 LAA: B46(only support 2×2 MIMO) WCDMA: B1/B2/B3/B4/B5/B6/B8/B19	1	-	2	4	-	-	Global
	X2-N005-4W-4R-CS		1	-	2	4	1	1	Global
