Industrial
Cellular Gateway
|

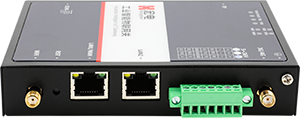

X1
|

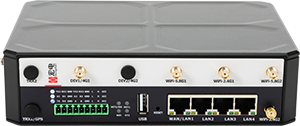

X2
|
Z1
|
Z2
|
|
Hardware
|
|
CPU
|
ARM Cortex-A7, 900MHz
|
Quad-core ARM Cortex A7, 717MHz
|
Quad-core ARM Cortex A7, 717MHz
|
Quad-core ARM Cortex A7, 717MHz
|
|
RAM
|
512MB
|
512MB
|
512MB
|
512MB
|
|
FLASH
|
8GB eMMC
|
32MB+8GB eMMC
|
32MB+8GB eMMC
|
32MB
|
|
SD card
|
TF card slot
|
TF card slot
|
Built-in TF card slot
|
TF card slot
|
|
USB
|
N/A
|
USB2.0
|
USB2.0
|
N/A
|
|
Cellular Interface
|
|
Modem
|
1 x LTE CAT4
|
1 x LTE CAT4 or 2 x LTE CAT4 or1 x LTE CAT4 & 1 x 5G NR SA/NSA
|
1 x 5G NR SA/NSA
|
1 x 5G NR SA/NSA
|
|
Module Integration
|
mini PCIe
|
mini PCIe or m.2
|
m.2 or mini PCIe
|
M.2
|
|
Number of Antennas
|
2
|
4
|
4
|
4
|
|
Connector
|
SMA-K
|
SMA-K
|
SMA-K
|
SMA-K
|
|
SIM
|
2 x Mini SIM (2FF)
|
2 x Mini SIM (2FF)
|
2 x Mini SIM (2FF)
|
2 x Mini SIM (2FF)
|
|
Ethernet Interface
|
|
Number of Ports
|
2 x 10/100 Mbps, Ethernet
|
4 x 10/100/1000 Mbps, Gigabit Ethernet
|
4 x 10/100/1000 Mbps, Gigabit Ethernet
|
2 x 10/100/1000 Mbps, Gigabit Ethernet
|
|
Configuration
|
2 x LAN or 1 x LAN + 1 x WAN
|
4 x LAN or 3 x LAN + 1 x WAN
|
4 x LAN or 3 x LAN + 1 x WAN
|
2 x LAN or 1 x LAN + 1 x WAN
|
|
PoE Output
|
N/A
|
N/A
|
N/A
|
N/A
|
|
Wireless Interface
|
|
Standards
|
802.11b/g/n, AP or station modes
|
802.11b/g/n/ac, AP or station modes
|
802.11b/g/n/ac, AP or station modes
|
802.11b/g/n, AP or station modes
|
|
Frequency Bands
|
2.4 GHz
|
2.4 GHz & 5GHz
|
2.4 GHz & 5GHz
|
2.4 GHz
|
|
Speed
|
150Mbps
|
1167Mbps
|
1167Mbps
|
150Mbps
|
|
Security
|
WEP, WPA, WPA2
|
WEP, WPA, WPA2
|
WEP, WPA, WPA2
|
WEP, WPA, WPA2
|
|
Encryption
|
64/128 AES, TKIP
|
64/128 AES, TKIP
|
64/128 AES, TKIP
|
64/128 AES, TKIP
|
|
Antennas
|
1
|
4
|
4
|
1
|
|
Connector
|
SMA-K
|
SMA-K
|
SMA-K
|
SMA-K
|
|
GNSS Interface
|
|
Number of Antennas
|
N/A
|
1 (only for GPS version，Share with WiFi)
|
1 (only for GPS version)
|
1 (only for GPS version，Share with WiFi)
|
|
Connector
|
SMA-K with 50 ohms impedance
|
SMA-K with 50 ohms impedance
|
SMA-K with 50 ohms impedance
|
|
Dead Reckoning
|
N/A
|
Optional
|
N/A
|
|
Seiral Interface
|
|
Type
|
1 x RS-232 + 1 x RS-485 serial port
|
1 x RS-232 + 1 x RS-485 serial port
|
1 RS-232 + 1 RS-485 serial port
|
1 x RS-232 + 1 x RS-485 serial port
|
|
Socket Form
|
1 * 7-pin 3.5 mm female socket
|
1 * 9-pin 3.5 mm female socket
|
1 * 7-pin 3.5 mm female socket
|
1 * 7-pin 3.5 mm female socket
|
|
Signal Definition
|
RX,TX,GND (RS-232) ,
A+,B-,GND (RS-485)
|
RX,TX,GND (RS-232) ,
A+,B-,GND (RS-485)
|
RX,TX,GND (RS-232) ,
A+,B-,GND (RS-485)
|
RX,TX,GND (RS-232) ,
A+,B-,GND (RS-485)
|
|
Baudrate
|
RS-232 (300-115200bps)
RS-485 (300-115200bps)
|
RS-232 (300-115200bps)
RS-485 (300-115200bps)
|
RS-232 (300-115200bps)
RS-485 (300-115200bps)
|
RS-232 (300-115200bps)
RS-485 (300-115200bps)
|
|
ESD
|
15KV
|
15KV
|
15KV
|
15KV
|
|
Software
|
|
Auto Fail-over
|
Between:
Cellular and WAN
Cellular and Wi-Fi (station mode)
WAN and Wi-Fi (station mode)
|
Between:
2 Cellulars
Cellular and WAN
Cellular and Wi-Fi (station mode)
WAN and Wi-Fi (station mode)
|
Between:
Cellular and WAN
Cellular and Wi-Fi (station mode)
WAN and Wi-Fi (station mode)
|
Between:
Cellular and WAN
Cellular and Wi-Fi (station mode)
WAN and Wi-Fi (station mode)
|
|
Network Protocols
|
PPP,PPPoE,TCP,UDP,IPv4,IPv6,SSL,DHCP,ICMP, NAT,HTTP,HTTPs, DNS, ARP,NTP,Telnet, SSH, DDNS, etc.
|
PPP,PPPoE,TCP,UDP,IPv4,IPv6,SSL,DHCP,ICMP, NAT,HTTP,HTTPs, DNS, ARP,NTP,Telnet, SSH, DDNS, etc.
|
PPP,PPPoE,TCP,UDP,IPv4,IPv6,SSL,DHCP,ICMP, NAT,HTTP,HTTPs, DNS, ARP,NTP,Telnet, SSH, DDNS, etc.
|
PPP,PPPoE,TCP,UDP,IPv4,IPv6,SSL,DHCP,ICMP, NAT,HTTP,HTTPs, DNS, ARP,NTP,Telnet, SSH, DDNS, etc.
|
|
Routing
|
Static Routing, Policy routing, RIP, OSPF and BGP, etc
|
Static Routing, Policy routing, RIP, OSPF and BGP, etc
|
Static Routing, Policy routing, RIP, OSPF and BGP, etc
|
Static Routing, Policy routing, RIP, OSPF and BGP, etc
|
|
Firewall
|
NAT, PAT, DMZ, Port Forword IP/Domain/MAC Filter, Access Control List
|
NAT, PAT, DMZ, Port Forword IP/Domain/MAC Filter, Access Control List
|
NAT, PAT, DMZ, Port Forword IP/Domain/MAC Filter, Access Control List
|
NAT, PAT, DMZ, Port Forword IP/Domain/MAC Filter, Access Control List
|
|
VPN
|
PPTP/L2TP/GRE/IPSec/OpenVPN/DMVPN
|
PPTP/L2TP/GRE/IPSec/OpenVPN/DMVPN
|
PPTP/L2TP/GRE/IPSec/OpenVPN/DMVPN
|
PPTP/L2TP/GRE/IPSec/OpenVPN/DMVPN
|
|
Remote Management
|
HTTP, Telnet, SSH, Hongdian Wedora Cloud Platform
|
HTTP, Telnet, SSH, SMS
SNMP V1/V2/V3, SNMP TRAP
Hongdian Wedora Cloud Platform
|
HTTP, Telnet, SSH, SMS
SNMP V1/V2/V3, SNMP TRAP
Hongdian Wedora Cloud Platform
|
HTTP, Telnet, SSH, SMS
SNMP V1/V2/V3, SNMP TRAP
Hongdian Wedora Cloud Platform
|
|
Serial Ports Function
|
Transparent, Modbus RTU, etc
|
Transparent, Modbus RTU, etc
|
Transparent, Modbus RTU, etc
|
Transparent, Modbus RTU, etc
|
|
Power Supply and Consumption
|
|
Connector
|
2 pin socket
|
DC socket or 2 pin socket
|
2 pin socket
|
2 pin socket
|
|
Voltage Input
|
5V~36V DC
|
+9V~+48V DC
|
+9V~+24V DC
|
+9V~+36V DC
|
|
Power Consumption
|
Idle:180mA@12V DC
Data transceiving: 300mA@12V DC
|
Idle: 400mA@12V DC
Data transceiving: 2A@12V DC
|
Idle: 450mA@12V DC
Data transceiving: 2.2A@12V DC
|
Idle: 350mA@12V DC
Data transceiving:1.3A@12V DC
|
|
Others
|
|
Reset Button
|
Yes
|
Yes
|
Yes
|
Yes
|
|
LED Indicators
|
4 indicators for SIG, SYS, NET, WiFi
4 indicators for PLA1, PLA2, TX1, TX2
|
4 indicators for WiFi, SIG, NET, SYS
|
4 indicators for WiFi, SIG, NET, SYS
|
4 indicators for WiFi, SIG, NET, SYS
|
|
Hardware Watchdog
|
Yes
|
Yes
|
Yes
|
Yes
|
|
Physical Characteristics
|
|
Ingress Protection
|
IP43
|
IP43
|
IP66
|
IP43
|
|
Housing & Weight
|
Metal,285g
|
Metal, 900g
|
Metal, 1860g
|
Metal,290g
|
|
Dimension
|
127×83×24(mm)
|
180×125×48(mm)
|
216×216×51.5(mm)
|
137.0×83.0×24.0(mm)
|
|
Installations
|
Desktop, wall mounting and DIN rail mounting
|
Desktop,35 mm DIN rail mounting
|
Desktop, wall mounting and surface mounting
|
Desktop, wall mounting and DIN rail mounting
|
|
Operating Temperature
|
-30 ~ +70 °C
|
-30 ~ +75℃
|
-30 ~ +70℃
|
-30 ~ +70℃
|
|
Storage Temperature
|
-40 ~ +85 °C
|
-40 ~ +85 °C
|
-40 ~ +85 °C
|
-40 ~ +85 °C
|
|
Relative Humidity
|
5 ~ 95%
|
5 ~ 95%
|
5 ~ 95%
|
5 ~ 95%
|
Certifications
(*In progress)
|
CE*, FCC*
|
CE*, FCC*
|
CE*, FCC*
|
CE*, FCC*
|
