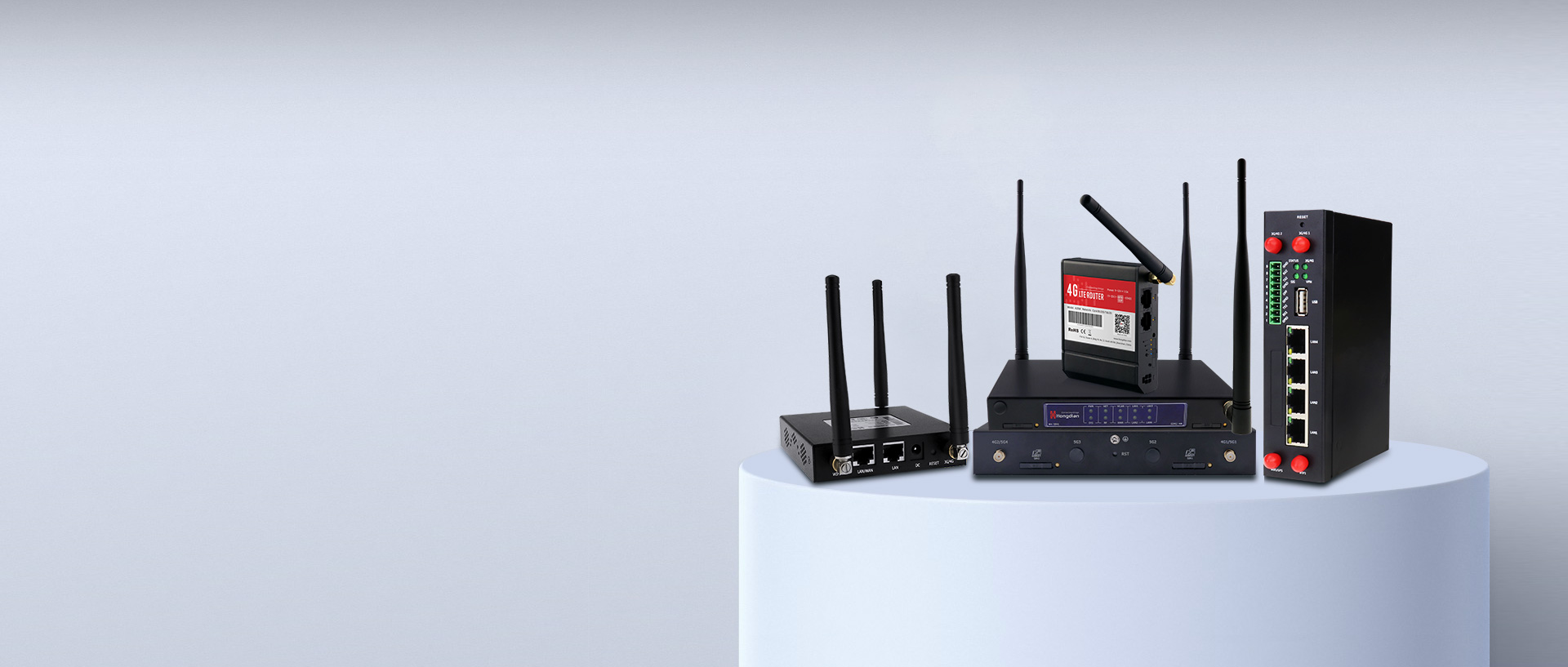

Cellular Router
|
A20M
|
H8951
|
H7960
|
H8922S
|
H8923S
|
|
Hardware
|
|
CPU
|
Mediatek MIPS 24Kc 580 MHz
|
Mediatek MIPS 24Kc 580 MHz
|
Mediatek MIPS 24Kc 580 MHz
|
Mediatek MIPS 24Kc 580 MHz
|
Mediatek MIPS1004Kc 880 MHz
|
|
RAM
|
64MB
|
128MB
|
128MB
|
128MB
|
256MB
|
|
FLASH
|
8MB
|
16MB
|
16MB
|
16MB
|
32MB
|
|
Cellular Interface
|
|
Modem
|
1 x LTE CAT1 or CAT4
|
1 x LTE CAT4
|
1 x LTE CAT4
|
1 or 2 x LTE CAT4
|
1 x 5G NR SA/NSA
|
|
Module integration
|
LGA
|
mini PCIe
|
mini PCIe
|
mini PCIe
|
mini PCIe
|
|
Number of antennas
|
1
|
2
|
2
|
2
|
4
|
|
Connector
|
SMA-K
|
SMA-K
|
SMA-K
|
SMA-K
|
SMA-K
|
|
SIM
|
1 x Mini SIM (2FF)
|
1 x Mini SIM (2FF)
|
2 x Mini SIM (2FF)
|
2 x Mini SIM (2FF)
|
2 x Mini SIM (2FF)
|
|
Ethernet Interface
|
|
Number of ports
|
2 x 10/100 Mbps, Ethernet
|
2 x 10/100 Mbps, Ethernet
|
4 x 10/100 Mbps, Ethernet
|
5 x 10/100 Mbps, Ethernet
|
5 x 10/100/1000 Mbps, Gigabit Ethernet
|
|
Configuration
|
2 x LAN or 1 x LAN + 1 x WAN
|
2 x LAN or 1 x LAN + 1 x WAN
|
4 x LAN or 3 x LAN + 1 x WAN
|
5 x LAN or 4 x LAN + 1 x WAN
|
4 x LAN + 1 x WAN
|
|
PoE output
|
N/A
|
N/A
|
POE+ 30W output × 4
|
N/A
|
N/A
|
|
Wireless interface
|
|
Standards
|
N/A
|
802.11b/g/n, AP or station mode
|
802.11b/g/n, AP or station mode
|
802.11b/g/n, AP or station mode
|
802.11b/g/n/ac, AP or station mode
|
|
Frequency bands
|
2.4 GHz
|
2.4 GHz
|
2.4 GHz
|
2.4 GHz & 5GHz
|
|
Speed
|
150Mbps
|
150Mbps
|
150Mbps
|
1167Mbps
|
|
Security
|
WEP, WPA, WPA2
|
WEP, WPA, WPA2
|
WEP, WPA, WPA2
|
WEP, WPA, WPA2
|
|
Encryption
|
64/128 AES, TKIP
|
64/128 AES, TKIP
|
64/128 AES, TKIP
|
64/128 AES, TKIP
|
|
Antennas
|
1
|
1
|
1
|
2x2 MIMO
(1 would be used in GPS version)
|
|
Connector
|
SMA-K
|
SMA-K
|
SMA-K
|
SMA-K
|
|
GNSS interface
|
|
Number of antennas
|
N/A
|
N/A
|
1 (only for GPS version)
|
1 (only for GPS version)
|
N/A
|
|
Connector
|
SMA-K with 50 ohms impedance
|
SMA-K with 50 ohms impedance
|
SMA-K with 50 ohms impedance
|
|
Dead Reckoning
|
Optional
|
N/A
|
N/A
|
|
Seiral interface
|
|
Type
|
N/A
|
N/A
|
1 x RS-232 + 1 x RS-485 serial port
|
1 x RS-232 + 1 x RS-485 serial port
|
1 RS-232 + 1 RS-485 serial port
|
|
Socket form
|
1 * 9-pin 3.5 mm female socket
|
1 * 6-pin 3.5 mm female socket
|
1 * 5-pin 3.5 mm female socket
|
|
Signal definition
|
RX,TX,GND (RS-232) ,
A+,B-,GND (RS-485)
|
RX,TX,GND (RS-232) ,
A+,B-,GND (RS-485)
|
RX,TX,GND (RS-232) ,
A+,B-,GND (RS-485)
|
|
Baudrate
|
RS-232 (300-115200bps)
RS-485 (300-115200bps)
|
RS-232 (300-115200bps)
RS-485 (300-115200bps)
|
RS-232 (300-115200bps)
RS-485 (300-115200bps)
|
|
ESD
|
15KV
|
15KV
|
15KV
|
|
Software
|
|
Auto fail-over
|
Between:
Cellular and WAN
|
Between:
Cellular and WAN
Cellular and Wi-Fi (station mode)
WAN and Wi-Fi (station mode)
|
Between:
Cellular and WAN
Cellular and Wi-Fi (station mode)
WAN and Wi-Fi (station mode)
|
Between:
2 Cellulars
Cellular and WAN
Cellular and Wi-Fi (station mode)
WAN and Wi-Fi (station mode)
|
Between:
Cellular and WAN
Cellular and Wi-Fi (station mode)
WAN and Wi-Fi (station mode)
|
|
Network protocols
|
PPP,PPPoE,TCP,UDP,DHCP,ICMP, NAT,HTTP,HTTPs, DNS, ARP,NTP,Telnet, SSH, DDNS, etc.
|
PPP,PPPoE,TCP,UDP,IPv4,IPv6,SSL,DHCP,ICMP, NAT,HTTP,HTTPs, DNS, ARP,NTP,Telnet, SSH, DDNS, etc.
|
PPP,PPPoE,TCP,UDP,IPv4,IPv6,SSL,DHCP,ICMP, NAT,HTTP,HTTPs, DNS, ARP,NTP,Telnet, SSH, DDNS, etc.
|
PPP,PPPoE,TCP,UDP,IPv4,IPv6,SSL,DHCP,ICMP, NAT,HTTP,HTTPs, DNS, ARP,NTP,Telnet, SSH, DDNS, etc.
|
PPP,PPPoE,TCP,UDP,IPv4,IPv6,SSL,DHCP,ICMP, NAT,HTTP,HTTPs, DNS, ARP,NTP,Telnet, SSH, DDNS, etc.
|
|
Routing
|
Static Routing, Policy routing
|
Static Routing, Policy routing, RIP, OSPF and BGP, etc
|
Static Routing, Policy routing, RIP, OSPF and BGP, etc
|
Static Routing, Policy routing, RIP, OSPF and BGP, etc
|
Static Routing, Policy routing, RIP, OSPF and BGP, etc
|
|
Firewall
|
NAT, PAT, DMZ, Port Forword IP/MAC Filter, Access Control List
|
|
NAT, PAT, DMZ, Port Forword IP/Domain/MAC Filter, Access Control List
|
NAT, PAT, DMZ, Port Forword IP/Domain/MAC Filter, Access Control List
|
NAT, PAT, DMZ, Port Forword IP/Domain/MAC Filter, Access Control List
|
|
VPN
|
L2TP, IPSec
|
PPTP/L2TP/GRE/IPSec/OpenVPN/DMVPN
|
PPTP/L2TP/GRE/IPSec/OpenVPN/DMVPN
|
PPTP/L2TP/GRE/IPSec/OpenVPN/DMVPN
|
PPTP/L2TP/GRE/IPSec/OpenVPN/DMVPN
|
|
Remote Management
|
HTTP, Telnet, SSH, Hongdian Wedora Cloud Platform
|
HTTP, Telnet, SSH, SMS
SNMP V1/V2/V3, SNMP TRAP
Hongdian Wedora Cloud Platform
|
HTTP, Telnet, SSH, SMS
SNMP V1/V2/V3, SNMP TRAP
Hongdian Wedora Cloud Platform
|
HTTP, Telnet, SSH, SMS
SNMP V1/V2/V3, SNMP TRAP
Hongdian Wedora Cloud Platform
|
HTTP, Telnet, SSH, SMS
SNMP V1/V2/V3, SNMP TRAP
Hongdian Wedora Cloud Platform
|
|
Serial ports function
|
N/A
|
N/A
|
Transparent, Modbus RTU, etc
|
Transparent, Modbus RTU, etc
|
Transparent, Modbus RTU, etc
|
|
Power Supply and Consumption
|
|
Connector
|
4 pin socket
|
DC socket
|
4 pin socket
|
DC socket
|
DC socket
|
|
Voltage input
|
9V~12V DC
|
+5V~+36V DC
|
+9V~+54V DC
|
+5V~+36V DC
|
+9V~+36V DC
|
|
Power consumption
|
Idle:100mA@12V DC
Data transceiving: 270mA@12V DC
|
Idle: 100mA@12V DC
Data transceiving: 350mA@12V DC
|
Idle: 100mA@12V DC
Data transceiving: 350mA@12V DC
|
Idle: 200mA@12V DC
Data transceiving:550mA@12V DC
|
Idle: 350mA@12V DC
Data transceiving:900mA@12V DC
|
|
Others
|
|
Reset button
|
Yes
|
Yes
|
Yes
|
Yes
|
Yes
|
|
LED indicators
|
1 indicators for SYS
3 indicators for SIG
|
4 indicators for WiFi, RF, NET, SYS
|
4 indicators for SYS, SIG, NEY, WIFI
|
10 indicators for PWR, SYS, WAN, LAN1~LAN4, RF, NET, WLAN
|
9 indicators for PWR, NET1, NET2, DATA, WIFI2.4GHz, WIFI5GHz, Signal
|
|
Hardware watchdog
|
Yes
|
Yes
|
Yes
|
Yes
|
Yes
|
|
Physical Characteristics
|
|
Ingress protection
|
IP30
|
IP30
|
IP30
|
IP30
|
IP30
|
|
Housing & Weight
|
Aluminium housing, plastic panels , 120g
|
Metal, 300g
|
Metal, 480g
|
Metal, 540g
|
Metal, 550g
|
|
Dimension
|
93.7×74.9×23.7(mm)
|
99.7×98.8×23.4(mm)
|
147×98×36.6(mm)
|
176×105×25(mm)
|
177.8×105.2×28.5(mm)
|
|
Installations
|
Desktop, wall mounting and 35 mm DIN rail mounting
|
Desktop, wall mounting
|
Desktop, wall mounting and 35 mm DIN rail mounting
|
Desktop, wall mounting
|
Desktop, wall mounting
|
|
Operating temperature
|
-30 ~ +75 °C
|
-30 ~ +75℃
|
-30 ~ +70℃
|
-30 ~ +70℃
|
-30 ~ +75 °C
|
|
Storage temperature
|
-40 ~ +85 °C
|
-40 ~ +85 °C
|
-40 ~ +85 °C
|
-40 ~ +85 °C
|
-40 ~ +85 °C
|
|
Relative humidity
|
≤95%(no condensing)
|
≤95%(no condensing)
|
≤95%(no condensing)
|
≤95%(no condensing)
|
≤95%(no condensing)
|
Certifications
(*In progress)
|
CE, RoHS
|
CE, FCC, AT&T, Verizon, T-mobile
|
CE, FCC*
|
CE, FCC*
|
CE*, FCC*
|
