Hongdian X1 4G Industrial Gateway

Hardware
CPU	ARM Cortex-A7 @900MHz
RAM	512MB
FLASH	8GB eMMC
Cellular Interface
Modem	1 x LTE CAT1/CAT4
Number of Antennas	2
Connector	SMA-K
SIM	2 x Mini SIM (2FF)
Wireless Interface
Standards	802.11b/g/n, AP or station modes
Frequency Bands	2.4 GHz
Speed	150Mbps
Security	WEP, WPA, WPA2
Encryption	64/128 AES, TKIP

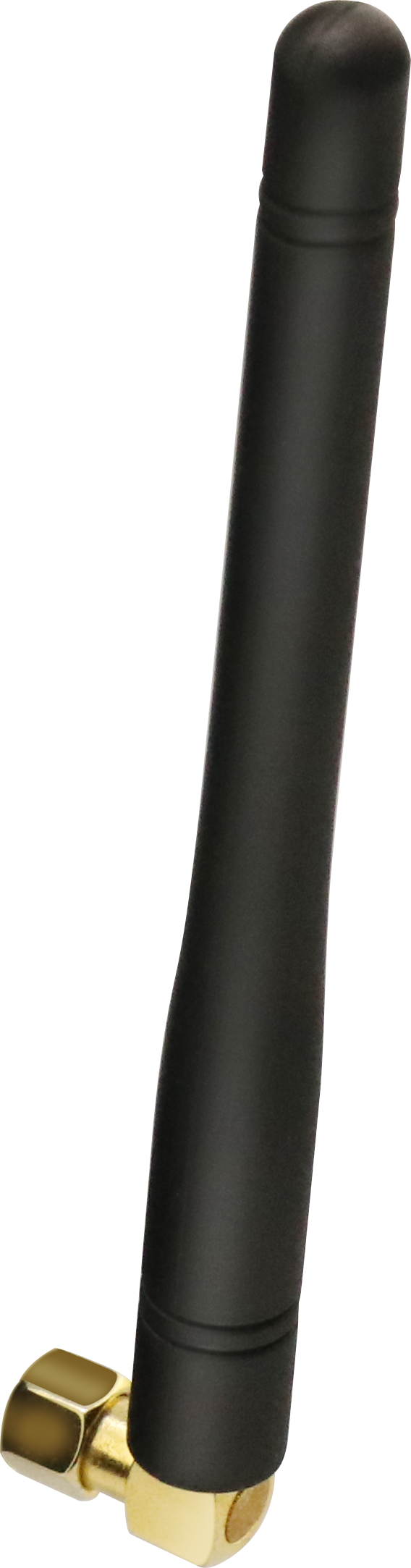

Antennas	1
Connector	SMA-K
GNSS Interface
Number of Antennas	N/A
Connector
Dead Reckoning
Peripheral Interface
Ethernet	1 × LAN 10/100Mbps + 1 × WAN/LAN 10/100Mbps, Ethernet
Serial Type	1 x RS-232 + 1 x RS-485 serial port
Socket Form	1 x 7-pin 3.5 mm female socket
Signal Definition	RX,TX,GND (RS-232) A+,B-,GND (RS-485)
Baudrate	RS-232 (300-115200bps) RS-485 (300-115200bps)
AVOUT	N/A
GPIO	N/A
SD card	TF card slot
USB	N/A
Video port	N/A
Audio Port	N/A
Software
Auto Fail-over	Between: Cellular and WAN Cellular and Wi-Fi (station mode) WAN and Wi-Fi (station mode)
Network Protocols	PPP, PPPoE, TCP, UDP, IPv4, IPv6, SSL, DHCP, ICMP, NAT, HTTP, HTTPs, DNS, ARP, NTP, Telnet, SSH, DDNS, etc.
Routing	Static Routing, Policy routing, RIP, OSPF and BGP, etc.
Firewall	NAT, PAT, DMZ, Port Forword IP/Domain/MAC Filter, Access Control List
VPN	PPTP/L2TP/GRE/IPSec/OpenVPN/DMVPN
Remote Management	HTTP, Telnet, SSH, Hongdian Wedora Cloud Platform
Serial Ports Function	Transparent, Modbus RTU, etc.
Power Supply and Consumption
Connector	2 pin socket
Voltage Input	+5V~+36V DC
Power Consumption	Idle:180mA@12V DC Data transceiving: 300mA@12V DC
Others
Reset Button	Yes
LED Indicators	4 x indicators for SIG, SYS, NET, WiFi 4 x indicators for PLA1, PLA2, TX1, TX2
Hardware Watchdog	Yes
Physical Characteristics
Ingress Protection	IP43
Housing & Weight	Metal,285g
Dimension	127×83×24(mm)
Installations	Desktop, wall mounting and DIN rail mounting
Operating Temperature	-30 ~ +70 °C
Storage Temperature	-40 ~ +85 °C
Relative Humidity	5 ~ 95%
EMC
ESD	EN61000-4-2, level3
RS	EN 61000-4-3, level3
EFT	EN 61000-4-4, level3
CS	EN 61000-4-6, level3

File Name

Datasheet-X1 4G Industrial Gateway

Download

Part No.	Modem	Region*	Band	RS-232	RS-485	WIFI	Ethernet	TF Slot
X1-L4EA-CS-rW	LTE Cat4	EA	LTE-FDD:B1/3/5/7/8/20 LTE-TDD:B38/40/41 WCDMA:B1/5/8 GSM/EDGE:B3/8	1	1	802.11n 1x1 MIMO	2	1
X1-L4EU-CS-rW	LTE Cat4	EU	LTE FDD:B1/3/5/7/8/20/28 LTE TDD:B38/40/41 WCDMA:B1/5/8 GPRS/EDGE:B3/8	1	1	802.11n 1x1 MIMO	2	1
X1-L4NA-CS-rW	LTE Cat4	NA	LTE-FDD:B2/4/5/12/13/14/66/71 WCDMA:B2/4/5	1	1	802.11n 1x1 MIMO	2	1
X1-L4LN-CS-rW	LTE Cat4	LN	LTE-FDD:B1/2/3/4/5/7/8/28 LTE-TDD:B40 WCDMA:B1/5/8 GPRS/EDGE:B3/8	1	1	802.11n 1x1 MIMO	2	1

Region*:

EA-EMEA(Europe, the Middle East, Africa)/APAC

EU-EMEA(Europe, the Middle East, Africa)/APAC(Non-CN/JP)/Brazil

NA-North America

LN-Latin America / Australia and New Zealand
