Hongdian H8959 Industrial 4G Cellular VPN Router for IoT Connectivity & Remote Monitoring

Always-online connectivity

4G/WiFi/Ethernet can be configured as link-backup mode for Internet auto-failover

Industrial-Grade Stability

Hardware watchdog & software defined auto-recovery mechanism in HongdianOS

Data protection

Advanced VPN protocols integrated, provide secure M2M communication network

Market-Proven Reliability

Widely deployed and helping customer to win their business globally

Hardware
CPU	MIPS 24Kc @580 MHz
RAM	128MB
FLASH	16MB
Cellular Interface
Modem	1 x LTE CAT1/CAT4
Number of antennas	2
Connector	SMA-K
SIM	1 x Mini SIM (2FF)

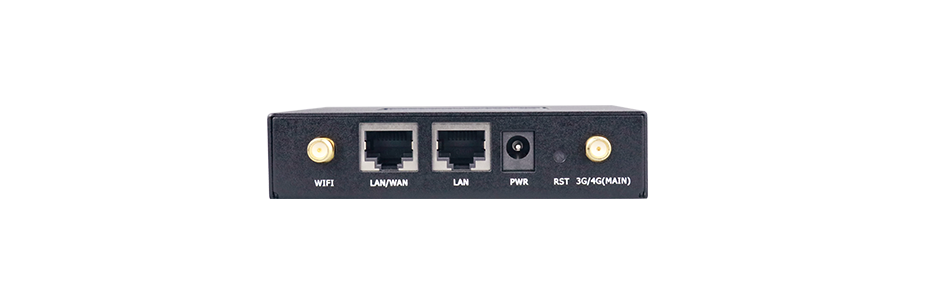

Ethernet Interface
Number of ports	2 x 10/100 Mbps, Ethernet
Configuration	1×WAN/LAN +1×LAN
Wireless interface
Standards	802.11b/g/n, AP or station mode
Frequency bands	2.4 GHz
Speed	150Mbps
Security	WEP, WPA, WPA2
Encryption	64/128 AES, TKIP
Antennas	1
Connector	RP SMA-K
Software
Auto fail-over	Between: Cellular and WAN Cellular and Wi-Fi (station mode) WAN and Wi-Fi (station mode)
Network protocols	PPP, PPPoE, TCP, UDP, IPv4, IPv6, SSL, DHCP, ICMP, NAT, HTTP, HTTPs, DNS, ARP, NTP, Telnet, SSH, DDNS, etc.
Network	APN, VPDN, VLAN, QoS
Routing	Static Routing, Policy routing, RIP, OSPF and BGP, etc.
Firewall	NAT, PAT, DMZ, Port Forword IP/Domain/MAC Filter, Access Control List
Attack Prevention	DDoS prevention, Anti port scanning
VPN	PPTP/L2TP/GRE/IPSec/OpenVPN/DMVPN/WireGuard
IPsec Encryption	DES, 3DES, AES128, AES192, AES256
OpenVPN Encryption	BF-CBC, DES-CBC, RC2-CBC, DES-EDE-CBC, DES-EDE3-CBC, DESX-CBC, RC2-40-CBC, CAST5-CBC, RC2-64-CBC, AES-128-CBC, AES-192-CBC, AES-256-CBC, SEED-CBC
Remote Management	HTTP, Telnet, SSH, SMS, SNMP V1/V2/V3, SNMP TRAP, Hongdian Sandora Cloud Platform, SDLAN
Serial ports function	N/A
Power Supply and Consumption
Power Connector	DC Jack
Voltage input	+9V~+12V DC
Power consumption	Idle: 100mA@12V DC Data transmission: 350mA@12V DC
Others
Reset button	Yes

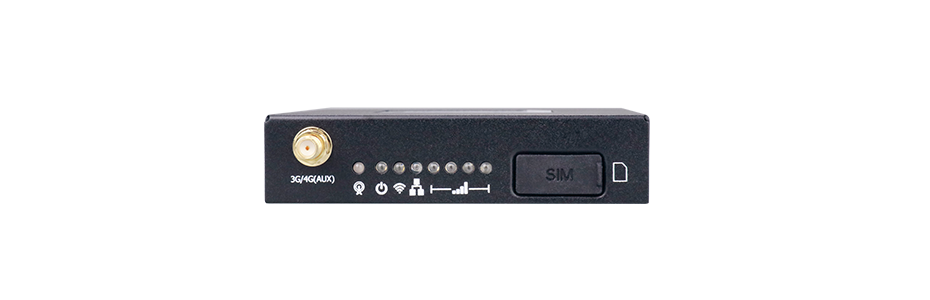

LED indicators	8 x indicators for Modem, Power, WLAN, Ethernet and Signals
Hardware watchdog	Yes
Physical Characteristics
Ingress protection	IP30
Housing & Weight	Metal, 300g
Dimensions (W×D×H)	98.8 × 102.8 × 23.4(mm)
Installation	Desktop, wall mounting
Operating temperature	-30 ~ +75℃
Storage temperature	-40 ~ +85 °C
Relative humidity	0~95%(no condensation)
EMC
ESD	EN61000-4-2, level3
RS	EN 61000-4-3, level3
EFT	EN 61000-4-4, level3
CS	EN 61000-4-6, level3
Certifications	CE, FCC,Verizon,Sprint,PTCRB,IC,JATE+MIC,VCCI,RCM

File Name

Part No.	Modem	Region*	RS-232	RS-485	WiFi	Band	Ethernet
H8959-L4NA-rW	Single LTE Cat4	NA	-	-	PR-SMA, 1×1 SISO	LTE-FDD:B2/4/12 WCDMA:B2/4/5	2
H8959-L4GL-rW	Single LTE Cat4	GL	-	-	PR-SMA, 1×1 SISO	LTE FDD: B1/2/3/4/5/7/8/12/13/18/19/20/25/26/28 LTE-TDD: B38/39/40/41 UMTS: B1/2/4/5/6/8/19 GSM: B2/3/5/8	2
H8959-L4EA-rW	Single LTE Cat4	EA	-	-	PR-SMA, 1×1 SISO	LTE FDD:B1/3/5/7/8/20/28 LTE TDD:B38/40/41 WCDMA:B1/5/8 GPRS/EDGE:B3/8	2
H8959-L4JP-rW	Single LTE Cat4	JP	-	-	PR-SMA, 1×1 SISO	LTE-FDD:B1/3/8/18/19/26 LTE-TDD:B41 WCDMA:B1/6/8/19	2

Region*:

GL-Global

EA-EMEA(Europe, the Middle East, Africa)/APAC

NA-North America

JP-Japan

H8959 LTE VPN Router
