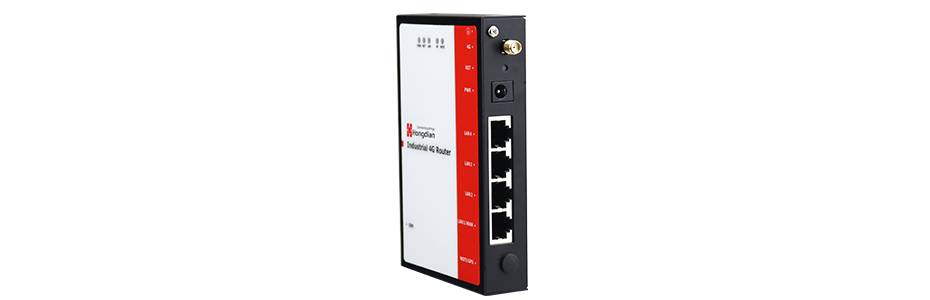

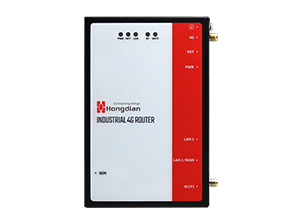

Hongdian H8850 4G Router

Product Introduction

H8850 4G router is a compact router designed to provide terminal and local network services for users. Integrated with Hongdian's management platform, it enables centralized device management. Functionally positioned as a general-purpose terminal, the H8850 offers essential network capabilities and supports standard router port functionalities. It is suitable for various application scenarios such as commercial networking, office environments, and self-service terminal connectivity.

Features Tech Specs Downloads

Industrial-Grade Compact Design

IP30-rated metal enclosure with system isolation
Compact structure for easy installation

Multi-Redundant Reliability

Multi-redundancy backup for reliable transmission
Hardware watchdog for automatic failure recovery
Multi-layer link detection mechanism

Cloud-Based Management

Sandora cloud platform for operations management
Remote device management/maintenance (reduces O&M costs)

GPS Positioning Capability

Integrated GPS positioning functionality

Hardware
CPU	MIPS 24Kc @580 MHz
RAM	128MB
FLASH	16MB
Cellular Interface
Modem	1 x LTE CAT1/CAT4
Number of antennas	1
Connector	SMA-K
SIM	2
Ethernet Interface
Number of ports	4
Configuration	3×LAN 10/100Mbps+1×WAN/LAN 10/100Mbps, Ethernet
Wireless interface	Optional
Standards	802.11b/g/n, AP or station modes
Frequency bands	2.4 GHz
Speed	150Mbps
Security	WEP, WPA, WPA2
Encryption	64/128 AES, TKIP
Antennas	1
Connector	SMA-K
GPS interface	Optional
Number of antennas	1
Connector	SMA-K
Software
Auto fail-over	Between: Cellular and WAN Cellular and Wi-Fi (station mode) WAN and Wi-Fi (station mode)
Network protocols	PPP,PPPoE,TCP,UDP,IPv4,IPv6,SSL,DHCP,ICMP, NAT,HTTP,HTTPs, DNS, ARP,NTP,Telnet, SSH, DDNS, etc.
Network	APN, VPDN, VLAN, QoS
Routing	Static Routing, Policy routing, RIP, OSPF and BGP, etc
Firewall	NAT, PAT, DMZ, Port Forword IP/Domain/MAC Filter, Access Control List
VPN	PPTP/L2TP/GRE/IPSec/OpenVPN/DMVPN
Attack Prevention	DDOS prevention, Anti port scanning
Ipsec Encryption	DES, 3DES, AES128, AES192, AES256
OpenVPN Encryption	BF-CBC, DES-CBC, RC2-CBC, DES-EDE-CBC, DES-EDE3-CBC, DESX-CBC, RC2-40-CBC, CAST5-CBC, RC2-64-CBC, AES-128-CBC, AES-192-CBC, AES-256-CBC, SEED-CBC
Remote Management	HTTP, Telnet, SSH, SMS, SNMP V1/V2/V3, SNMP TRAP, Hongdian Sandora Platform, SDLAN
Power Supply and Consumption
Power Connector	DC socket
Voltage input	+5V~+36V DC
Power consumption	Idle: 50mA@12V DC Data transceiving:250mA@12V DC
Others
Reset button	Yes
LED indicators	5 indicators for Wi-Fi(Reserved), RF, NET, PWR,LAN
Hardware watchdog	Yes
Physical Characteristics
Ingress protection	IP30
Housing & Weight	Metal,270g
Dimension	127×83×24(mm)

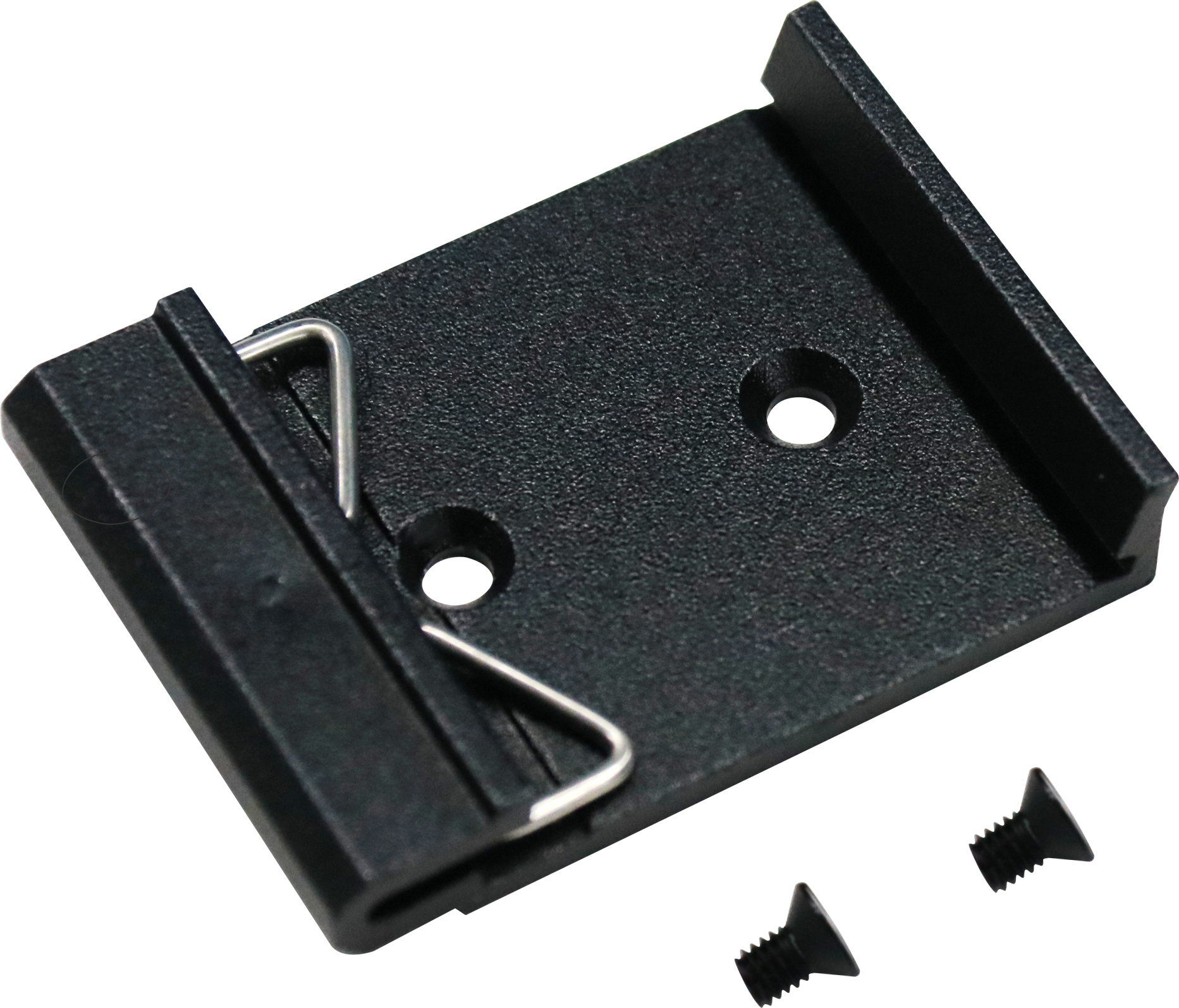

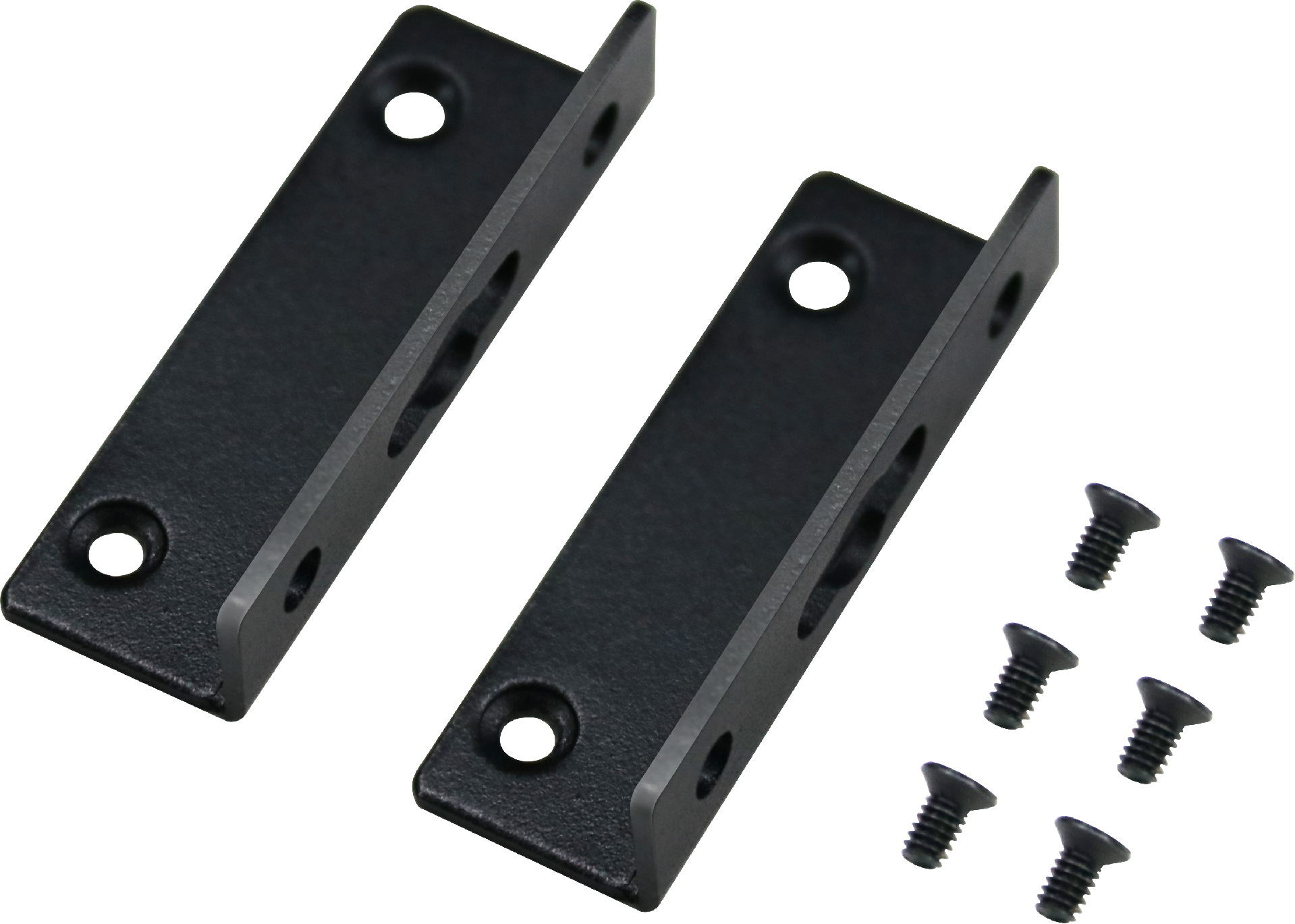

Installations	Desktop, wall mounting and DIN rail mounting
Operating temperature	-30 ~ +75 °C
Storage temperature	-40 ~ +85 °C
Relative humidity	5 ~ 95% RH
EMC
ESD	EN61000-4-2, level3
RS	EN 61000-4-3, level3
EFT	EN 61000-4-4, level3
CS	EN 61000-4-6, level3
