IIoT Gateways
Industrial IoT Gateways provide rugged cellular wireless connection and edge data pre-process for remote data collection, edge computing, preventive maintenance for industrial IoT applications such as PLC remote management, SCADA system, AGV networking, etc.
contact us
Product Value
High-speed 5G data transmission
Meet the high bandwidth and latency requirements of industrial equipment digitization

01

Multi-protocol analysis
Many equipment in industrial scenarios have different protocols and our gateway can effectively solve the communication difficulties

02

Safe 5G private network
Meet high security requirements of industrial data which cannot leave the factory

03

Flexible network deployment
Continuous network meets the needs of production areas, office areas, and warehousing areas

04

Product Advantages
Remote machine predictive maintenance
Industrial Protocols and PLC drivers
Edge computing capability with docker containers
Robust EMI immunity industrial deployments
IIoT Gateways Series
X1 4G Industrial Gateway
  • LTE Cat1/Cat4 with industrial CPU
  • Data acquisition and edge processing
  • Support various industrial protocols
  • Programable with C and python
LEARN MORE

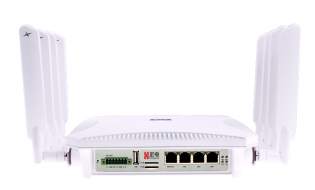

Z1 5G Industrial Outdoor Gateway
  • Enhanced 5G download rate
  • Dividing VLAN, network isolation
  • IP66 protection
  • Support Hongdian Wedora RMS for cloud based management
LEARN MORE
Z2 5G Industrial Gateway
  • 5G broadband with extreme low latency
  • Data acquisition and edge processing
  • Dividing VLAN, network isolation
  • With wide temperature and resistance to strong electromagnetic interference
LEARN MORE
Z4 Edge Computing Gateway
  • Global Cellular Communication & Remote Management
  • Powerful System Performance & Rich Hardware Interfaces
  • Integrated Industrial Data & Security Features
  • Easy APP Development & Deployment
LEARN MORE
Application
5G Intelligent Agriculture
// Agriculture
5G Smart Factory
// Enterprise Network
HVAC Network Solution
// Smart City
Intelligent Transformer Substation
// Energy Management
Power Distribution
// Energy Management
CNC/PLC
// Industrial Automation
Product Comparison Table
Product

Industrial

Cellular Gateway

X1 Z1 Z2 H6210-BLE H6212
Hardware
CPU ARM Cortex-A7 @900MHz Quad-core ARM Cortex A7 @717MHz Quad-core ARM Cortex A7 @717MHz ARM Cortex-A5 @500MHz Quad-core ARM Cortex-A7 @1.3GHz
RAM 512MB 512MB 512MB N/A 256MB
FLASH 8GB eMMC 32MB+8GB eMMC 32MB+8GB eMMC N/A 4GB eMMC
Cellular Interface
Modem 1 x  LTE CAT1/CAT4 1 x  5G NR SA/NSA 1 x  5G NR SA/NSA 1 x  LTE CAT1 1 x  LTE CAT1
Number of Antennas 2 4 4 1 1
Connector SMA-K SMA-K SMA-K SMA-K N/A
SIM 2 x Mini SIM (2FF) 2 x Mini SIM (2FF) 2 x Mini SIM (2FF) 1 x Mini SIM (2FF)(eSIM Optional) 1 x Mini SIM (2FF)
Wireless Interface
Standards 802.11b/g/n, AP or station modes 802.11b/g/n/ac, AP or station modes 802.11b/g/n, AP or station modes N/A N/A
Frequency Bands 2.4 GHz 2.4 GHz & 5GHz 2.4 GHz
Speed 150Mbps 1300Mbps 150Mbps
Security WEP, WPA, WPA2 WEP, WPA, WPA2 WEP, WPA, WPA2
Encryption 64/128 AES, TKIP 64/128 AES, TKIP 64/128 AES, TKIP
Antennas 1 4 1
Connector SMA-K SMA-K SMA-K
GNSS Interface
Number of Antennas N/A 1 (only for GPS version) 1 (only for GPS version，Share with WiFi) N/A N/A
Connector SMA-K with 50 ohms impedance SMA-K with 50 ohms impedance
Dead Reckoning Optional N/A
Peripheral Interface
Ethernet 1 × LAN 10/100Mbps + 1 × WAN/LAN 10/100Mbps, Ethernet 3 × LAN 10/100/1000 Mbps + 1 × WAN/LAN 10/100/1000 Mbps, Gigabit Ethernet 1 × LAN 10/100/1000 Mbps + 1 × WAN/LAN 10/100/1000 Mbps, Gigabit Ethernet N/A N/A
Serial Type 1 x RS-232 + 1 x RS-485 serial port 1 x RS-232 + 1 x RS-485 serial port 1 x RS-232 + 1 x RS-485 serial port 1 x RS-232 + 1 x RS-485 serial port 1 x RS-232(RS-485 optional), 4pin Wafer interface
Socket Form 1 x 7-pin 3.5 mm female socket 1 x 7-pin 3.5 mm female socket 1 x 7-pin 3.5 mm female socket 1 x 12-pin 3.5 mm female socket Wafer interface
Signal Definition RX,TX,GND (RS-232)
A+,B-,GND (RS-485) 		RX,TX,GND (RS-232)
A+,B-,GND (RS-485) 		RX,TX,GND (RS-232)
A+,B-,GND (RS-485) 		RX,TX,GND (RS-232)
A+,B-,GND (RS-485) 		RX,TX,GND (RS-232)
A+,B-,GND (RS-485)
Baudrate RS-232 (300-115200bps)
RS-485 (300-115200bps) 		RS-232 (300-115200bps)
RS-485 (300-115200bps) 		RS-232 (300-115200bps)
RS-485 (300-115200bps) 		RS-232 (300-115200bps)
RS-485 (300-115200bps) 		RS-232 (300-115200bps)
RS-485 (300-115200bps)
AVOUT N/A N/A N/A 1 x AVOUT(0-10V) N/A
GPIO N/A N/A N/A 2 x GPIO 1 x GPIO
SD card TF card slot Built-in TF card slot TF card slot N/A N/A
USB N/A USB2.0 N/A 1 x USB 2.0 OTG, 5pin Wafer pot, 2 x USB 2.0 Host, Double USB-A socket
Video port N/A 1 x HDMI OUT
Audio Port N/A 1 x 2 pin Wafer port (no more than 3W)
Software
Auto Fail-over Between:
Cellular and WAN
Cellular and Wi-Fi (station mode)
WAN and Wi-Fi (station mode) 		Between:
Cellular and WAN
Cellular and Wi-Fi (station mode)
WAN and Wi-Fi (station mode) 		Between:
Cellular and WAN
Cellular and Wi-Fi (station mode)
WAN and Wi-Fi (station mode) 		N/A N/A
Network Protocols PPP, PPPoE, TCP, UDP, IPv4, IPv6, SSL, DHCP, ICMP, NAT, HTTP, HTTPs, DNS, ARP, NTP, Telnet, SSH, DDNS, etc. PPP, PPPoE, TCP, UDP, IPv4, IPv6, SSL, DHCP, ICMP, NAT, HTTP, HTTPs, DNS, ARP, NTP, Telnet, SSH, DDNS, etc. PPP, PPPoE, TCP, UDP, IPv4, IPv6, SSL, DHCP, ICMP, NAT,HTTP,HTTPs, DNS, ARP, NTP, Telnet, SSH, DDNS, etc. PPP, TCP, UDP, IPv4, SSL, DHCP, ICMP, NAT, HTTP, HTTPs, DNS, ARP, NTP, Telnet, SSH, DDNS, etc. PPP, TCP, UDP, IPv4, SSL, DHCP, ICMP, NAT, HTTP, HTTPs, DNS, ARP, NTP, Telnet, SSH, DDNS, etc.
Routing Static Routing, Policy routing, RIP, OSPF and BGP, etc. Static Routing, Policy routing, RIP, OSPF and BGP, etc. Static Routing, Policy routing, RIP, OSPF and BGP, etc. N/A N/A
Firewall NAT, PAT, DMZ, Port Forword IP/Domain/MAC Filter, Access Control List NAT, PAT, DMZ, Port Forword IP/Domain/MAC Filter, Access Control List NAT, PAT, DMZ, Port Forword IP/Domain/MAC Filter, Access Control List NAT, PAT, DMZ NAT, PAT, DMZ
VPN PPTP/L2TP/GRE/IPSec/OpenVPN/DMVPN PPTP/L2TP/GRE/IPSec/OpenVPN/DMVPN PPTP/L2TP/GRE/IPSec/OpenVPN/DMVPN N/A N/A
Remote Management HTTP, Telnet, SSH, Hongdian Wedora Cloud Platform HTTP, Telnet, SSH, SMS
SNMP V1/V2/V3, SNMP TRAP
Hongdian Wedora Cloud Platform 		HTTP, Telnet, SSH, SMS
SNMP V1/V2/V3, SNMP TRAP
Hongdian Wedora Cloud Platform 		Telnet, SSH, Hongdian Wedora Cloud Platform Telnet, SSH, Hongdian Wedora Cloud Platform
Serial Ports Function Transparent, Modbus RTU, etc. Transparent, Modbus RTU, etc. Transparent, Modbus RTU, etc. Transparent, Modbus RTU, etc. Transparent, Modbus RTU, etc.
Power Supply and Consumption
Connector 2 pin socket 2 pin socket 2 pin socket 2 pin socket 2pin wafer
Voltage Input +5V~+36V DC +9V~+24V DC +9V~+36V DC +5V~+36V DC +12VDC
Power Consumption Idle:180mA@12V DC
Data transceiving: 300mA@12V DC 		Idle: 450mA@12V DC
Data transceiving: 2.2A@12V DC 		Idle: 350mA@12V DC
Data transceiving:1.3A@12V DC 		Idle: 50mA@12V DC
Data transceiving:130mA@12V DC 		Idle: 120mA@12V DC
Data transceiving:300mA@12V DC
Others
Reset Button Yes Yes Yes No Yes
LED Indicators 4 x  indicators for SIG, SYS, NET, WiFi
4 x  indicators for PLA1, PLA2, TX1, TX2 		4 x  indicators for WiFi, SIG, NET, SYS 4 x  indicators for WiFi, SIG, NET, SYS 3 x  indicators for Power, Data,Net 1 x  indicator for SYS
Hardware Watchdog Yes Yes Yes Yes Yes
Physical Characteristics
Ingress Protection IP43 IP66 IP66 IP30 IP30
Housing & Weight Metal,285g Metal, 1860g Metal, 290g Metal,160g
Dimension 127×83×24(mm) 216×216×51.5(mm) 137×83×24(mm) 77.4×65.3×29.7(mm) 126×84.70×14.7(mm)
Installations Desktop, wall mounting and  DIN rail mounting Desktop, wall mounting and surface mounting Desktop, wall mounting and  DIN rail mounting Desktop, wall mounting, adhesive backingand  DIN rail mounting Desktop, wall mounting
Operating Temperature -30 ~ +70 °C -30 ~ +70℃ -30 ~ +70℃ -25～+70℃ -30～+70℃
Storage Temperature -40 ~ +85 °C -40 ~ +85 °C -40 ~ +85 °C -40 ~ +85 °C -40 ~ +85 °C
Relative Humidity 5 ~ 95% 5 ~ 95% 5 ~ 95% 0~90%(no condensation) 0~90%(no condensation)
EMC
ESD EN61000-4-2, level3 EN61000-4-2, level3 EN61000-4-2, level3 EN61000-4-2, level3 EN61000-4-2, level3
RS EN 61000-4-3, level3 EN 61000-4-3, level3 EN 61000-4-3, level3 EN 61000-4-3, level3 EN 61000-4-3, level3
EFT EN 61000-4-4, level3 EN 61000-4-4, level3 EN 61000-4-4, level3 EN 61000-4-4, level3 EN 61000-4-4, level3
CS EN 61000-4-6, level3 EN 61000-4-6, level3 EN 61000-4-6, level3 EN 61000-4-6, level3 EN 61000-4-6, level3
