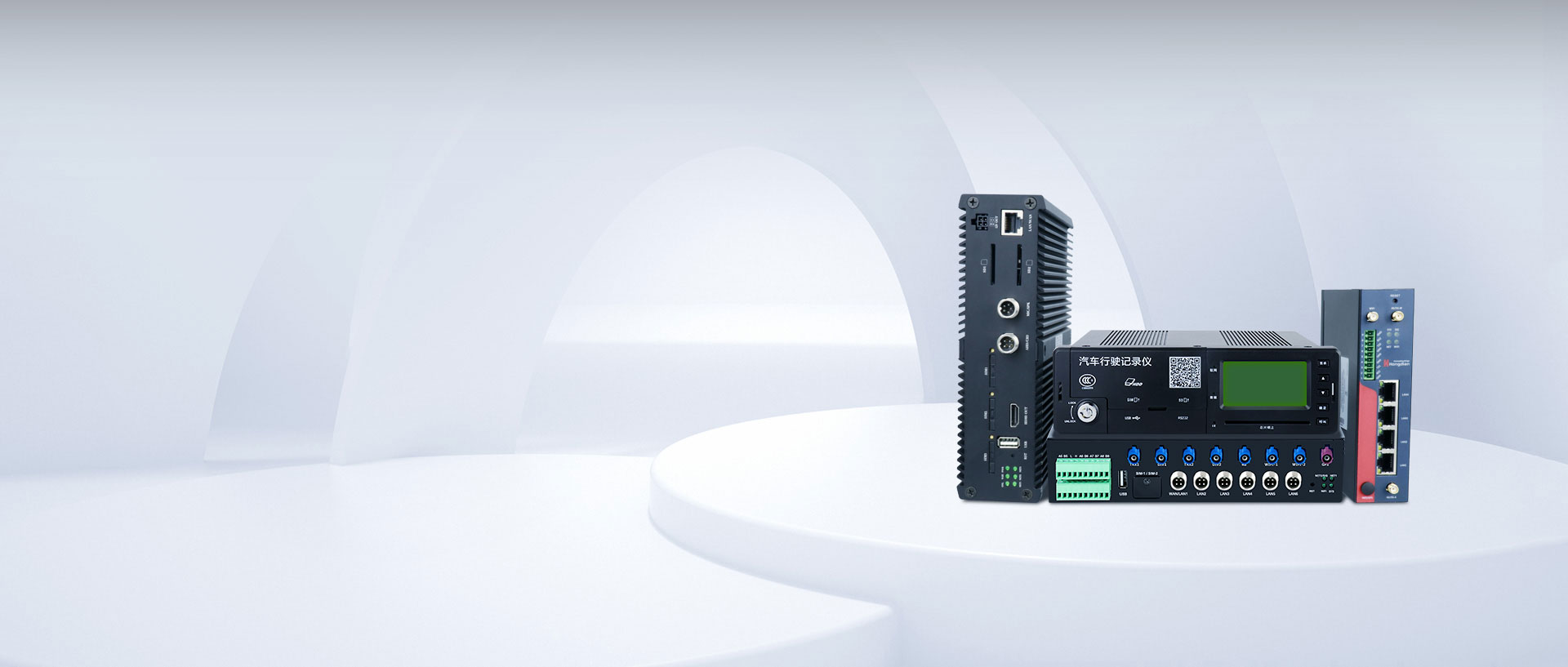

In-Vehicle Series
Hongdian's In-Vehicle Series products include vehicle routers and gateways, designed to meet the transmission requirements for surveillance video, data, and other applications in commercial vehicles.
contact us
Product Value
Product Advantages
High-speed Transmission
Supports high-speed video and data transmission over 4G/5G networks.
Industrial-grade Design
Designed to meet industrial equipment standards, suitable for vehicular applications.
Wide Applications
Extensively used in vehicle-mounted audio/video surveillance and data transmission, including specialized vehicles.
Product Comparison Table
Product
Cellular Router H7960 H3960 H3318C
Hardware
CPU MIPS 24Kc @580 MHz Dual core ARM Cortex-A72 + Dual core ARM Cortex-A53 @2.0GHz Quad core ARM Cortex-A7 @1.5GHz
Cellular Interface
Modem 1 x LTE CAT4 1 or 2 x 5G NR SA/NSA or 1 x LTE CAT4 & 2 x 5G NR SA/NSA 1 x LTE CAT1 or 1 x 5G NR SA/NSA
Number of antennas 2 4 or 8 or 10 4
Connector SMA-K SMA-K SMA-K
SIM 2 x Mini SIM (2FF) 3 × Mini SIM (2FF) 1 × Mini SIM (2FF)
Ethernet Interface
Number of ports 4 x 10/100 Mbps, Ethernet 3 ×10/100/1000Mbps + 1 × 10/100/1000Mbps, Gigabit Ethernet 1 × 10/100Mbps
Configuration 4 x LAN or 3 x LAN + 1 x WAN 3 × LAN + 1 × WAN/LAN 1 × LAN
PoE output 4 x POE+ 30W output N/A N/A
Wireless interface
Standards 802.11b/g/n, AP or station mode 802.11b/g/n/ac, AP or station modes 802.11b/g/n, AP or station modes
Frequency bands 2.4 GHz 2.4 GHz & 5GHz 2.4 GHz
Speed 150Mbps 1167Mbps 150Mbps
Security WEP, WPA, WPA2 WEP, WPA, WPA2 WEP, WPA, WPA2
Encryption 64/128 AES, TKIP 64/128 AES, TKIP 64/128 AES, TKIP
Antennas 1 1 1
Connector RPSMA-K SMA-K SMA-K
GNSS interface
Number of antennas 1 (only for GPS version) 1 1
Connector SMA-K with 50 ohms impedance SMA-K SMA-K
Dead Reckoning Optional N/A N/A
Seiral interface
Type 1 x RS-232 + 1 x RS-485 serial port 2 x RS-232 (2 x RS-232 port can be configured as a RS-485 port)
2 x RS-485 serial port
2 × RS-232 + 1 × RS-485 serial port
Software
Auto fail-over Between:
Cellular and WAN
Cellular and Wi-Fi (station mode)
WAN and Wi-Fi (station mode)
Between:
Cellular and WAN
Cellular and Wi-Fi (station mode)
WAN and Wi-Fi (station mode)
Between:
Cellular and WAN
Cellular and Wi-Fi (station mode)
WAN and Wi-Fi (station mode)
Network APN, VPDN, VLAN, QoS Muti-DNN, APN, VPDN, QoS, 5G LAN APN, VPDN, QoS
Firewall NAT, PAT, DMZ, Port Forword IP/Domain/MAC Filter, Access Control List NAT, PAT, DMZ, Port Forword IP/Domain/MAC Filter, Access Control List NAT, PAT, DMZ, Port Forword IP/Domain/MAC Filter, Access Control List
VPN PPTP/L2TP/GRE/IPSec/OpenVPN/DMVPN/WireGuard PPTP/L2TP/GRE/IPSec/OpenVPN/DMVPN PPTP/L2TP/GRE/IPSec/OpenVPN/DMVPN
AES-192-CBC, AES-256-CBC, SEED-CBC
Remote Management HTTP, Telnet, SSH, SMS, SNMP V1/V2/V3, SNMP TRAP, Hongdian Wedora Cloud Platform, SDLAN HTTP, Telnet, SSH, SMS
SNMP V1/V2/V3, SNMP TRAP
Hongdian Wedora Cloud Platform
HTTP, Telnet, SSH, SMS
SNMP V1/V2/V3, SNMP TRAP
Hongdian Wedora Cloud Platform
Serial ports function Transparent, Modbus RTU, etc Transparent, Modbus RTU, etc. Transparent, Modbus RTU, etc.
Power Supply and Consumption
Power Connector 4 pin socket 4 pin socket 4 pin socket
Voltage input +9V~+54V DC DC 12V~36V DC 9V~36V
Power consumption Idle: 100mA@12V DC Idle: 400mA@24V DC Less than 15W (including camera)
Data transceiving: 350mA@12V DC Data transceiving: 1.5A@24V DC
Others
Reset button Yes Yes Yes
LED indicators 4 x  indicators for SYS, SIG, NEY, WIFI 6 x indicators for PWR, WiFi, 4G, NET1, NET2, NET3,ONL N/A
Hardware watchdog Yes Yes Yes
Physical Characteristics
Ingress protection IP30 IP30 IP30
Housing & Weight Metal, 480g Metal, about 1200g(Dual 5G module) SECC, about 1300g
Dimension 147×98×36.6(mm) 235×164.3×55.5mm 177×188×58(mm)
Installations Desktop, wall mounting and 35 mm DIN rail mounting Wall-mounting Wall-mounting
Operating temperature -30 ~ +70℃ -30 ~ +75 °C -20 ~ +70 °C
Storage temperature -40 ~ +85 °C -40 ~ +80 °C -40 ~ +80 °C
Relative humidity 0~95%(no condensation) 5 ~ 95% 0~90%(no condensation)
EMC
ESD EN61000-4-2, level3 EN61000-4-2, level3 EN61000-4-2, level3
RS EN 61000-4-3, level3 EN 61000-4-3, level3 EN 61000-4-3, level3
EFT EN 61000-4-4, level3 EN 61000-4-4, level3 EN 61000-4-4, level3
CS EN 61000-4-6, level3 EN 61000-4-6, level3 EN 61000-4-6, level3
