Hongdian H8870 5G Enhanced Wi-Fi Router

Global 5G Sub-6GHz High-speed Network

Provide seamless wireless network connectivity with high bandwidth, low latency and high reliability

WLAN Network

Wi-Fi 6 with dual-band multi-user MIMO wireless capabilities

Enhancing Data Security

Data Protection with IPsec/OpenVPN/GRE/L2TP/PPTP/Wireguard

Cloud Management

Managed by Hongdian Cloud Server with SD-WAN networking, remote access anytime anywhere

Hardware
CPU	Dual-core, 1.35 GHz, ARM Cortex A53
RAM	256MB
FLASH	32MB
Cellular Interface
Modem	1 × 5G NR SA/NSA or 2 × LTE-A or 1 × LTE-A & 1 × 5G NR SA/NSA
SIM	2 × Mini SIM (2FF) (eSIM optional)
Connector	SMA-K

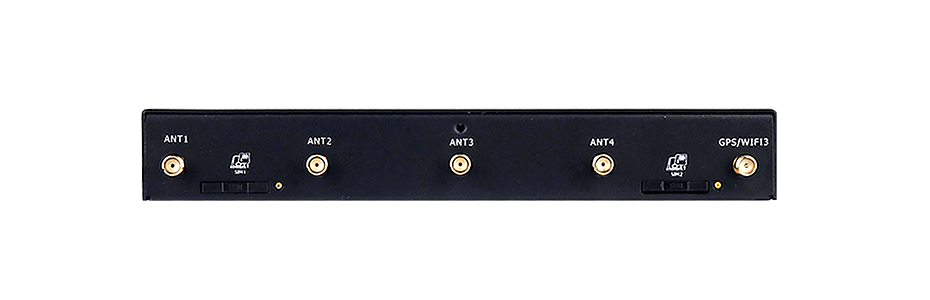

Number of Antennas	4
Ethernet Interface
Number of Ports	5 × 10/100/1000 Mbps, Gigabit Ethernet
Conﬁguration	4 × LAN + 1 × WAN
PoE Output	POE+ 30W output × 4
Wireless Interface
Standards	802.11b/g/n/ac/ax, AP or station mode
Frequency Bands	2.4 GHz & 5 GHz
Speed	2402Mbps on 5GHz, 576Mbps on 2.4GHz
Security	WEP, WPA, WPA2
Encryption	64/128 AES, TKIP
Antennas	3
Connector	RP SMA-K
GNSS Interface
Number of Antennas	1 (only for GPS version)
Connector	SMA-K with 50 ohms impedance
Seiral Interface
Type	1 × RS-232 + 1 × RS-485 serial port
Socket Form	1 × 5-pin 3.5 mm female socket
Signal Deﬁnition	RX, TX, GND, A+, B-
Baudrate	RS-232 (300-115200bps), RS-485 (300-115200bps)
Software
Auto Fail-over	Between: 2 Cellulars, Cellular and WAN, Cellular and Wi-Fi (station mode), WAN and Wi-Fi (station mode)
Network Protocols	PPP, PPPoE, TCP, UDP, DHCP, ICMP, NAT, HTTP, HTTPs, DNS, ARP, NTP, SMTP, Telnet, SSH, DDNS, etc.
Network	APN, VPDN, VLAN, QoS
Routing	Static Routing, Policy routing, RIP, and OSPF, etc
Firewall	NAT, PAT, DMZ, Port Forword IP/Domain/MAC Filter, Access Control List
Attack Prevention	DDOS prevention, Anti port scanning
VPN	PPTP/L2TP/GRE/IPSec/OpenVPN/WireGuard
Ipsec Encryption	DES, 3DES, AES128, AES192, AES256
OpenVPN Encryption	BF-CBC, DES-CBC, RC2-CBC, DES-EDE-CBC, DES-EDE3-CBC, DESX-CBC, RC2-40-CBC, CAST5-CBC, RC2-64-CBC, AES-128-CBC, AES-192-CBC, AES-256-CBC, SEED-CBC
Remote Management	HTTP, Telnet, SSH, SMS, SNMP V1/V2/V3, SNMP TRAP, Hongdian Cloud Platform, SDLAN, SDWAN
Serial Ports Function	Transparent, Modbus RTU, etc
Power Supply and Consumption
Connector	DC socket or 2 pin socket
Voltage Input	+9V~+57V DC
Others
Reset Button	Yes
Hardware Watchdog	Yes
LED Indicators	4 indicators for PWR, WLAN, NET1, NET2
Physical Characteristics
Ingress Protection	IP30
Housing & Weight	Metal, 980g
Dimension	191.5×125.0×28.5(mm)
Installations	Desktop, wall mounting, 35 mm DIN rail mounting
Operating Temperature	-30 ~ +70 °C
Storage Temperature	-40 ~ +85 °C
Relative Humidity	≤ 95% (no condensing)
EMC
ESD	EN61000-4-2, level3
EFT	EN 61000-4-4, level3
CS	EN 61000-4-6, level3
RS	EN 61000-4-3, level3
Surge Protection	EN 61000-4-5, level2

File Name

Hongdian Datasheet-H8870 5G Enhanced Wi-Fi Router-2025V1.0

Download

Part No.	Network	Frequencies	Interface						Certiﬁcations (*In progress)	Regions
Part No.	Network	Frequencies	SIM	WLAN	GPS	GigE	RS232	RS485	Certiﬁcations (*In progress)	Regions
H8870-NREA-CS-W3	5G NSA/SA	NSA/SA: n1/n3/n5/n7/n8/n20/n28/n38/n40/n41/ n71/n75/n76/n77/n78 LTE FDD: B1/B3/B5/B7/B8/B20/B28/B32/B71 LTE TDD: B38/B40/B41/B42/B43 WCDMA: B1/B5/B8	2	AX3000	-	5	1	1	CE*	Europe, the Middle East, Africa, Korea, Thailand, India, Malaysia
H8870-NREA- CS-W3G	5G NSA/SA		2	AX3000	YES	5	1	1	CE*
H8870-NRGL- CS-W3	5G NSA/SA	NSA/SA: n1/n2/n3/n5/n7/n8/n12/n13/n14/n18/n20/ n25/n26/n28/n29/n30/n38/n40/n41/n48/n66/n70/ n71/n75/n76/n77/n78/n79 LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B14/B17/ B18/B19/B20/B25/B26/B28/B29/B30/B32/B66/B71 LTE-TDD: B34/B38/B39/B40/B41/B42/B43/B48 LAA B46(2 × 2 MIMO) WCDMA: B1/B2/B4/B5/B8/B19	2	AX3000	-	5	1	1	CE, FCC	Global
H8870-NRGL- CS-W3G	5G NSA/SA				YES
H8870-L6GL- CS-W3G	LTE Cat6	LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B14/ B17/B18/B19/B20/B25/B26/B28/B29/B30/B32/ B66/B71 LTE-TDD: B34/B38/B39/B40/B41/B42/B43/ B46 (LAA)/B48 (CBRS) WCDMA: B1/B2/B3/B4/B5/B6/B8/B19	2	AX3000	YES	5	1	1	CE, FCC	Global
H8870-D6EA- CS-W3	2 modules LTE Cat6	4G( LTE-FDD): B1/B3/B5/B7/B8/B20 4G (LTE-TDD): B38/B40/B41 3G(WCDMA): B1/B5/B8 2G: B3/B8	2	AX3000	-	5	1	1	CE*	Europe, the Middle East, Africa, Korea, Thailand,India, Malaysia
* For example, H8870-L6GL-CS-W3G, H8870 4G Router, support LTE Cat6, the application area is Global, support RS-232 and RS-485,support Wi-Fi(AX3000) and GPS. H8870- NREA-CS-W3, H8870 5G Router, support 5G NSA/SA, the application area is Europe, the Middle East, Af rica, Korea,Thailand, India, Malaysia region, support RS-485 and RS-232, support two Wi-Fi antennas(AX3000).
