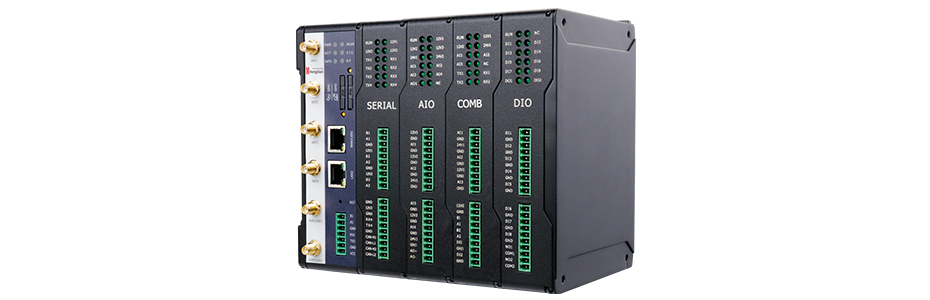

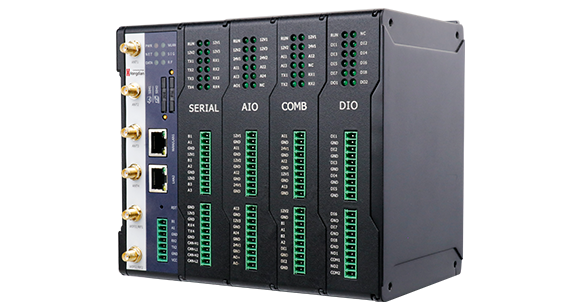

H6100 4G Industrial Gateway

Highly reliable network communication

4G/Wi-Fi/Wired can be configured as link-backup mode for auto-failover
Smooth switching of dual SIM backup ensures network reliability

Modular expansion with rich interfaces

Support expansion modules for complex functions such as control PLC and frequency conversion
Support AIO, DIO, Serial, COM modules, etc

Edge computing

Support Hongdian standard industrial protocol plugins and Serial plugins
Provide support for secondary development environments for C and Python
Support obtaining APP plugins locally and management such as installing, uninstalling, starting, and stopping plugins

Remote management platform

Support zero-touch deployment of gateway devices and SDLAN remote management
Support SDWAN self-organizing network

Host Specification

Hardware
CPU	3 cores ARM Cortex-A7 @1.5GHz + 1 core ARM Cortex-M0 @200MHz
RAM	512MB
FLASH	32MB eMMC

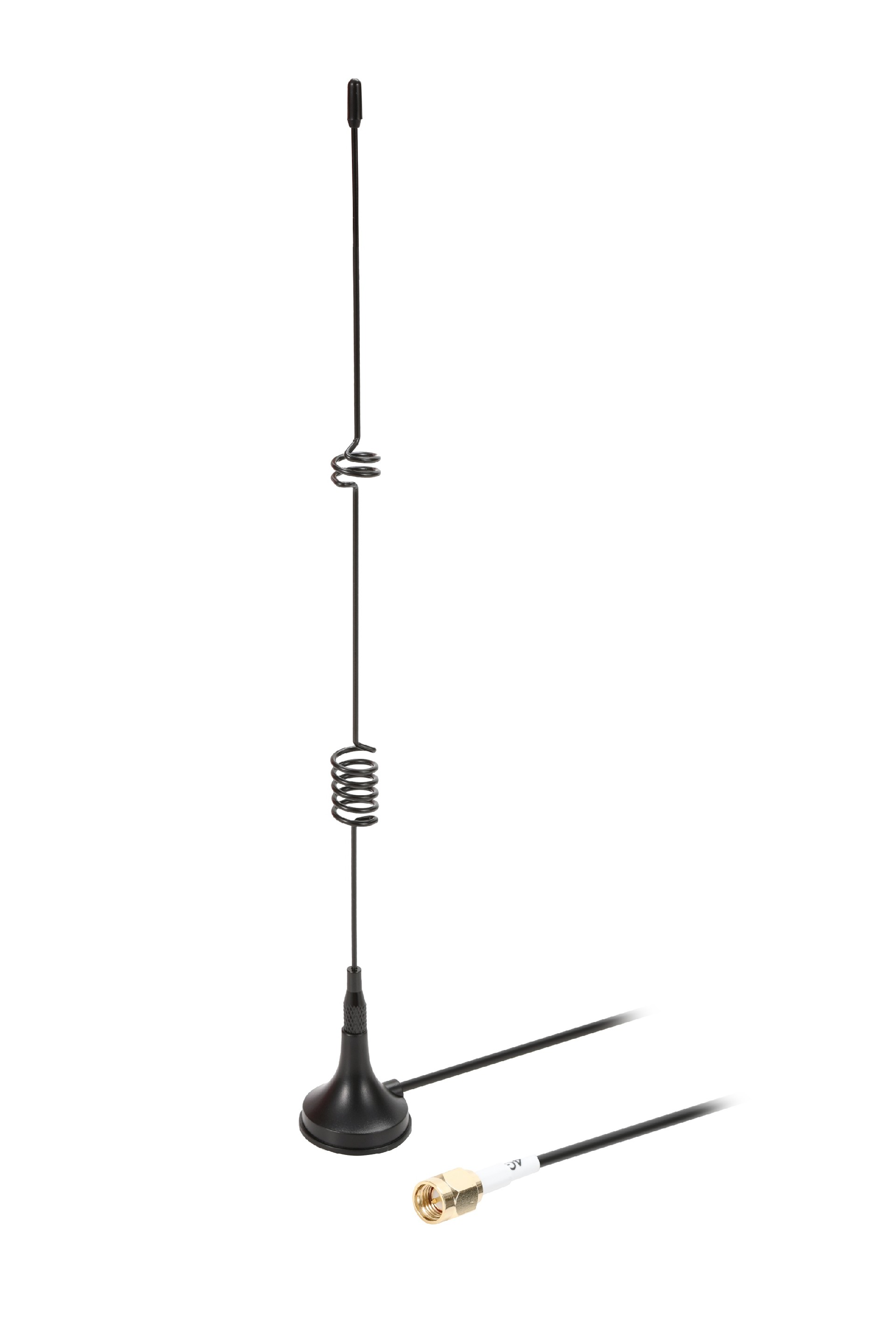

Cellular Interface
Modem	1 × LTE Cat4
Number of Antennas	4
SIM	2 × Mini SIM (2FF) (eSIM optional)
Connector	SMA-K
Wireless Interface
Standards	802.11b/g/n/ac/ax, AP or station modes
Frequency Bands	2.4 GHz & 5 GHz
Speed	300Mbps
Security	WEP, WPA, WPA2
Encryption	64/128 AES, TKIP
Antennas	2
Connector	RP SMA-K
GNSS Interface
Number of Antennas	1 (only for GPS version, Share with WiFi)
Connector	SMA-K with 50 ohms impedance
Peripheral Interface
Ethernet	1 × LAN 10/100 Mbps + 1 × WAN/LAN 10/100 Mbps
Serial Type	1 × RS-485 + 1 × RS-232/CAN serial port
Socket Form	1 × 7-pin 3.5 mm female socket
Signal Deﬁnition	RX, TX, GND (RS-232) , A+, B-, GND (RS-485)
USB	USB2.0 Type C
Relay	N/A
GPIO	N/A
SD card	N/A
Baudrate	RS-232 (300-115200bps), RS-485 (300-115200bps)
Extension interface	Analog I/O Module: 4 × AI,1 × AO Digital I/O Module: 8 × DI, 2 × DO Multi-Function Expansion Module: 3 × AI, 2 × RS-485, 2 × DI Serial Port Expansion Module: 3 × RS-485, 1 × RS-232, 2 × CAN
Software
Auto Fail-over	Between: Cellular and WAN, Cellular and Wi-Fi (station mode), WAN and Wi-Fi (station mode)
Network Protocols	PPP, PPPoE, TCP, UDP, IPv4, IPv6, SSL, DHCP, ICMP, NAT, HTTP, HTTPs, DNS, ARP, NTP, Telnet, SSH, DDNS, etc.
Routing	Static Routing, Policy routing, RIP, OSPF and BGP, etc
Firewall	NAT, PAT, DMZ, Port Forword IP/Domain/MAC Filter, Access Control List
VPN	PPTP/L2TP/GRE/IPSec/OpenVPN/DMVPN
Secondary Development	Secondary development in C and Python
Intelligent Plugins	Obtain APP plugins locally and plugin management
Serial Ports Function	Transparent, Modbus RTU, Modbus TCP, etc
Industrial Protocols	Modbus, OPC UA, BACNet/IP, IEC101/104, IEC61850, etc
Remote Management	HTTP, Telnet, SSH, Hongdian Sandora Platform

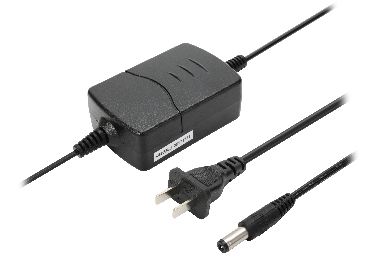

Power Supply and Consumption
Connector	2 pin socket
Voltage Input	+9V~+48V DC
Power Consumption	Idle: 180mA@12V DC, Data transceiving: 350mA@12V DC
Others
Reset Button	Yes
Hardware Watchdog	Yes
LED Indicators	6 indicators for PWR, WLAN, NET, SIG, DATA, RF
Physical Characteristics
Ingress Protection	IP30
Housing & Weight	Metal, 800g
Dimension	153.2 × 128 × 51.5 mm

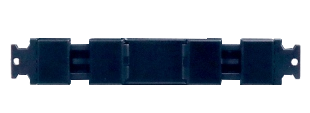

Installations	Desktop and DIN rail mounting
Operating Temperature	-40 ~ +75 °C
Storage Temperature	-40 ~ +85 °C
Relative Humidity	5 ~ 95%
EMC
ESD	EN61000-4-2, level4
RS	EN 61000-4-3, level3
EFT	EN 61000-4-4, level4
Surge	EN 61000-4-5, level4
CS	EN 61000-4-6, level3
Industrial Protocol
Southbound	Supports Hongdian standard E-Link protocol Supports ModbusRTU, ModbusTCP, ModbusASCII Supports Fanuc CNC protocol Supports DLT645-1997, DLT645-2007 Supports IEC101, IEC104, IEC61850 protocols Supports OPC-UA protocol Supports siemens S7, siemens PPI, siemens MPI Supports hostlink_serial, hostlink_TCP, hostlink_UDP Supports mitsubishi_melsec_tcp, mitsubishi_melsec_udp, mitsubishi_melsec_serial, mitsubishi_fxprograme, mitsubishi_fxlink Supports PLC access from multiple manufacturers such as Siemens, Mitsubishi, Panasonic, Delta, Keyence, Rockwell, Omron, etc.
Industrial Protocol
Northbound	Supports Hongdian standard A-Link protocol, automatically connects to Hongdian DMP and CMP platforms. Supports standard MQTT protocol, supports connection to third-party platforms. Supports SQLSERVER, MySQL Supports OPC_SERVER Supports modbus_tcp_server Supports IEC104_SERVER, IEC61850

Expansion Board Specification

Product Name	H6110 Series Expansion Module
Processor System	64 MHz Cortex-M0+ 32-bit CPU platform
Front Panel Interfaces	12 running status indicators 2 x 10-pin Phoenix terminals (user interfaces)
Top Panel Interfaces	2 x 10-pin blade connector female sockets
Bottom Panel Interfaces	2 x 10-pin blade connector male sockets
Operating Voltage	+12V~48V DC
Operating Power Consumption	Approx. 25mA@12V DC (average power consumption at no load)
Operating Ambient Temperature	-40~+75ºC
Storage Temperature	-40~+85ºC
Relative Humidity	<95% (no condensation)
Dimensions	153×118×37.7mm (without terminal block)
Weight	Approx. 500g
SD card	N/A

File Name

Host Ordering Info

Product Model	Network	Frequencies	WiFi	Interface			Region
Product Model	Network	Frequencies	WiFi	RS232	RS485	CAN	Region
H6100-RCGL-CS-2W6	5G RedCap	SA:N1/N2/N3/N5/N7/N8/N12/N13/N14/N18/N20/N25/N26 /N28/N30/N38/N40/N41/N48/N66/N70/N71/N77/ N78/N79	Wi-Fi 6	1	1	-	Global
H6100-RCCS-AS	5G RedCap	LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B14/B17/ B18/B19/B20/B25/B26/B28/B30/B66/B70/B71 LTE-TDD: B34/B38/B39/B40/B41/B42/B43/B48	-	-	1	1	Global
H6100-NRGL-CS-2W6	5G NR	NSA/SA: N1/N2/N3/N5/N7/N8/N12/N13/N14/N18/N20/ N25/N26/N28/N29/N30/N38/N40/N41/N48/N66/N70/ N71/N75/N76/N77/N78/N79 LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B14/B17/ B18/B19/B20/B25/B26/B28/B29/B30/B32/B66/B71 LTE-TDD: B34/B38/B39/B40/B41/B42/B43/B48 LAA B46(2 × 2 MIMO) WCDMA: B1/B2/B4/B5/B8/B19	Wi-Fi 6	1	1	-	Global
H6100-NRGL-AS	5G NR		-	-	1	1	Global
H6100-NREA-CS-2W6	5G NR	NSA/SA: N1/N3/N5/N7/N8/N20/N28/N38/N40/N41/ N71/N75/N76/N77/N78 LTE-FDD: B1/B3/B5/B7/B8/B20/B28/B32/B71 LTE-TDD: B38/B40/B41/B42/B43 WCDMA: B1/B5/B8	Wi-Fi 6	1	1	-	EMEA
H6100-NREA-AS	5G NR		-	-	1	1	EMEA

Expansion Board Ordering Info

Product Model	Product Name	Core Functions	Power Output	Typical Applications
H0110-ZAIO	Analog I/O Expansion Module	4 channels of AI, 1 channel of AO	3 channels of 12V output 2 channels of 24V output	Sensor and instrument data acquisition
H0110-ZCOMB	Multifunctional Composite Expansion Module	3 channels of AI, 2 channels of RS485, 2 channels of DI	2 channels of 12V output 1 channel of 24V output	Mixed acquisition of multiple types of signals
H0110-ZDIO	Digital I/O Expansion Module	8 channels of DI, 2 channels of relay DO	-	Equipment switch control, status monitoring
H0110-ZSERIAL	Serial Communication Expansion Module	3 channels of RS485, 1 channel of RS232, 2 channels of CAN	3 channels of 12V output	PLC networking, instrument communication
