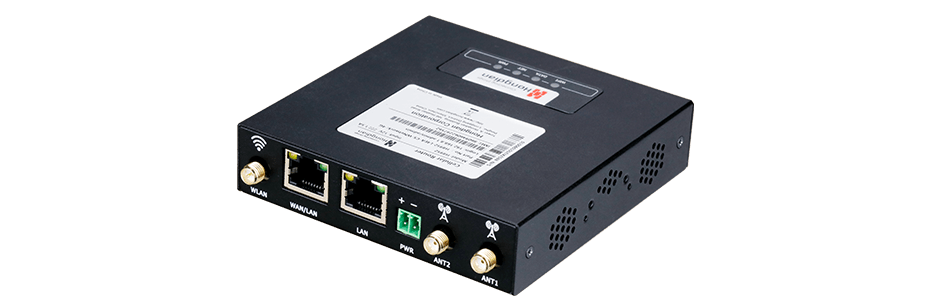

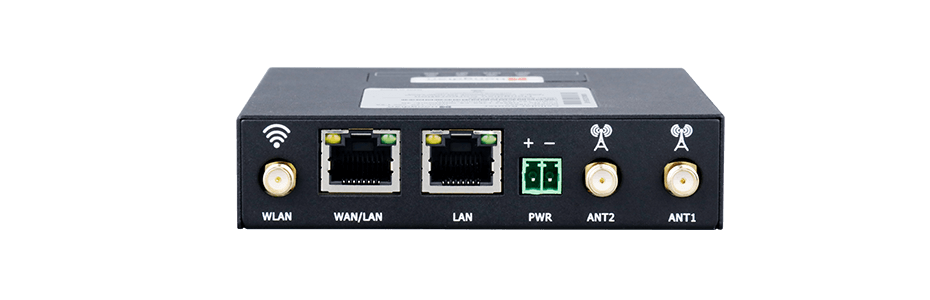

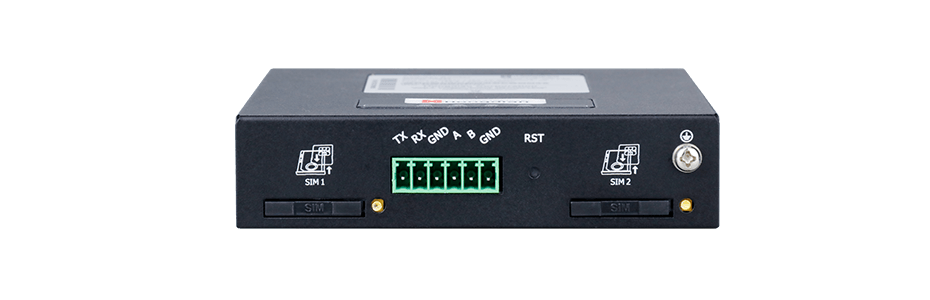

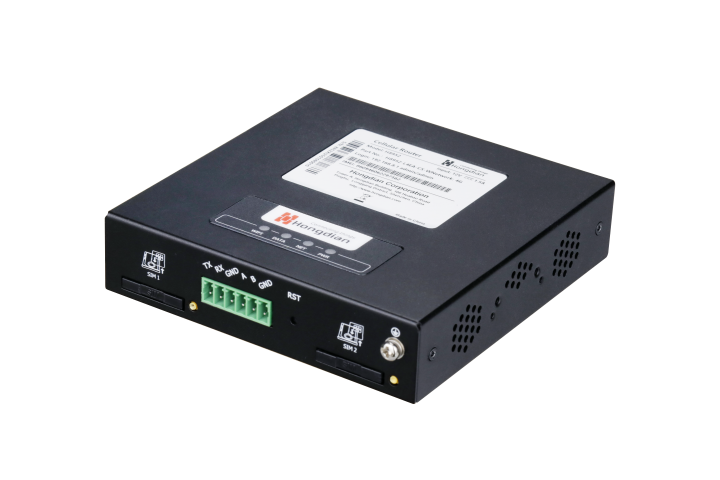

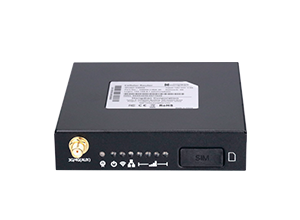

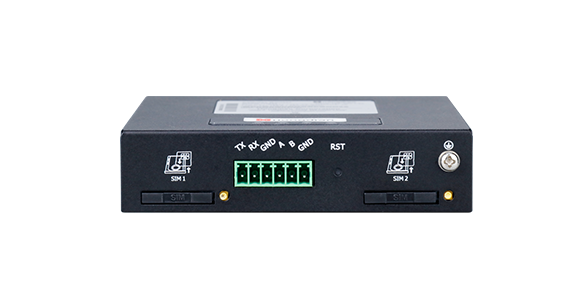

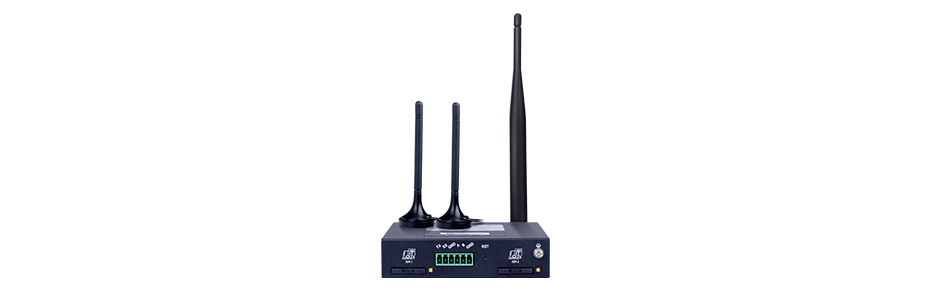

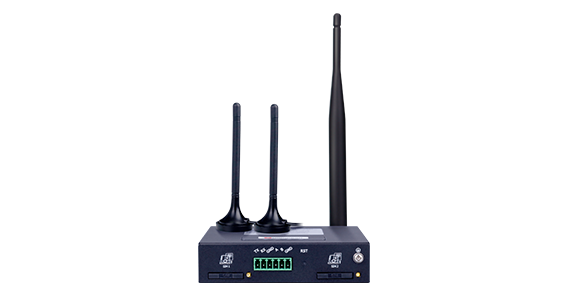

H8952 LTE VPN IoT Router

Global LTE/3G/2G, 2 x SIM, Auto-failover
2 x Ethernet, Wi-Fi 4, RS-232, RS-485
Advanced VPN and Data Encryption
Cloud Managed Simplicity

Product Introduction

The H8952 LTE IoT VPN Router supports dual SIM, remote access, cloud management, remote access and SD-WAN. It provides excellent wireless communication solution to customer by connecting their end devices towards their business success. It supports RS-232 or RS-485 interface, with ultra-high cost performance. Wi-Fi station and Ethernet WAN can also be configured to help you build up different network topologies. Plus Links auto-failover, VPN data encryption, and multi-VPN tunnel backup machanism, giving you a secure and extremely reliable networking solution.

Features Tech Specs Downloads Ordering

Always-online Connectivity

4G/WiFi/Ethernet can be configured as link-backup mode for Internet auto-failover

Industry Demanded Stability

Hardware watchdog & software defined auto-recovery mechanism in HongdianOS

Data Transmission Security

Advanced VPN protocols integrated, provide secure M2M communication network

Rugged Industrial Design

Wide temperature & voltage input range
Immunity to interference and low electromagnetic emissions

Hardware

CPU

MIPS 24Kc 580MHz

RAM

128MB

FLASH

16MB

Cellular Interface

Modem

1 × LTE Cat4

SIM

2 × Mini SIM (2FF)

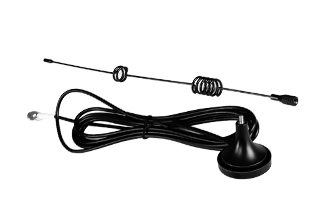

Number of Antennas

Connector

SMA-K

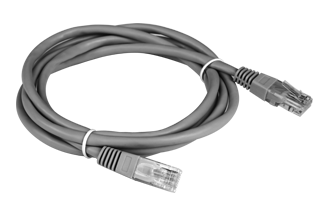

Ethernet Interface

Number of Ports

2 × 10/100 Mbps, Ethernet

Conﬁguration

2 × LAN or 1 × LAN + 1 × WAN

Wireless Interface

Standards

802.11b/g/n, AP or station mode

Frequency Bands

2.4 GHz

Speed

150Mbps

Security

WEP, WPA, WPA2

Encryption

64/128 AES, TKIP

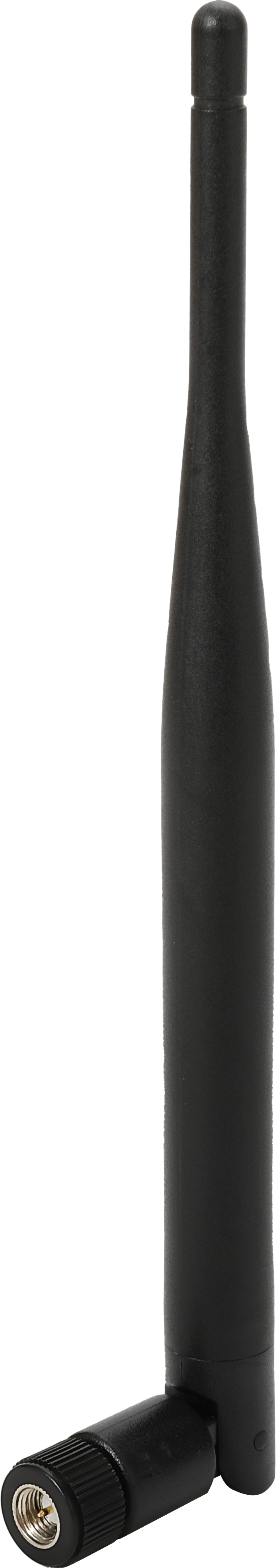

Antennas

Connector

RP SMA-K

Serial Interface

Type

1 × RS-232 or 1 × RS-485 serial port

Socket Form

1 × 6-pin 3.5 mm female socket

Signal Deﬁnition

RX, TX, GND (RS-232) , A+, B-, GND (RS-485)

Baudrate

RS-232 (300-115200bps), RS-485 (300-115200bps)

Software

Auto Fail-over

Between: Cellular and WAN, Cellular and Wi-Fi (station mode), WAN and Wi-Fi (station mode)

Network Protocols

PPP, PPPoE, TCP, UDP, DHCP, ICMP, NAT, HTTP, HTTPs, DNS, ARP, NTP, Telnet, SSH2, DDNS, etc.

Network

APN, VPDN, VLAN, QoS

Routing

Static Routing, Policy routing, RIP, OSPF and BGP, etc

Firewall

NAT, PAT, DMZ, Port Forword IP/Domain/MAC Filter, Access Control List

Attack Prevention

DDOS prevention, Anti port scanning

Ipsec Encryption

DES, 3DES, AES128, AES192, AES256

OpenVPN Encryption

BF-CBC, DES-CBC, RC2-CBC, DES-EDE-CBC, DES-EDE3-CBC, DESX-CBC, RC2-40-CBC, CAST5-CBC, RC2-64-CBC, AES-128-CBC,
AES-192-CBC, AES-256-CBC, SEED-CBC

VPN

PPTP/L2TP/GRE/IPSec/OpenVPN/DMVPN/WireGuard

Remote Management

HTTP, Telnet, SSH, SMS, SNMP V1/V2/V3, SNMP TRAP, Hongdian Cloud Platform

Serial Ports Function

Transparent, Modbus RTU, etc

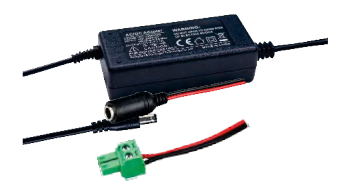

Power Supply and Consumption

Connector

2 pin socket

Voltage Input

+5V~+36V DC

Power Consumption

Idle: 100mA@12V DC, Data transceiving: 350mA@12V DC

Others

Reset Button

Yes

Hardware Watchdog

Yes

LED Indicators

4 indicators for Wi-Fi, DATA, NET, PWR

Physical Characteristics

Ingress Protection

IP30

Housing & Weight

Metal, about 300g

Dimension

99.7×98.8×23.4(mm)

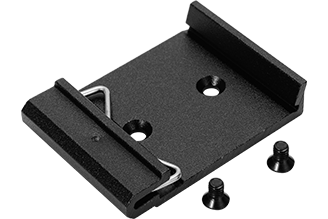

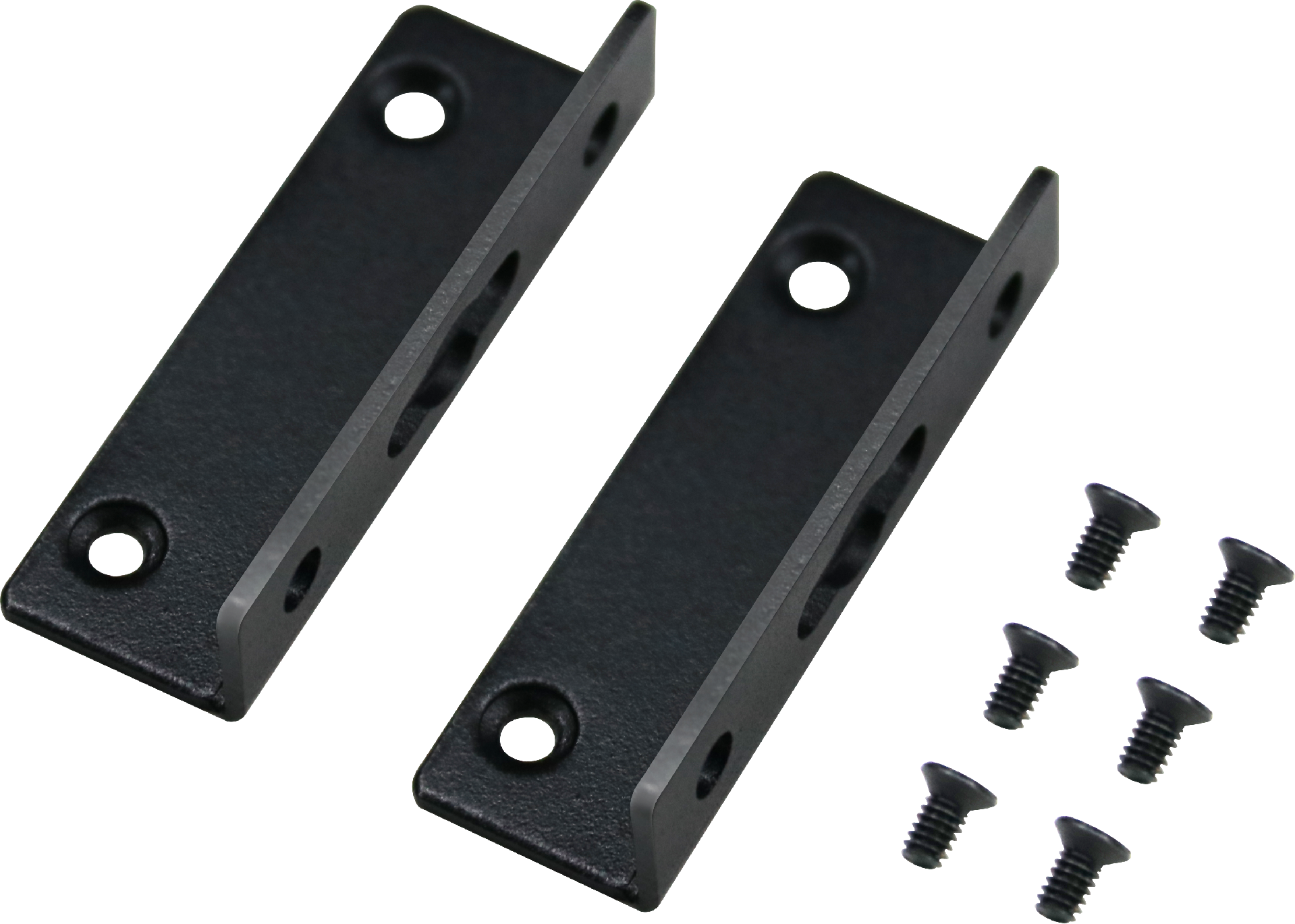

Installations

Desktop, wall mounting, din rail mounting

Operating Temperature

-30 ~ +75 °C

Storage Temperature

-40 ~ +85 °C

Relative Humidity

≤ 95%(no condensing)

File Name

PartNo.

Network

Frequencies

Interfaces

Certiﬁcations
(*Inprogress)

Regions

H8952-L4EU-CS-W

LTECat4

4G(LTE-FDD):B1/B3/B5/B7/B8/B20
4G(LTE-TDD):B38/B40/B41
3G:B1/B8

SIM

WLAN

RJ45

RS232

RS485

CE,RoHS

Europe,Africa,
theMiddleEast,
Korea,Thailand,
India,Malaysia

N150

H8952-L4EA-CS-W

4G(LTE-FDD):B1/B3/B5/B7/B8/B20
4G(LTE-TDD):B38/B40/B41
3G:B1/B5/B8
2G:B3/B8

CE,RoHS

H8952-L4NA-CS-W

4G(LTE-FDD):B2/B4/B5/B12/B13/B14/
B66/B71
3G:B2/B4/B5

FCC*,IC*,PTCRB*

NorthAmerica

H8952-L4SA-CS-W

4G(LTE-FDD):B1/B2/B3/B4/B5/B7/B8/
B28
4G(LTE-TDD):B40
3G:B1/B2/B4/B5/B8
2G:B2/B3/B5/B8

RCM*,Anatel*

Oceania,
SouthAmerica

*For example, H8952-L4EU-CS-W, H8952 4G Router, support LTE Cat4, the application area is Europe, support RS-232 and RS-485, support Wi-Fi. H8952-L4EA-CS-W, H8952 4G
Router, support LTE Cat 4,the application area is Europe, Africa, the Middle East, Korea, Thailand, India, Malaysia region, support RS-485 and RS-232, support Wi-Fi.
