| HARDWARE |
| CPU | Quad-core ARM Cortex A7 @717MHz |
| Built-in storage | 512MB RAM+8GB eMMC |
| CELLULAR INTERFACE |
| Modem | 1 or 2 × 5G NR SA/NSA or 1 or 2 × LTE |
| SIM | 2 × nano SIM (4FF), 2 × eSIM optional |

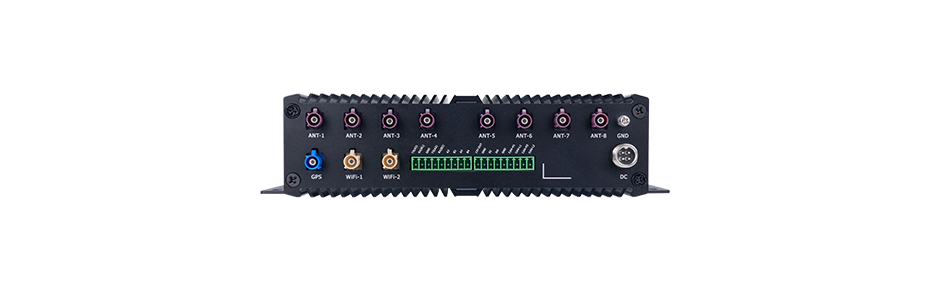

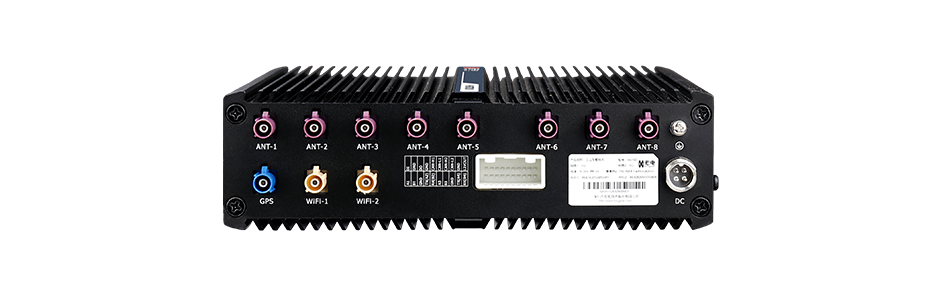

| Number of Antennas | 2 or 4 or 8 |
| Connector | FAKRA D-coded |
| WIRELESS INTERFACE |
| Standards | 802.11b/g/n/ac/ax, AP or station modes |
| Frequency Bands | 2.4 GHz & 5GHz |
| Encryption | 64/128 AES, TKIP |
| Security | WEP, WPA, WPA2, WPA3 |
| Number of Antennas | 2 |
| Connector | FAKRA I-coded |
| GNSS INTERFACE |
| GNSS | GPS, GLONASS, Bei Dou and Galileo, (GPS DR Optional) |
| Number of Antennas | 1 |
| Connector | FAKRA C-coded |
| PERIPHERAL INTERFACE |

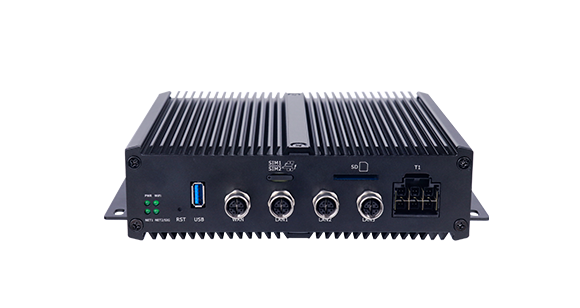

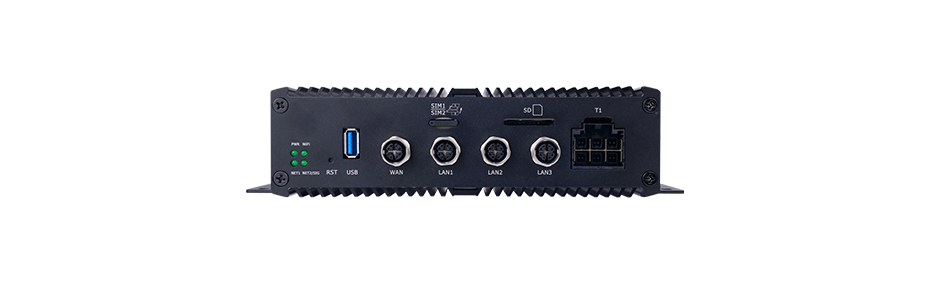

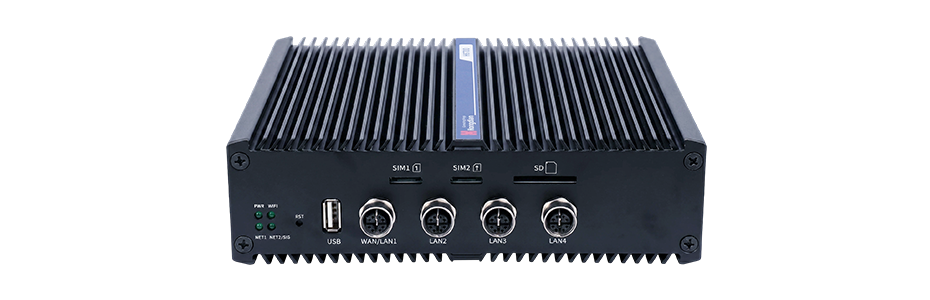

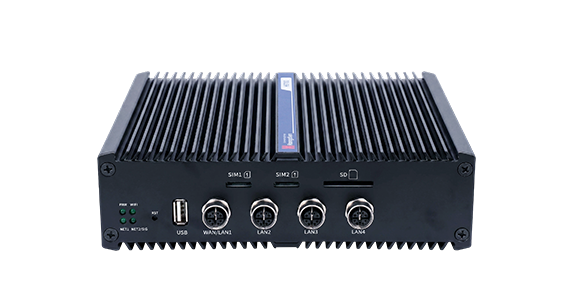

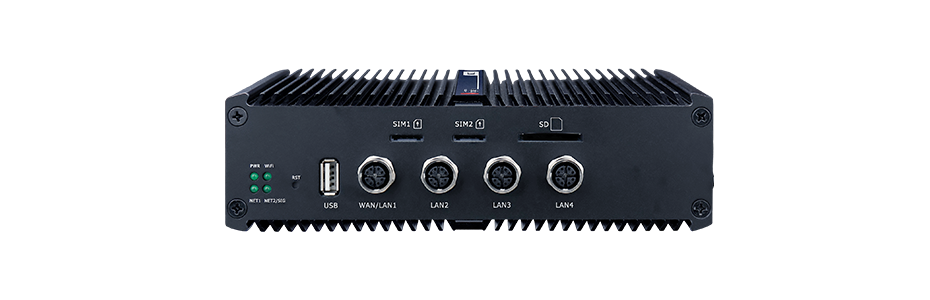

| Ethernet | 3×LAN 10/100/1000Mbps + 1×WAN/LAN 10/100/1000Mbps(M12 X-coded), 2×LAN 100/1000Mbps + 4×100Mbps (BASE-T1) |
| Serial Type | 4 × RS-485 serial port (2 × RS-485 port can be configured as RS-232 port) |
| Socket Form | 2 × 9-pin female socket |
| USB | 1 × USB2.0 Type A |
| TF Card | 1 × SD Card |
| Can | 2 × CAN 2.0(2 pins) |
| IO | 1 × DO, 1 × DI |
| POWER SUPPLY AND CONSUMPTION |
| Connector | M12 A-coded { V+, V-, IGT, NC (4 pins) } |
| Voltage Input | +9V~+36V DC |
| OTHERS |
| LED Indicators | 4 indicators for NET2/SIG1, NET1, WiFi, PWR |
| Reset Button | Yes |
| PHYSICAL CHARACTERISTICS |
| Ingress Protection | IP30 |
| Housing & Weight | Metal, about 1500g, Dual 5G module |
| Dimension | 235.0 × 186.2 × 55.5mm |
| Installations | Wall-mounting |
| Operating temperature | -40ºC~+75ºC |
| Storage temperature | -40ºC~+85ºC |
| Relative humidity | 5 ~ 95% RH |
| BASIC FUNCTIONS |
| Communication | Supports 4G/5G full-network connectivity based on different modules; supports 5G R16 and R17 features |
| Private Network Access | · Supports APN and VPDN dial-up; supports CHAP and PAP access authentication
· Supports 5G Multi-DNN and network slicing, supports 5G LAN |
| Wired Access | WAN port with static IP/DHCP/PPPoE dial-up |
| Wireless Access | DHCP automatic dial-up and on-demand dial-up |
| Wi-Fi | · Supports Wi-Fi function (Wi-Fi AP/station client mode)
· Supports IEEE 802.11b/g/n/ac/ax
· Supports 2.4G and 5.8G dual-band WiFi
· Supports WPA/WPA2/WPA3 authentication, TKIP/AES encryption, and hidden SSID |
| LOCATION FUNCTIONS |
| GNSS | GPS, GLONASS, BeiDou and Galileo, (GPS DR Optional) |
| NETWORK FUNCTIONS |
| Network Address Translation | Supports NAT and MASQ dynamic source address translation |
| Routing Policy | Supports static routing, policy-based routing, and RIP/OSPF dynamic routing |
| NETWORK SECURITY |
| Data Security | · Supports IPSec, GRE, IPIP, PPTP, L2TP, OpenVPN
· Supports combined VPNs such as GRE over IPSec and IPSec over PPTP/L2TP/GRE/IPIP
· IPSec supports IKE v1/v2 automatic negotiation and perfect forward secrecy
· Supports md5, sha1, sha2_256 encryption algorithms |
| Firewall | · Supports NAT, DMZ, and port mapping
· Supports filtering rules based on 5-tuple (source IP, destination IP, MAC, port, protocol) |
| QoS | Supports QoS; enables intelligent bandwidth management via multiple methods for services, protocols, and IP segments |
| DDNS | Supports Dynamic Domain Name System (DDNS) |
| Anti-DOS | Supports port scan protection and defense against UDP, ICMP, and TCP flood attacks |
| VXLAN | Supports VXLAN technology for large Layer 2 networking |
| CLOUD APPLICATIONS |
| Cloud Management | Hongdian DMP platform for batch power environment management of devices |
| Cloud Transmission | Supports intranet penetration and DFS remote access |
| Cloud Networking | Supports SDWAN self-organizing network |
| WEB Page Status Monitoring | · Supports CPU/memory usage check via status page
· Supports mobile network interface traffic statistics and slave device terminal monitoring via status page |
| EDGE COMPUTING |
| Secondary Development | Supports secondary development in C and Python; provides secondary development environment support |
| Intelligent Plugins | · Supports Hongdian standard industrial protocol plugins and DTU plugins
· Supports local acquisition of APP plugin packages and plugin management (installation, uninstallation, startup, shutdown) |
| RELIABILITY FUNCTIONS |
| Link Backup | · Supports simultaneous online access of multiple networks (WAN, WiFi, 5G)
· Supports dual-SIM link switching
· Supports multi-network link backup for mutual backup switching between wireless-wireless and wireless-wired links |
| Link Aggregation | · Supports multi-network link aggregation
· Supports dual-link simultaneous bandwidth-sharing transmission and intelligent route selection based on link quality |
| Link Detection | Supports ping detection; enables intelligent link function by setting actions based on detection results |
| Low Power Consumption | Supports air interface/IO wake-up |
| Parameter Backup | Parameter backup and import |
| Watchdog | Hardware and software watchdog; system status self-inspection |
| Parameter Management | Multiple parameter management methods (WEB, platform) |
| MANAGEMENT AND MAINTENANC |
| Upgrade | Supports local, remote, and platform-based firmware and patch upgrades |
| Network Diagnosis | Supports Ping and Traceroute network analysis |
| Log Management | Supports viewing/exporting of local and remote system logs; supports log type selection |
| Time Synchronization | Supports NTP network time synchronization |
| Indicator Lights | Supports LED status monitoring (displays power, WiFi, network, signal, data transmission/reception status, etc.) |
| RST Function | Supports RST function, default restoration, and factory reset |
| User Management | Supports master and guest user management |
| Task Management | Supports schedule management and scheduled task execution |
