| Cellular feature |
| 3G/4G/5G data connectivity | It provides data connectivity on 5G NR SA and NSA, LTE-FDD, LTE-TDD, DC-HSDPA, HSPA+, HSDPA,HSUPA and WCDMA networks. |
| 3G/4G/5G Frequency bands | • Version EU 5G NR: • 5G Sub-6: n1/3/5/7/8/20/28/38/40/41/77/78 • LTE FDD: B1/3/5/7/8/20/28 • LTE TDD: B38/40/41/42/43 • WCDMA: B1/5/8 • MIMO: 5G NR: DL 4×4 MIMO: n1/3/7/38/40/41/77/78 UL 2×2 MIMO: n40/41/77/78 LTE: DL 4×4 MIMO:B1/3/7/28/38/40/41/42/43
• Version NA • 5G Sub-6:n2/5/7/12/14/25/30/41/48/66/71/77/78 • LTE FDD: B2/4/5/7/12/13/14/17/25/26/29/30/66/71 • LTE TDD: B41/48 • LAA: B46 • WCDMA: B2/4/5 • MIMO: 5G NR:DL 4×4 MIMO: n2/7/25/30/41/48/66/77/78 UL 2×2 MIMO: n41/77/78 LTE: DL 4×4 MIMO:B2/4/7/25/30/41/48/66
• Version LA • NR: n5/7/8/20/28/38/40/41/71/77/78 • LTE FDD: B2/4/5/7/8/20/25/28/66/71 • LTE TDD: B38/40/41/42/43 • WCDMA: B2/4/5/8 NR: DL 4×4 MIMO: n7/38/40/41/77/78 UL 2×2 MIMO: n41/77/78 LTE DL 4×4MIMO:B2/4/7/25/32/38/40/41/42/43/66
Remarks. More frequency bands, please feel free to contact us. |
| 3G/4G/5G Data rates | ◆ 5G NSA. Max 5.47Gbps (DL)/825Mbps (UL) ◆ 5G SA. Max maximum 4.67Gbps (DL)/1.25Gbps (UL) ◆ LTE. Max 1.6Gbps (DL)/211Mbps (UL) ◆ WCDMA. Max 42Mbps (DL)/ 11.5Mbps (UL) |
| 5G NR features | ◆ 3GPP Release 15 ◆ Supported modulations: - Uplink: π/2-BPSK, QPSK, 16QAM, 64QAM and 256QAM， 200MHz 2 UL CA - Downlink: QPSK, 16QAM, 64QAM and 256QAM，200MHz 2 DL CA ◆ Supported SCS: 15 kHz 2 and 30 kHz 2 ◆ SA 3 and NSA 3 operation modes supported on all the 5G band ◆ Option 3x, 3a, 3 and Option 2 |
| LTE features | ◆ LTE Category: DL Cat 19/ UL Cat 18 ◆ Supported modulations. - Uplink: QPSK, 16QAM and 64QAM and 256QAM, 40MHz 2 ULCA - Downlink: QPSK, 16QAM and 64QAM and 256QAM, 100MHz 5 DLCA, ◆ Supports 1.4/3/5/10/15/20 MHz RF bandwidth |
| UMTS features | ◆ 3GPP Release 9, DC-HSDPA, HSPA+, HSDPA, HSUPA and WCDMA. ◆ Supported modulations. QPSK, 16QAM and 64QAM |
| 3G/4G/5G Receiving Sensitivity | 5G NR-FDD n1(20MHz), -94.3 dBm 5G NR-FDD n2(20MHz), -94.3 dBm 5G NR-FDD n3(20MHz), -94.5 dBm 5G NR-FDD n5(10MHz), -95.5 dBm 5G NR-FDD n7(20MHz), -94.7 dBm 5G NR-FDD n8(20MHz), -96.2 dBm 5G NR-FDD n12(15MHz), -96.7 dBm 5G NR-FDD n13(10MHz), -97.6 dBm 5G NR-FDD n14(10MHz), -98.7 dBm 5G NR-FDD n18(15MHz), -98 dBm 5G NR-FDD n20(20MHz), -96.9 dBm 5G NR-FDD n25(20MHz), -94.6 dBm 5G NR-FDD n26(20MHz), -95 dBm 5G NR-FDD n28(20MHz), -96 dBm 5G NR-FDD n30(10MHz), -95.4 dBm 5G NR-TDD n38(20MHz), -93.4 dBm 5G NR-TDD n40(20MHz), -93.8 dBm 5G NR-TDD n41(100MHz), -85.8 dBm 5G NR-TDD n66(40MHz), -92.3 dBm 5G NR-TDD n71(20MHz), -96.5 dBm 5G NR-TDD n77(100MHz), -87.4 dBm 5G NR-TDD n78(100MHz), -87.8 dBm |
| LTE-FDD B1(10MHz) , -97.3 dBm LTE-FDD B3(10MHz) , -97.6 dBm LTE-FDD B5(10MHz) , -100.3 dBm LTE-FDD B7(10MHz) , -97.1 dBm LTE-FDD B8(10MHz) , -99.7 dBm LTE-FDD B20(10MHz) , -100.5 dBm LTE-FDD B28(10MHz) , -99.7 dBm LTE-FDD B32(10MHz) , -97.3 dBm LTE-TDD B38(10MHz) , -95.7 dBm LTE-TDD B39(10MHz) , -98.7 dBm LTE-TDD B40(10MHz) , -96.6 dBm LTE-TDD B41(10MHz) , -95.7 dBm LTE-TDD B42(10MHz) , -96.8 dBm LTE-TDD B43(10MHz) , -97.1 dBm |
| WCDMA B1 , -109 dBm WCDMA B5 , -111 dBm WCDMA B8 , -112dBm |
| 3G/4G/5G Transmitting Power | ◆ Class 3 (24dBm+1/-3dB) for WCDMA bands. ◆ Class 3 (23dBm±2dB) for LTE-FDD bands. ◆ Class 3 (23dBm±2dB) for LTE-TDD bands. ◆ Class 3 (23dBm±2dB) for 5G NR bands. ◆ Class 2 (26dBm±2dB) for LTE B38/B40/B41/B42 bands. ◆ Class 2 (26dBm±2dB) for 5G NR n41/n77/n78 bands . |
| Antennas | 8 * 4G/5G internal antenna, 4*4 MIMO, with 50 Ω impedance. |
| SIM card feature |
| SIM card | Supports 1* SIM slot (4FF,Nano SIM card), 1.8V / 3V . Or 1* eSIM card. ( Optional ) |
WIFI Feature (Optional)
|
WLAN
| ◆ IEEE 802.11 a/b/g/n/ac/ax, AX3000 WIFI 6 . Max bandwidth 2975Mbps ◆ Supports 2.4G/5GHz WIFI 6. ◆ Supports Dynamic Frequency Selection (DFS, radar detection). ◆ Supports 20 MHz/40 MHz channel bandwidth for 2.4 GHz and 20 MHz/40 MHz/80 MHz/160 MHz channel bandwidth for 5 GHz. ◆ Supports 2x2 Multi-User Multiple-Input Multiple-Output (MU-MIMO). |
Wireless Mode
| Supports AP or station mode.
|
Wireless Security
| Supports WPA2-PSK (AES), WPA/WPA2-PSK (TKIP/AES) protocols for Wi-Fi Authentication   .
|
WIFI hotpot sharing
| Supports more than 32 users to share WIFI access to the Internet.
|
Antennas
| 2*2 MIMO  internal antenna , with 50 Ω impedance.
|
| Hardware feature |
| CPU | MTK T750, ARM Cortex-A55, quad core, up to 2.0 GHz |
| MEMORY | 1GB LPDDR4x + 1GB NAND Flash |
| Hardware interface | 1* LAN 2.5G Ethernet port. 1*USB3.1 port |
| Watchdog | Built-in watchdog feature. |
| Key button | Reset |
| Protection level | Ethernet port , Contact electric shock, +/-4KV, air discharge: +/-8KV. |
| LED status indicator | PWR ,SYS, Net, LAN |
| Standard Power | POE power supply input. DC 24V/1A |
| Power Supply | POE power supply input. DC +24/1.5A~48V/0.5A |
| Peak current | Max current. 1A @24V |
| Working current | Max 700 mA, 16.8W @24 V |
| Power Consumption | Idle. 60mA, 1.44W @24 V Data link. Max 225 mA, 5.4W @24 V Peak. Max 360mA , 8.64W @24V |
| Temperature | Operating Temperature -10 ºC ~+60ºC, Storage Temperature -20 ºC ~+70ºC |
| Environment humidty | 5%~95% ,no condensation. |
| Ingress Protection | IP65 |

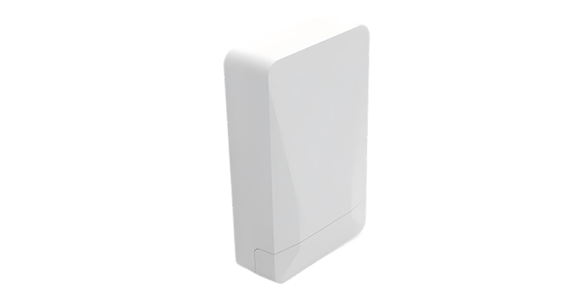

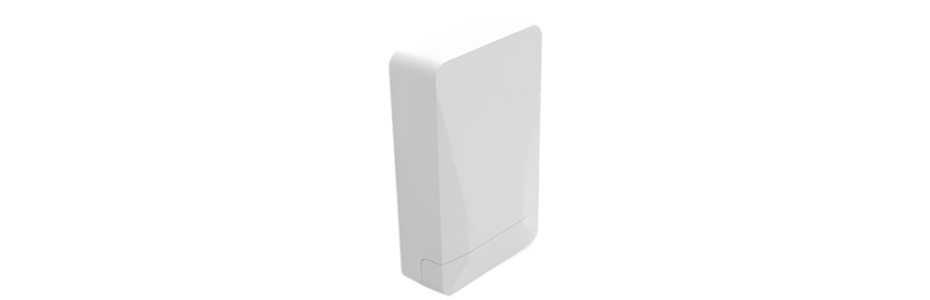

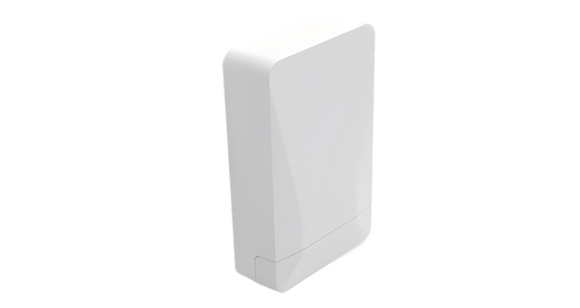

| Housing | ABS plastic material, white shell. |
| Dimensions | 250mm * 145mm * 67.5mm |
| Installations | Wall or pole mounted. |
| Weight | 670g |
| Software feature |
| Parameter settings | Supports automatic detection of MNC and MCC parameters of global operators. Built-in global operator APN, user name, password and other network parameters. At the same time, manual setting of network parameters is supported. |
| Dial method | After the device is powered on, the system automatically dials up to connect to the network. |
| Protocol | Supports PPTP,L2TP,TCP,UDP,DHCP,HTTP,TR-069,HTTPS,SSH etc protocols. |
| Routing | Supports static routing, multiple routing tables. |
| Multiple APN | Supports multiple APN access network. |
| System Assurance | Supports system automatic detection mechanism, automatic recovery of system abnormality or crash. |
| Data Link Assurance | Built-in link maintenance and self-recovery mechanism. |
| Firewall | Support flexible access control of TCP, UDP, ICMP packets. Supports port Mapping, NAT etc feature. |
| DDNS | Supported some service providers, others can be configured manually. |
| Firmware update | Supports local WebUI and remote OTA update firmware. |
| Embedded system
| OpenWRT 21.02 |
| Application development | Supports secondary development of application functions based on our device software. |
| VPN |
|
| VPN Feature | Supports PPTP, L2TP etc VPN protocols. |
| MONITORING & MANAGEMENT |
| Web GUI | HTTP, Firmware Upgrade |
| Command Line Interface | SSHv2 |
| Management platform | Support remote management protocol |
