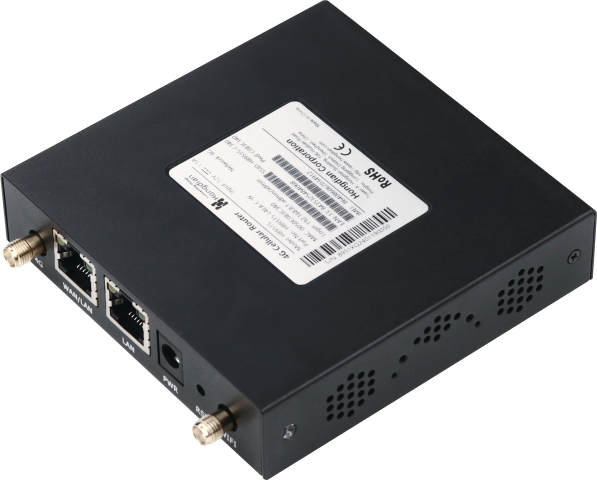

Hongdian H8951 4G Cellular Router

Always-online Connectivity

4G/WiFi/Ethernet can be configured as link-backup mode for Internet auto-failover

Industry Demanded Stability

Hardware watchdog & software defined auto-recovery mechanism in HongdianOS

Data Transmission Security

Advanced VPN protocols integrated, provide secure M2M communication network

Rugged Industrial Design

Wide temperature & voltage input range
Immunity to interference and low electromagnetic emissions

Hardware
CPU	MIPS 24Kc @580 MHz
RAM	128MB
FLASH	16MB
Cellular Interface
Modem	1 x LTE CAT1
Number of antennas	1
Connector	SMA-K
SIM	1 x Mini SIM (2FF)
Ethernet Interface
Number of ports	2 x 10/100 Mbps, Ethernet
Configuration	2 x LAN or 1 x LAN + 1 x WAN
PoE output	N/A
Wireless interface
Standards	802.11b/g/n, AP or station mode
Frequency bands	2.4 GHz
Speed	150Mbps
Security	WEP, WPA, WPA2
Encryption	64/128 AES, TKIP
Antennas	1
Connector	SMA-K
GNSS interface
Number of antennas	N/A
Connector
Dead Reckoning
Seiral interfa
Software
Auto fail-over	Between: Cellular and WAN Cellular and Wi-Fi (station mode) WAN and Wi-Fi (station mode)
Network protocols	PPP, PPPoE, TCP, UDP, IPv4, IPv6, SSL, DHCP, ICMP, NAT, HTTP, HTTPs, DNS, ARP, NTP, Telnet, SSH, DDNS, etc.
Network	APN, VPDN, VLAN, QoS
Routing	Static Routing, Policy routing, RIP, OSPF and BGP, etc.
Firewall	NAT, PAT, DMZ, Port Forword IP/Domain/MAC Filter, Access Control List
VPN	PPTP/L2TP/GRE/IPSec/OpenVPN/DMVPN/WireGuard
Ipsec Encryption	DES, 3DES, AES128, AES192, AES256
OpenVPN Encryption	BF-CBC, DES-CBC, RC2-CBC, DES-EDE-CBC, DES-EDE3-CBC, DESX-CBC, RC2-40-CBC, CAST5-CBC, RC2-64-CBC, AES-128-CBC, AES-192-CBC, AES-256-CBC, SEED-CBC
Remote Management	HTTP, Telnet, SSH, SMS, SNMP V1/V2/V3, SNMP TRAP, Sandora Cloud Platform

Power Supply and Consumption
Power Connector	DC socket
Voltage input	+5V~+36V DC
Power consumption	Idle: 100mA@12V DC Data transceiving: 350mA@12V DC
Others
Reset button	Yes

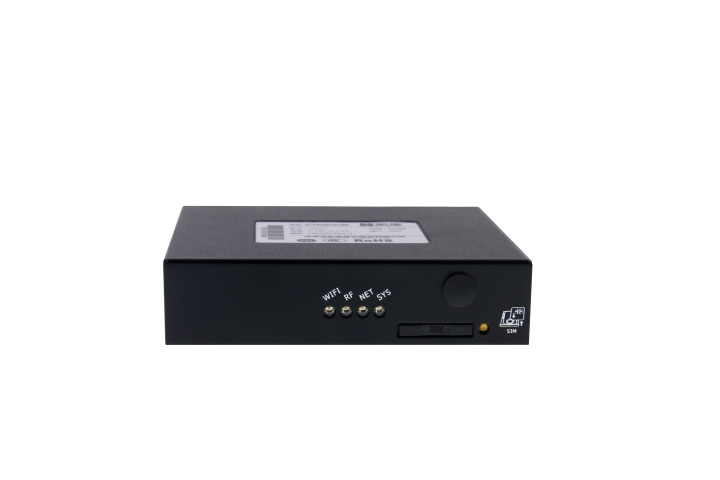

LED indicators	4 x indicators for WiFi, RF, NET, SYS
Hardware watchdog	Yes
Physical Characteristics
Ingress protection	IP30
Housing & Weight	Metal, 300g
Dimension	99.7×98.8×23.4(mm)
Installations	Desktop, wall mounting，din rail mounting
Operating temperature	-30 ~ +75℃
Storage temperature	-40 ~ +85 °C
Relative humidity	0~95%(no condensation)
EMC
ESD	EN61000-4-2, level3
RS	EN 61000-4-3, level3
EFT	EN 61000-4-4, level3
CS	EN 61000-4-6, level3
Certifications	CE, FCC, AT&T, Verizon, T-mobile

File Name

Hongdian Application Guide - H8951-Link Backup-WLAN_Modem

Download

Hongdian Specification-H8951 4G Cellular VPN Router-2024

Download

Hongdian User Manual-H8951 4G Cellular VPN Router-2024

Download

Hongdian Datasheet-H8951 4G Cellualr VPN Router-2024V1.0

Download

Product	Part No.	Network	Interface			Certification	Region
			SIM	RJ45	WLAN
H8951 LTE Cat-1 Router	H8951-L1EA-W	4G( LTE-FDD): B1/B3/B5/B7/B8/B20 4G (LTE-TDD): B38/B40/B41 3G: B1/B5/B8 2G: B3/B8	1	2	Wi-Fi 4	CE, RoHS	Europe, the Middle East, Africa, Korea, Thailand, India, Malaysia
	H8951-L1NA-W	4G( LTE-FDD): B2/B4/B5/B12/B13/B25/B26; 3G: B2/B4/B5				FCC, IC, PTCRB	North America
	For more detailed information about the frequency or any specific requirement, please contact your sales representitive.

H8951 Cat-1 VPN Router
