| Hardware |
| CPU | Dual-core,1.35GHz,ARMCortexA53 | RAM | 512MB |
| FLASH | 32MB+8GBeMMC | SDCard | TFCardSlot |
| CellularInterface |

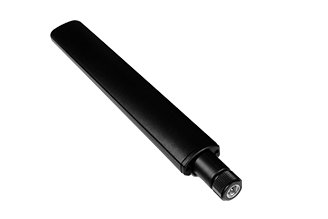

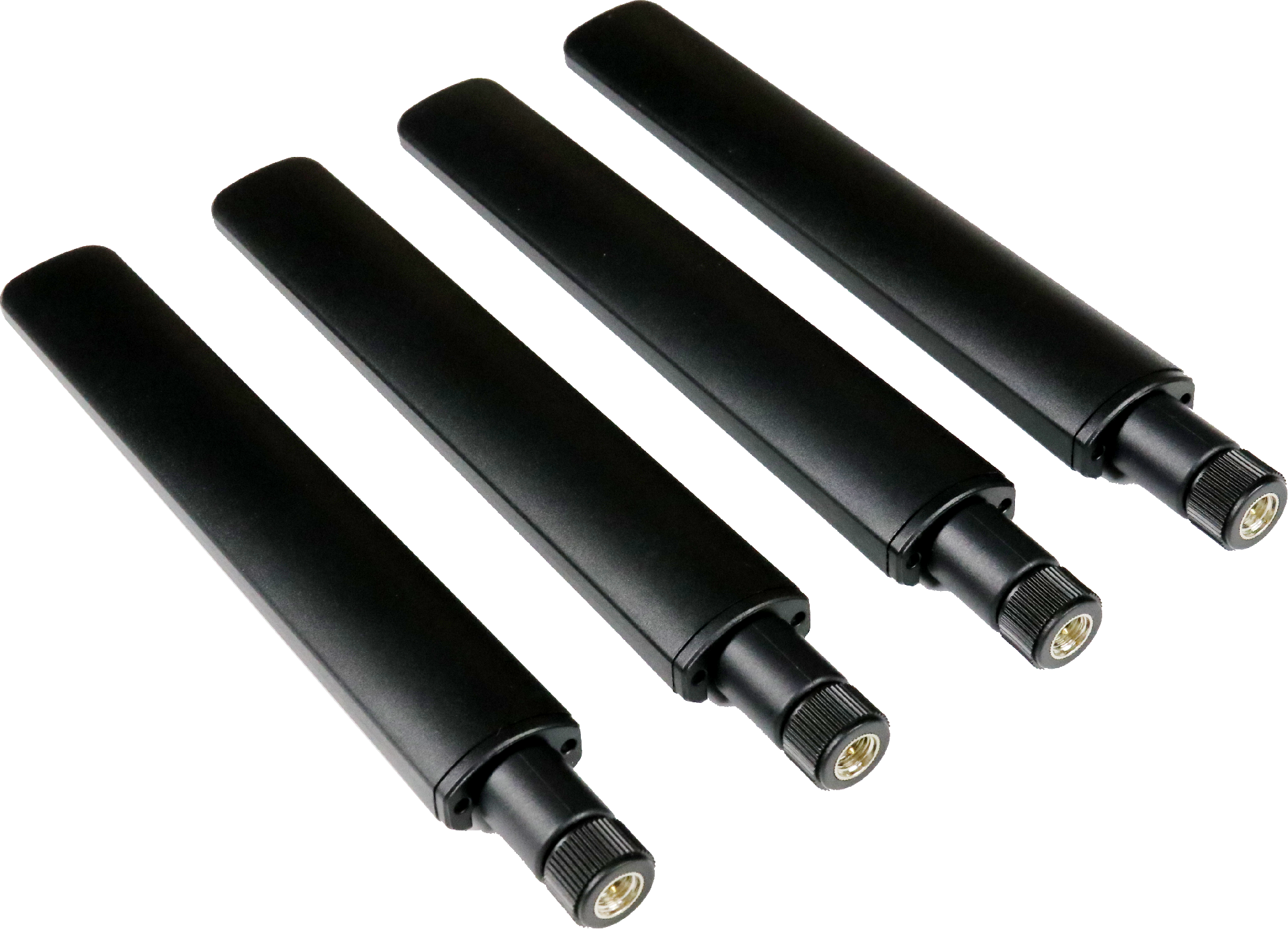

| Modem | 1×5GNRSA/NSAor1×4GLTE | NumberofAntennas | 4or2 |

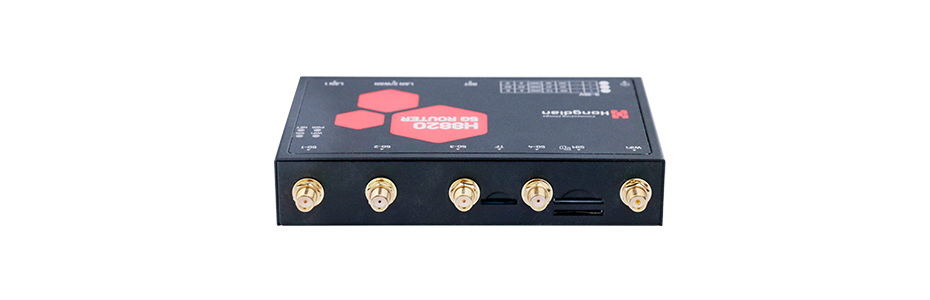

| SIM | 2×MiniSIM(2FF) | Connector | SMA-K |
| WirelessInterface |
| Standards | 802.11b/g/n/ac/ax,APorstationmodes | FrequencyBands | 2.4GHz&5.8GHz |
| Speed | 1500Mbps | Security | WEP,WPA,WPA2 |
| Encryption | 64/128AES,TKIP | Antennas | 1(onlyforWiFiversion) |
| Connector | RP-SMA-K |
| PeripheralInterface |

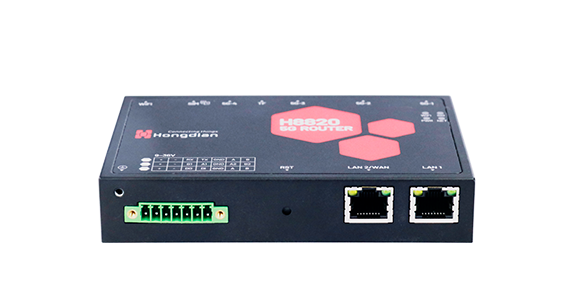

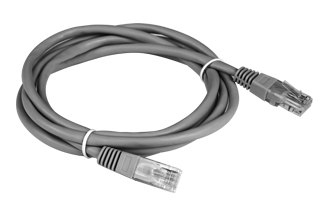

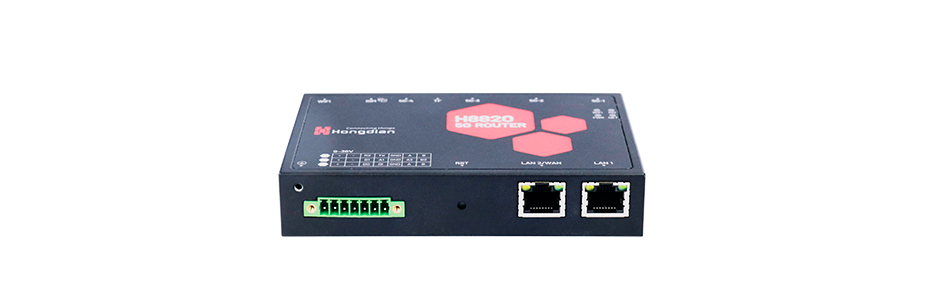

| Etehernet | 1×LAN10/100/1000Mbps+1×WAN/LAN10/100/1000Mbps,GigabitEthernet |
| Type | 1×RS-232+1×RS-485serialport | SocketForm | 1×7-pin3.5mmfemalesocket |
| SignalDefinition | RX,TX,GND(RS-232),A+,B-,GND(RS-485) | SDCard | TFCardSlot |
| Baudrate | RS-232(300-115200bps),RS-485(300-115200bps) |
| Software |
| AutoFail-over | Between:CellularandWAN,CellularandWi-Fi(stationmode),WANandWi-Fi(stationmode) |
| NetworkProtocols | PPP,PPPoE,TCP,UDP,IPv4,IPv6,SSL,DHCP,ICMP,NAT,HTTP,HTTPs,DNS,ARP,NTP,Telnet,SSH,DDNS,etc. |
| Routing | StaticRouting,Policyrouting,RIP,OSPFandBGP,etc |
| Firewall | NAT,PAT,DMZ,PortForwordIP/Domain/MACFilter,AccessControlList |
| VPN | PPTP/L2TP/GRE/IPSec/OpenVPN/DMVPN |
| RemoteManagement | HTTP,Telnet,SSH,SMS,SNMPV1/V2/V3,SNMPTRAP,HongdianWedoraCloudPlatform |
| SerialPortsFunction | Transparent,ModbusRTU,etc |
| IndustrialProtocol |
| CommonProtocols | OPC-UAClient&Server,BACNet/IPClient&Server,ModbusRTU/TCP/ASCII,ModbusMaster,BACnet/IP,Ethernet/IP,
IEC101/104,IEC61850-modbus,etc. |
| PLCSupport | Siemens,Mitsubishi,Omron,Allen-Bradley,Delta,Shineider,etc200+PLCs&Meters |
| CloudIntegration | MQTT,HTTPS,TCP/UDP,etc. | ConfigurationTool | GatewayManager |
| PowerSupplyandConsumption |
| Connector | 2pinsocket | VoltageInput | +9V~+36VDC |
| PowerConsumption | Idle:350mA@12VDC,Datatransceiving:1.3A@12VDC |
| Others |
| ResetButton | Yes | HardwareWatchdog | Yes |
| LEDIndicators | 4indicatorsforWiFi,SIG,NET,PWR |
| PhysicalCharacteristics |
| IngressProtection | IP40 | Housing&Weight | Metal,290g |

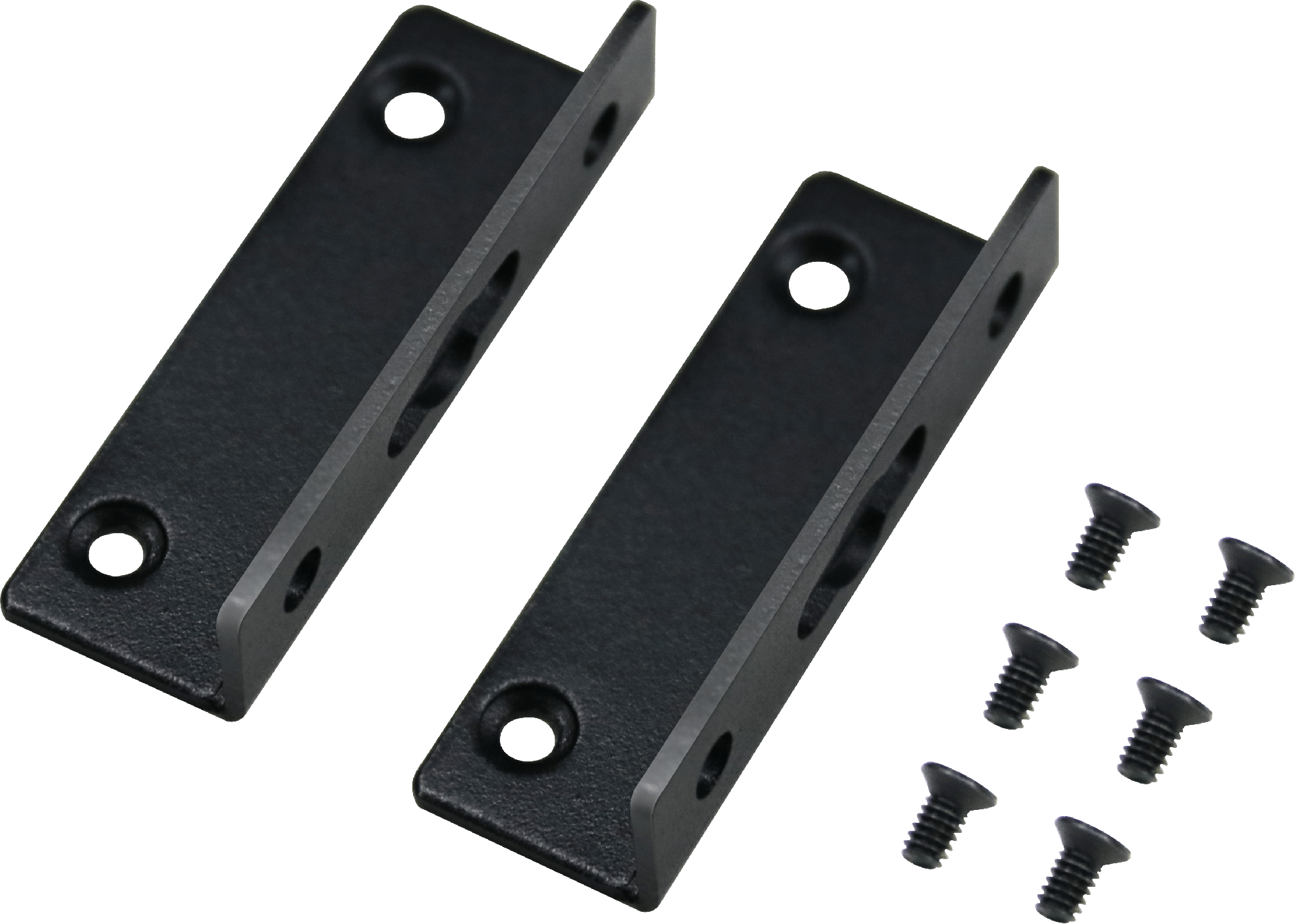

| Dimension | 137.0×83.0×24.0(mm) | Installations | Desktop,wallmountingandDINrailmounting |
| OperatingTemperature | -30~+70°C | StorageTemperature | -40~+85°C |
| Relative Humidity | 5 ~ 95% |
