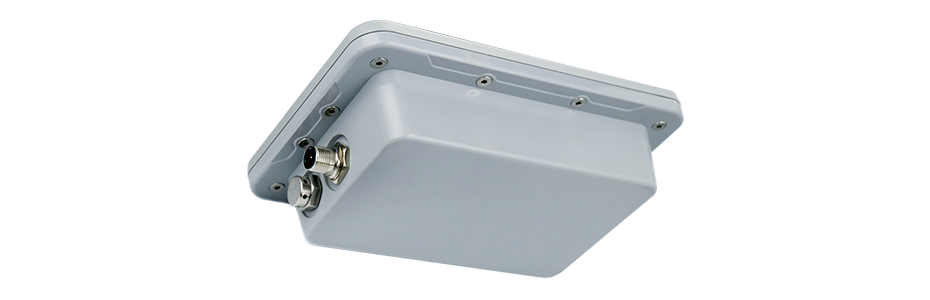

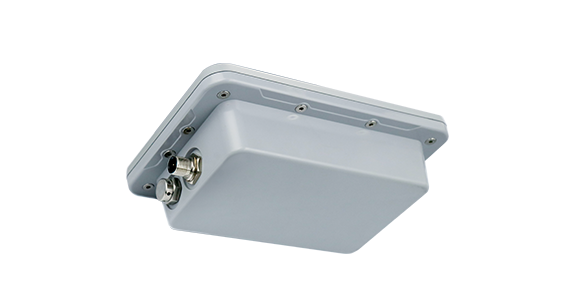

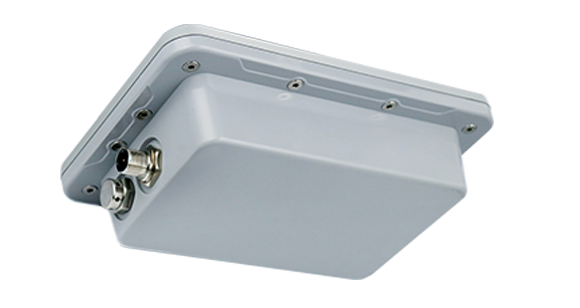

H1600-P Flat Panel Radar Level Meter

    • ±3 mm Measurement Accuracy
    • Non-Contact Measurement
    • Intelligent Power Management
    • Bluetooth & Remote Device Management
CONTACT US
Product Introduction
The H1600-P Flat Panel Radar Level Meter uses high-frequency microwave radar technology to obtain the distance and orientation from the water surface to the emission point by transmitting and receiving electromagnetic waves. It has a built-in water surface fluctuation filtering algorithm, featuring high precision, low power consumption and small size. It can connect to RTU/PLC via RS485, support wireless transmission in wiring-diŨ cult environments, and form an all-weather water level monitoring system.
Features Tech Specs Downloads
High-Precision Measurement
  • Adopts fluctuating water surface measurement model and high-precision signal processing algorithm
High Protection Level
  • IP68 protection, lightning protection and reverse connection protection design, suitable for various field environments
Low Power Consumption Design
  • Advanced power management strategy and scientific working mode switching
Debugging Without Computer
  • Can directly connect to the radar flow meter through mobile phone Bluetooth app or platform for end-to-end management, including parameter configuration, system upgrade, data polling, device status query, etc.
Non-Contact Measurement
  • Less affected by temperature gradient, pressure, air density, wind or other meteorological and environmental conditions, as well as sewage corrosion, sediment, etc
Water Level Range 10m/30m/45m/80m
Ranging Precision ±3mm
Communication Interface RS-485/Standard MODBUS-RTU Protocol
Baud Rate 9600~115200 bps, default 9600 bps
Attitude Angle Horizontal angle and roll angle precision ±1°;
resolution ±0.1°, built-in vertical angle correction
Operating Voltage +6~+32V DC, 12V DC recommended
Operating Temperature -30~+70℃
Product Size 190mm×130mm×50mm


File Name
Datasheet-H1600P Flat Panel Radar Level Meter
Download
VIEW ALL
PRODUCT DATASHEET
DOWNLOAD
Compatible Accessories
MORE ACCESSORIES
Related Products

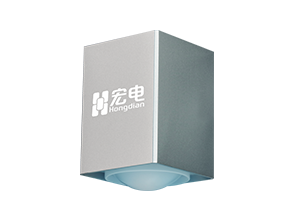

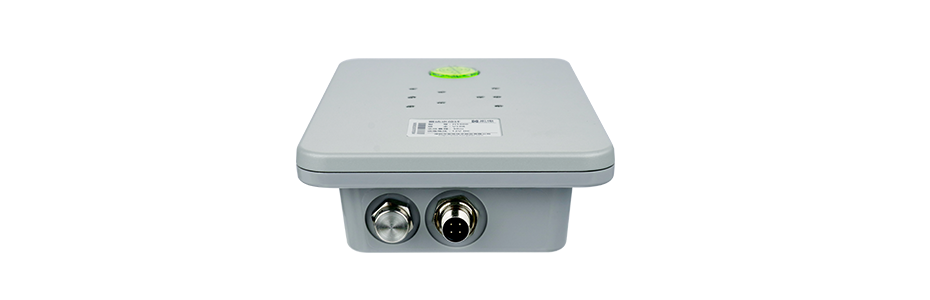

H1600 Radar Level Meter
    • 1 mm Measurement Resolution
    • Up to 80 m Measurement Range
    • Stable Measurement Under Vibration
    • Non-Contact Measurement
LEARN MORE

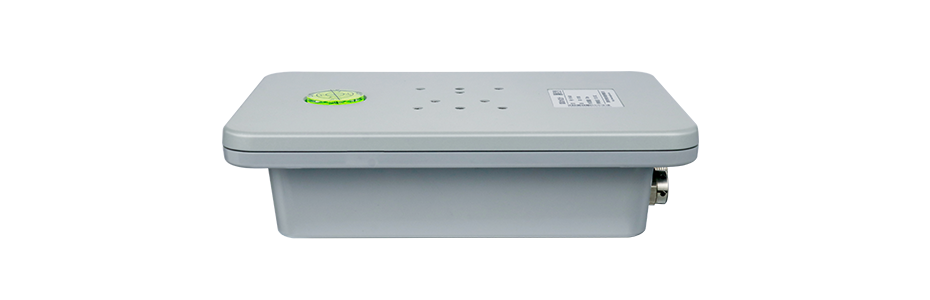

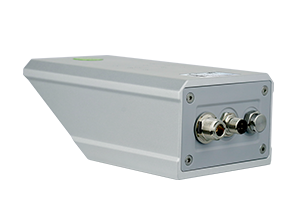

H1601 Radar Flow Meter
    • ±1% FS Measurement Accuracy
    • Multi-Parameter Data Acquisition
    • Non-Contact Measurement
    • Bluetooth & Remote Device Managemen
LEARN MORE

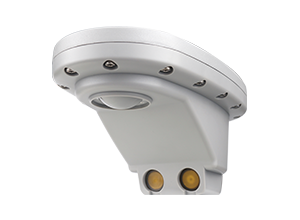

H1688-UR Radar Ultrasonic Flowmeter
    • Integrated 5 Sensors
    • ±1% FS Measurement Accuracy
    • Top-Mount Anti-Debris Design
    • Military-Grade Metal Aviation Connectors
LEARN MORE

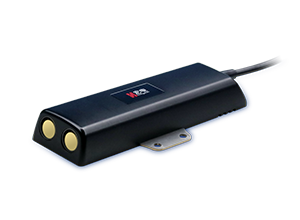

H1688 Acoustic Doppler Flow Meter
    • High-Accuracy Flow Measurement
    • Anti-Clogging Design
    • Flow Detection from 0.02 m/s
    • Forward/Reverse Installation
LEARN MORE

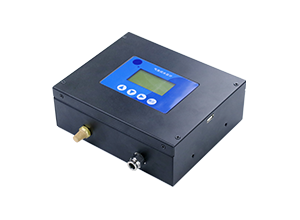

H1506 Bubbler Water Level Gauge
    • High Precision Measurement
    • On-site Screen Display and Operation
    • Wide Measuring Range
    • Built-in Solid-state Memory Chip
LEARN MORE

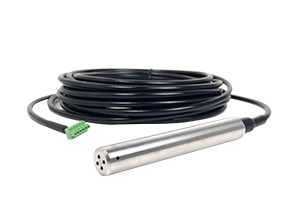

H5110-DY Pressure Water Level Meter
    • Algorithm Compensation
    • Low Power Consumption Design
    • High Protection Level
LEARN MORE

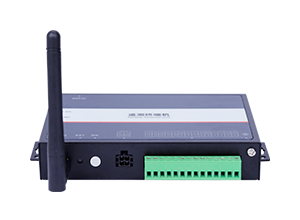

H5110-L Remote Terminal Unit
