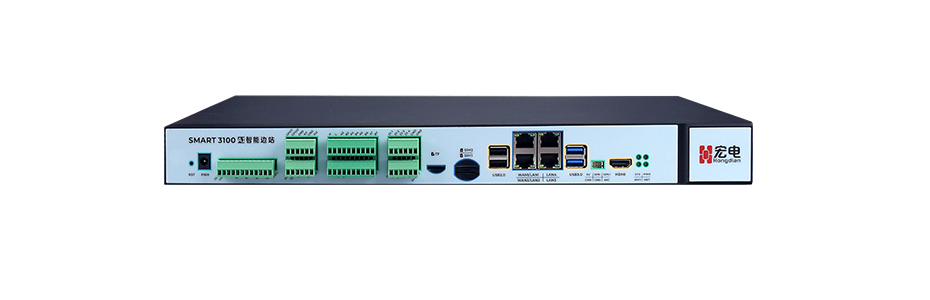

Smart 3100 5G Edge AI Gateway

6 TOPS AI computing power
4G/5G, Gigabit Ethernet, and Wi-Fi connectivity
Multiple communication interfaces
Supports mainstream PLC communication protocols

Product Introduction

Smart3100 is a powerful and reliable AIoT edge computing terminal powered by octa-core CPU , with 8GB RAM and 32GB eMMC for high-performance computing. Running on Linux, it supports flexible secondary development and integrates hardware encryption chips to ensure software and data security. With support for mainstream PLC protocols, Smart3100 enables efficient industrial data acquisition, processing, and cloud connectivity, while supporting Hongdian Sandora Cloud Platform management. Based on advanced deep learning algorithms, it provides real-time video analytics for applications such as smart energy, smart distribution rooms, smart retail, and intelligent security.

Features Tech Specs Downloads

AI-Powered, Open Platform

High-performance domestic octa-core CPU with 6 TOPS AI computing power and a rich AI algorithm library.
Open software architecture supporting Docker environments and secondary development.

Multi-Network Connectivity, Reliable Data Transmission

Supports 4G/5G, Gigabit Ethernet, and Wi-Fi connectivity.
Supports GPS positioning with highly available Internet access.
Wired/wireless redundancy and dual SIM backup ensure reliable data transmission.

Rich Interfaces, Flexible Adaptation for Various Scenarios

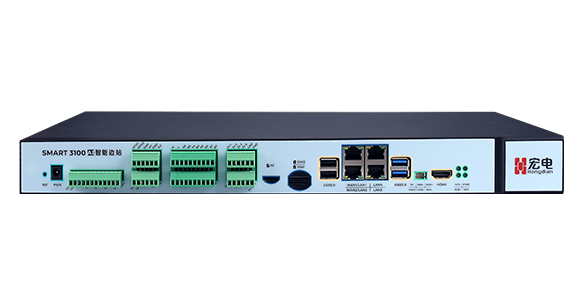

Multiple communication interfaces including RS232/485, four Ethernet ports, multiple USB ports, 4-channel AIO, and 8-channel DIO.

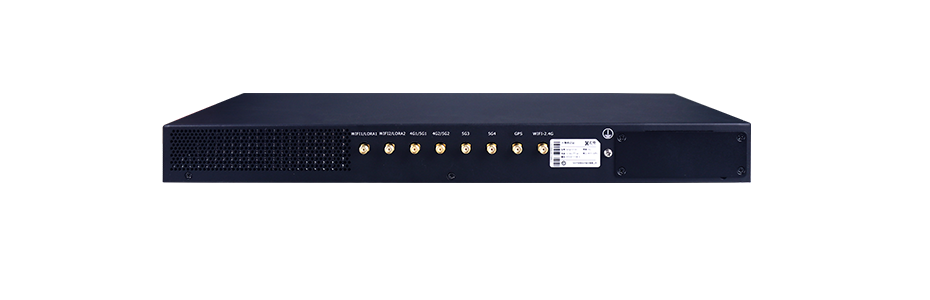

Eight-antenna design supporting multiple wireless connections, including LTE/Wi-Fi/LoRa/Bluetooth (expandable).
Supports 16-channel real-time video encoding/decoding and 8K video output.

Data Acquisition & Cloud Integration, Easy Deployment

Supports mainstream PLC communication protocols such as Modbus RTU/TCP, BACnet, Ethernet, and OPC-UA.
Compact 1U server form factor with rack-mount installation support for easy deployment.

Hardware
CPU	Rk3588
Memory	8GB/16GB
NPU	6Tops
Built-in storage	32GB/64GB/128GB
Cellular Interface
Modem	1 × LTE Cat4 or 1 × 5G NR SA/NSA
Number of Antennas	2 for LTE Cat4 or 4 for 5G
Connector	SMA-K
SIM	2×Mini SIM (2FF) (eSIM optional)
Wireless Interface
Standards	802.11b/g/n/ac/ax, AP or station modes
Security	WEP, WPA, WPA2
Frequency Bands	2.4 GHz & 5 GHz
Antennas	2
Connector	SMA-K
GNSS Interface
Number of Antennas	1 (optional)
Connector	SMA-K
Peripheral Interface
Ethernet	2 × LAN 10/100/1000Mbps + 2×WAN/LAN 10/100/1000Mbps, Ethernet
Serial	2 × RS-232 + 6 × RS-485
USB	2 × USB3.0, 2 × USB2.0
TF Card	1
Can	1
I/O	4 × Relay Switch, 8 × DI, 4 × AI, 4 × GPIO
Audio	Audio in/out
Display	1 × HDMI, maximum resolution 2K@30Hz, supports audio
Loud-speaker Port	1 × PH2.02 × 3P speaker header, power amplifier output (4ohm, 5W)
Software
Video Code	H.265/H.264/VP9, 4K@60fpsHD video decoding
Image processing	BMP, JPG, PNG, GIF
AI algorithm	Face application, fall application, flame application, people flow application, counting application, license plate application, area intrusion, petroleum work clothes application, phone call application, safety helmet application, reflective clothing application, smoke application, water gauge application, animal application, lighting application, mask application, motion detection.
Network	Muit-DNN, APN, VPDN, QoS, 5G LAN
Docker	Support docker container function
Power Supply and Consumption
Connector	DC-Jack
Voltage Input	DC 9~36V, including ACC
Power Consumption	Idle: 330mA@12V DC, Data transceiving: 750mA@12V DC
Others
Reset Button	Yes
Hardware Watchdog	Yes
LED Indicators	4 indicators for SYS, WiFi, NET, PWR
Physical Characteristics
Ingress Protection	IP43
Housing & Weight	Aluminum+ABS plastic, about 900g
Dimension	430.6 × 243.6 × 43.5(mm)
Installations	Rack-mounting
Operating Temperature	-30 ~ +70 °C
Storage Temperature	-40 ~ +80 °C
Relative Humidity	0~90%(no condensation)
