Smart Water

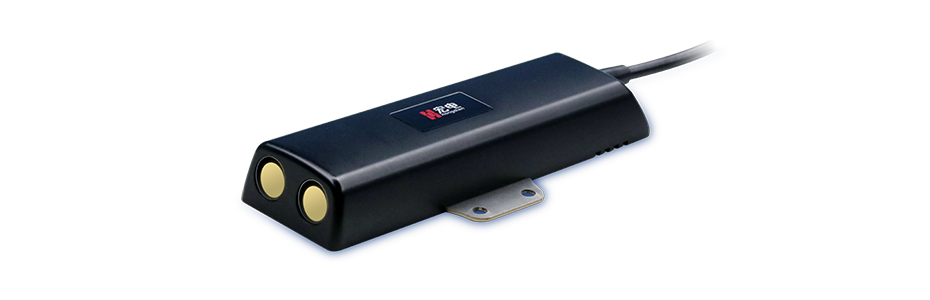

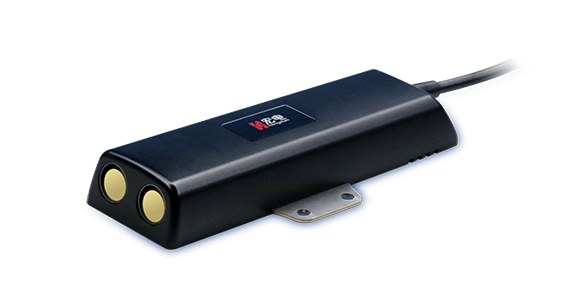

H1688 Acoustic Doppler Flow Meter

    • High-Accuracy Flow Measurement
    • Anti-Clogging Design
    • Flow Detection from 0.02 m/s
    • Forward/Reverse Installation
CONTACT US
Product Introduction
The H1688 Acoustic Doppler Flow Meter is a contact-type device, especially suitable for measuring fluids with turbidity ＞20mg/L and solid-liquid two-phase flow. It features low power consumption, high precision and wide range, can simultaneously measure flow velocity, water level, flow rate and water temperature, and meets high-precision and high-stability requirements.
Features Tech Specs Downloads
AI Edge Computing
  • Multiple cross-sectional hydrodynamic models and intelligent flow integration algorithms ensure flow measurement accuracy
Built-in Gauge Pressure Sensor
  • Perfectly solves the errors of absolute pressure sensors caused by different time periods, different regions and different weather changes, and is very suitable for drainage pipe network measurement environments
Low Power Consumption Design
  • Overall low-power design of embedded software and hardware, advanced power management strategy and scientific working mode switching
High Protection Level
  • IP68 protection level, with reverse connection protection, overvoltage protection and overcurrent protection
Support for Bidirectional Installation
  • Supports both downstream and upstream installation methods, which can effectively solve the drawbacks of traditional fixed methods such as easy garbage hanging and diŨcult maintenance
Anti-Clogging Design
  • Through the patented structural design, it effectively prevents sludge from clogging key measurement parts
Flow Measurement Range 0.02~10m/s, 0.03~10m/s, -7~+7m/s
Flow Measurement Precision ±1%±0.010m/s
Water Level Range 0~10m
Water Level Precision 0.1%F.S.
Temperature Measurement Range 0~60℃
Power Supply Voltage 12V DC
Product Size 200mm×65mm×32mm



File Name
Datasheet-H1688 Acoustic Doppler Flow Meter
Download
VIEW ALL
PRODUCT DATASHEET
DOWNLOAD
