Smart Water Series

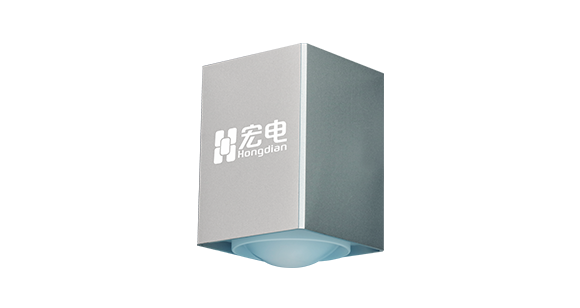

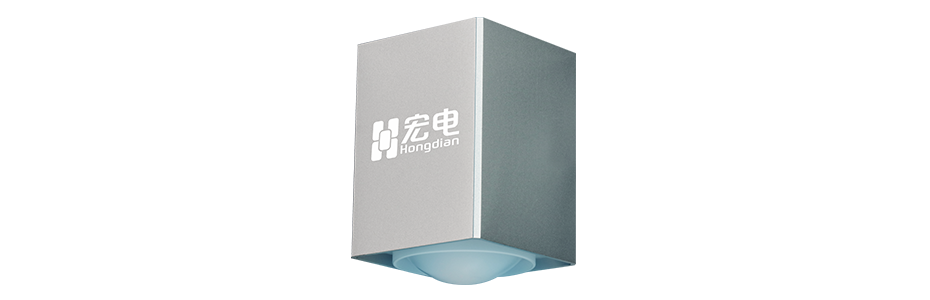

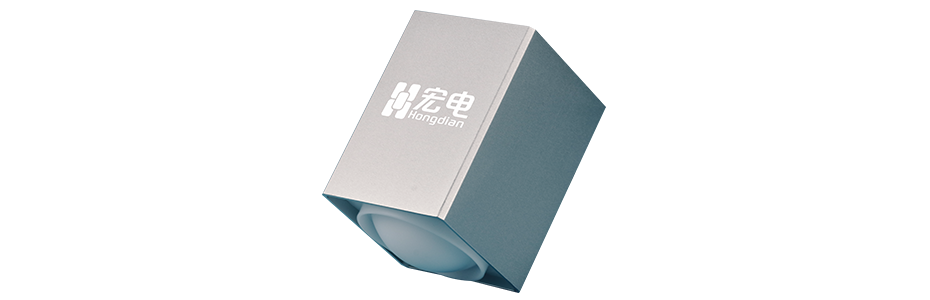

H1600 Radar Level Meter

1 mm Measurement Resolution
Up to 80 m Measurement Range
Stable Measurement Under Vibration
Non-Contact Measurement

Product Introduction

The H1600 Radar Level Meter uses high-frequency microwave radar technology to obtain the distance and orientation from the water surface to the emission point by transmitting and receiving electromagnetic waves. It has a built-in water surface fluctuation filtering algorithm, featuring high precision, low power consumption and small size. It can connect to RTU/PLC via RS485, support wireless transmission in

wiring-difficult environments, and form an all-weather water level monitoring system.

Features Tech Specs Downloads

High-Precision Measurement

Based on high-frequency microwave radar technology, equipped with a built-in microarray radar antenna, adopting a fluctuating water surface measurement model and high-precision signal processing algorithm.

Attitude Sensor

Built-in attitude sensor combined with debounce algorithm, which can maintain stable measurement even when the product shakes slightly due to external factors (such as wind, rain, etc.).

Non-Contact Measurement

Less affected by temperature gradient, pressure, air density, wind or other meteorological and environmental conditions, as well as pollution corrosion, sediment, etc.

Low Power Consumption Design

Advanced power management strategy and scientific working mode switching.

High Protection Level

IP68/IPX9 submersible protection level, with lightning protection and reverse connection protection design, suitable for various field environments.

Water Level Range	10m/30m/45m/80m
Resolution	1mm/3mm
Communication Interface	RS485
Communication Protocol	Modbus-RTU
Operating Current	20mA@12VDC
Operating Voltage	12V DC
Operating Temperature	-30~+70℃
Product Size	56mm×56mm×80mm

File Name

Datasheet-H1600 Radar Level Meter

Download

VIEW ALL

PRODUCT DATASHEET

DOWNLOAD

Compatible Accessories

MORE ACCESSORIES

Related Products

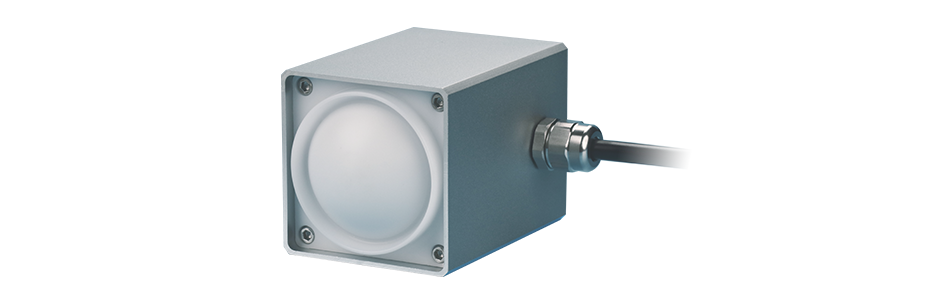

H1600-P Flat Panel Radar Level Meter
