Smart Water

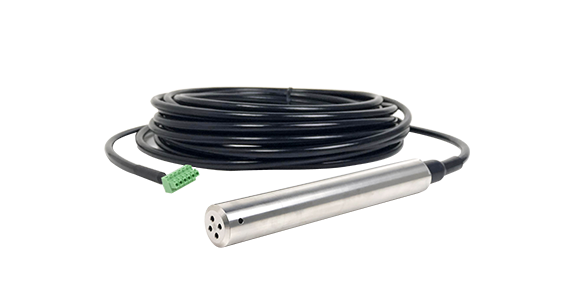

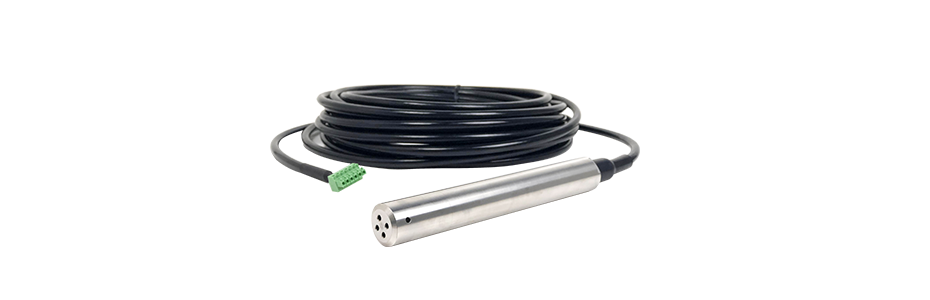

H5110-DY Pressure Water Level Meter

    • Algorithm Compensation
    • Low Power Consumption Design
    • High Protection Level
CONTACT US
Product Introduction
The H5110-DY Pressure-Type Water Level Meter is a submersible static pressure water level measuring instrument. It achieves high-precision water level measurement through advanced mixed-signal processing technology and unique compensation methods, supports full-range digital linear calibration, and is suitable for water level monitoring in scenarios such as groundwater, surface water, reclaimed water, and drainage pipe networks.
Features Tech Specs Downloads
Algorithm Compensation
  • Adopts mixed-signal microprocessor and high-order fitting algorithm to achieve high-precision compensation
Cable Material
  • PVC or PU
Low Power Consumption Design
  • Operating current not higher than 4mA
High Protection Level
  • Fully sealed structure with 316L stainless steel (or titanium alloy) shell, protection level up to IP68
Water Level Range 0~10m…100m (customizable)
Measurement Precision 0.1% F.S. (customizable)
Operating Current ＜4mA
Power Supply Voltage 12VDC
Overload Capacity 2X F.S.
Compensation Temperature 0~50ºC
Storage Temperature -40~+125ºC
Operating Temperature -10~+70ºC
Communication Protocol Rs485 Standard MODBUS-RTU Protocol
