Smart Water

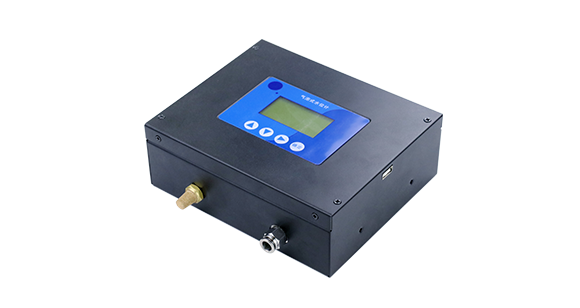

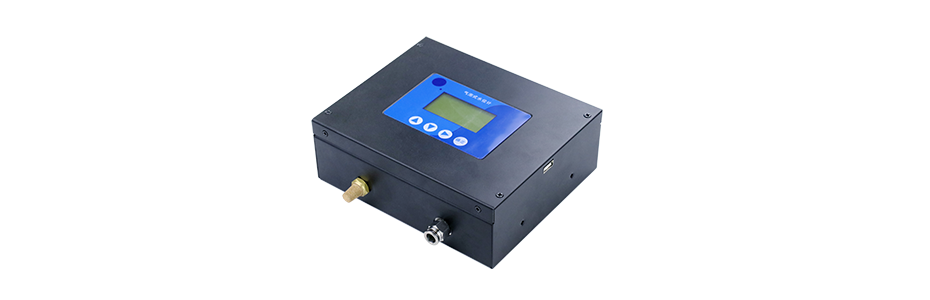

H1506 Bubbler Water Level Gauge

    • High Precision Measurement
    • On-site Screen Display and Operation
    • Wide Measuring Range
    • Built-in Solid-state Memory Chip
CONTACT US
Product Introduction
The H1506 Bubbler Water Level Gauge is a water level measuring device, an indirect measuring device based on pressure sensor and air guide pipe. It is mainly used for water level measurement in reservoirs, rivers, lakes, groundwater, wetlands, tailings ponds, sewage treatment plants, water plants, drainage pipelines and other occasions. It can well adapt to usage environments such as silting, with simple installation and easy operation, and fully meet users' requirements for high precision and high stability of the product.
Features Tech Specs Downloads
High Precision Measurement
  • Resolution up to 1mm, enabling millimeter-level water level monitoring
On-site Screen Display and Operation
  • Support viewing current measurement data, historical data and relevant parameters via the screen; parameters can be modified through buttons and display screen
Wide Measuring Range
  • Optional wide-range products with 0~20m/50m/70m
Built-in Solid-state Memory Chip
  • The device can store no less than 100,000 sets of measurement data locally
Low Power Consumption Design
  • Collaborative optimization of embedded software and hardware, average working current <18mA (excluding air pump), suitable for solar power supply scenarios
Convenient U Disk Upgrade
  • USB interface supports U disk upgrade, data import and export
Water Level Range 0~20m/50m/70m
Water Level Change Rate ＜60cm/min
Resolution 1mm
Air Pipe Diameter 6mm/8mm
Supply Voltage 12V DC
Power Protection Reverse connection protection, over-voltage and over-current protection, surge protection
Operating Temperature -10~+60℃
Storage Temperature -40~+80℃



File Name
Datasheet-H1506 Bubbler Water Level Gauge
